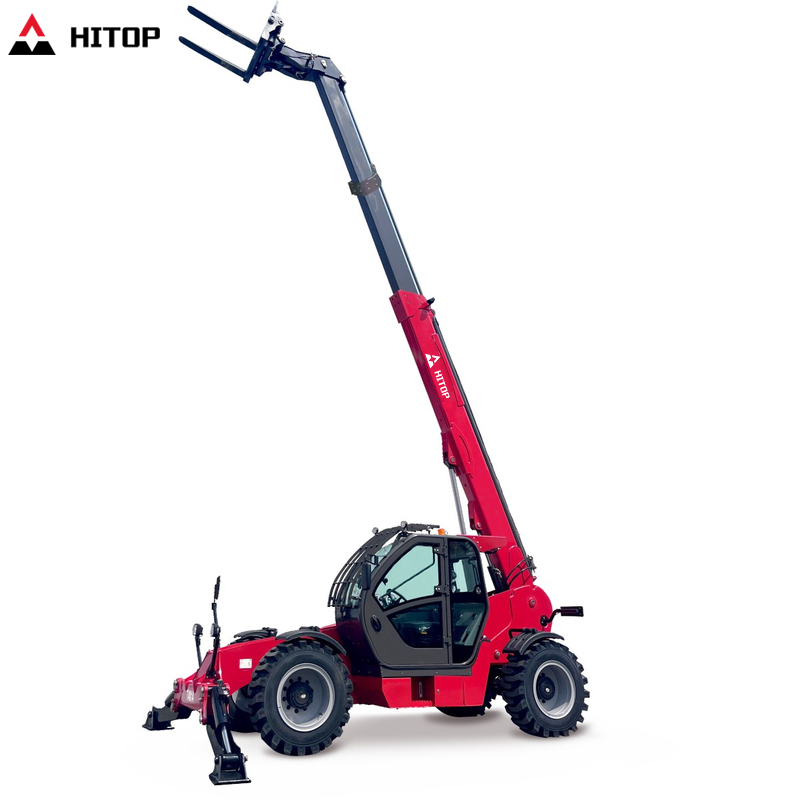

The XC4014 is the step-up option when the XC4010 does not provide enough height. It is well suited for placing materials onto scaffolding, upper floors, steel structures and elevated platforms where a low or mid-height telehandler would require extra handling steps. The 13000 kg unladen weight and 440/80-24 tubeless tires also give it a more substantial high-reach specification than the compact models.
Select the XC4014 for customers who want a 4-ton machine but need 14 m class reach. It gives contractors and rental fleets a clear high-reach option before moving into the longer 17.6 m XC4018.
| XC4014 Telehandler Technical Specifications | ||
| Capacities | Max. capacity | 4000 kg |
| Max. lifting height | 13.8 m | |
| Max. outreach | 7.0 m | |
| Weight and dimensions | Overall length to carriage | 6.4 m |
| Length to face of forks | 7.62 m | |
| Min transport size | 5.6 m | |
| Overall width | 2.35 m | |
| Track width | 1.95 m | |
| Overall height | 2.55 m | |
| Wheelbase | 3.6 m | |
| Ground clearance | 0.38 m | |
| Overall cab width | 0.84 m | |
| Tilt-up angle | 12 ° | |
| Tilt-down angle | 114 ° | |
| External turning radius(over tyres) | 4.1 m | |
| Unladen weight(with fork) | 13000 kg | |
| Tires type | Tubeless | |
| Standard tires | 440/80-24 | |
| Forks length/ width/ section | 1220 mm x 125 mm / 50 mm | |
| Performances | Lifting | 16 s |
| Lowering | 12.4 s | |
| Extension | 17.3 s | |
| Retraction | 13 s | |
| Crowd | 4.8 s | |
| Dump | 4.0 s | |
| Engine | Engine brand | Yuchai |
| Engine norm | National II | |
| Max. fuel sulphur content | 5000 ppm | |
| Engine model | YCD4J22T-125 | |
| Number of cylinders / Capacity of cylinders | 4 - 4400 cm³ | |
| I.C. Engine power rating - Power | 114 Hp / 85 kW | |
| Max. torque / Engine rotation | 400 Nm @ 1400 rpm | |
| Drawbar pull (Laden) | 9930 daN | |
| Transmission | Transmission type | Torque converter |
| Number of gears (forward / reverse) | 4 / 4 | |
| Max. travel speed | 40 km/h | |
| Parking brake | Automatic air-cut brake | |
| Hydraulics | Hydraulic pump type | Gear pump |
| Hydraulic flow / Pressure | 167 l/min | |
| Tank capacities | Engine oil | 5.5L |
| Hydraulic oil | 70L | |
| Fuel tank | 95L | |
| Noise and vibration | Noise at driving position (LpA) | 79 dB |
| Noise to environment (LwA) | 106 dB | |
| Vibration on hands / arms | < 2.50 m/s² | |
| Miscellaneous | Steering wheels (front / rear) | 2 / 2 |
| Drive wheels (front / rear) | 2 / 2 | |
| Safety cab homologation | FOPS level 2 cab | |
