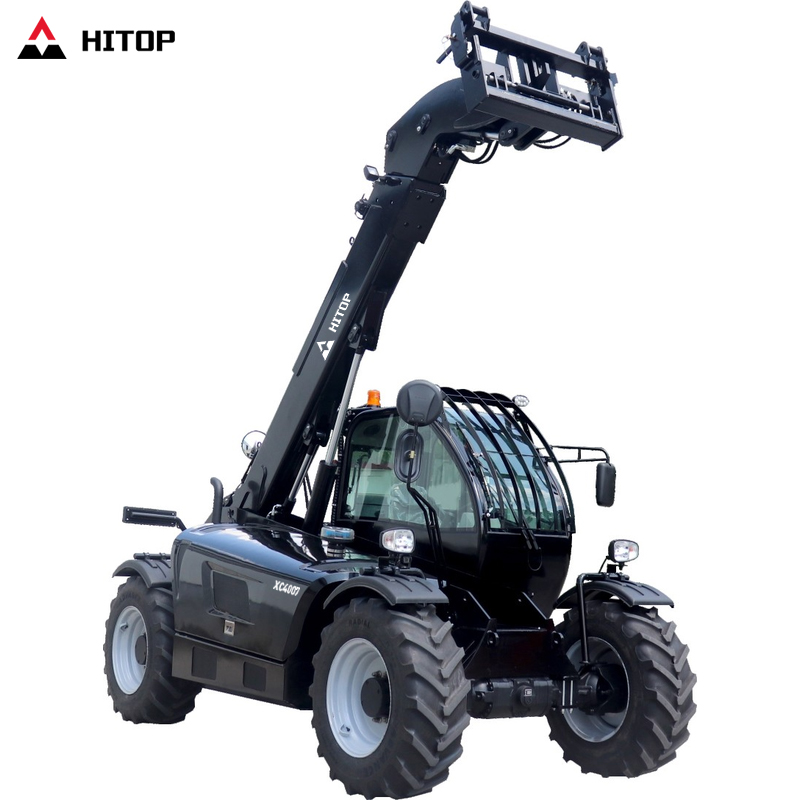

| XC4007 Telehandler Technical Specifications | ||
| Capacity | Max. capacity | 4000 kg |
| Max. lifting height | 7.0 m | |
| Max. outreach | 3.2 m | |
| Weight and dimensions | Overall length to carriage | 4.65 m |
| Length to face of forks | 5.87 m | |
| Min transport size | 4.35 m | |
| Overall width | 2.2 m | |
| Track width | 1.78 m | |
| Overall height | 2.55 m | |
| Wheelbase | 3.15 m | |
| Ground clearance | 0.35 m | |
| Overall cab width | 0.84 m | |
| Tilt-up angle | 12 ° | |
| Tilt-down angle | 114 ° | |
| External turning radius(over tyres) | 4.25 m | |
| Unladen weight(with fork) | 8100 kg | |
| Tires type | Tubeless | |
| Standard tires | 400/70-24 | |
| Forks length/ width/ section | 1220 mm x 125 mm / 50 mm | |
| Performances | Lifting | 10 s |
| Lowering | 7 s | |
| Extension | 12 s | |
| Retraction | 8.6 s | |
| Crowd | 4.8 s | |
| Dump | 3.4 s | |
| Engine | Engine brand | Yuchai |
| Engine norm | National II | |
| Max. fuel sulphur content | 5000 ppm | |
| Engine model | YCD4M22T-105 | |
| Number of cylinders / Capacity of cylinders | 4 - 4400 cm³ | |
| I.C. Engine power rating - Power | 114 Hp / 85 kW | |
| Max. torque / Engine rotation | 400 Nm @ 1400 rpm | |
| Drawbar pull (Laden) | 10000 daN | |
| Transmission | Transmission type | Torque converter |
| Number of gears (forward / reverse) | 2 / 2 | |
| Max. travel speed | 35 km/h | |
| Parking brake | Automatic air-cut brake | |
| Hydraulic pump type | Gear pump | |
| Hydraulic flow / Pressure | 100 l/min | |
| Tank capacities | Engine oil | 5.5L |
| Hydraulic oil | 70L | |
| Fuel tank | 95L | |
| Noise and vibration | Noise at driving position (LpA) | 82 dB |
| Noise to environment (LwA) | 105 dB | |
| Vibration on hands / arms | < 2.50 m/s² | |
| Miscellaneous | Steering wheels (front / rear) | 2 / 2 |
| Drive wheels (front / rear) | 2 / 2 | |
| Safety cab homologation | FOPS level 2 cab | |
