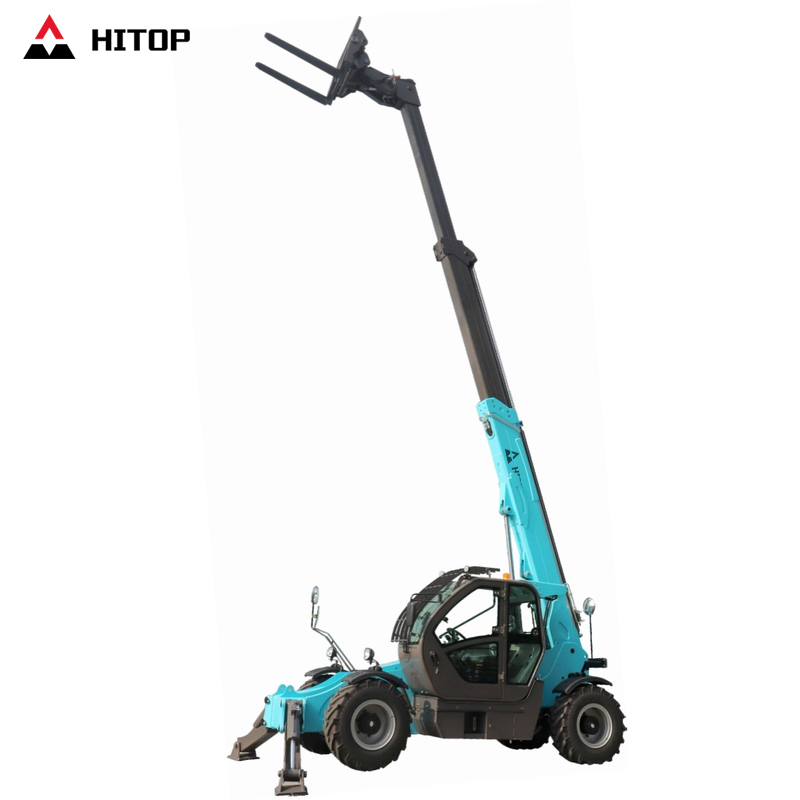

The XC3510 fits jobs where a compact low-rise telehandler cannot reach far enough, but an 18 m long-boom machine would be excessive. It works well for loading materials to mid-level structures, handling bales and pallets on farms, and supporting contractors that need one machine for varied site movement. Its 3500 kg capacity gives useful load margin while keeping the model below the heavier 4-ton and 5-ton classes.
The XC3510 works as a balanced 3.5-ton / 10 m class machine. It is especially suitable for buyers searching for a 10 m telehandler, 3.5 ton telescopic forklift or rental-ready telehandler that covers common medium-height tasks without stepping into a larger high-reach platform.
| XC3510 Telehandler Technical Specifications | ||
| Capacity | Max. capacity | 3500 kg |
| Max. lifting height | 10.0 m | |
| Max. outreach | 6.1 m | |
| Weight and dimensions | Overall length to carriage | 5.8 m |
| Length to face of forks | 7.0 m | |
| Min transport size | 5.05 m | |
| Overall width | 2.2 m | |
| Track width | 1.78 m | |
| Overall height | 2.55 m | |
| Wheelbase | 3.15 m | |
| Ground clearance | 0.35 m | |
| Overall cab width | 0.84 m | |
| Tilt-up angle | 12 ° | |
| Tilt-down angle | 114 ° | |
| External turning radius(over tyres) | 4.25 m | |
| Unladen weight(with fork) | 9500 kg | |
| Tires type | Pneumatic | |
| Standard tires | 16/70 -20 | |
| Forks length/ width/ section | 1220 mm x 125 mm / 50 mm | |
| Performances | Lifting | 10 s |
| Lowering | 7 s | |
| Extension | 12 s | |
| Retraction | 8.6 s | |
| Crowd | 4.8 s | |
| Dump | 3.4 s | |
| Engine | Engine brand | Yuchai |
| Engine norm | National II | |
| Max. fuel sulphur content | 5000 ppm | |
| Engine model | YCD4M22T-105 | |
| Number of cylinders / Capacity of cylinders | 4 - 4400 cm³ | |
| I.C. Engine power rating - Power | 103 Hp /77.3 kW | |
| Max. torque / Engine rotation | 400 Nm @ 1400 rpm | |
| Drawbar pull (Laden) | 10000 daN | |
| Transmission | Transmission type | Torque converter |
| Number of gears (forward / reverse) | 4 / 4 | |
| Max. travel speed | 35 km/h | |
| Parking brake | Automatic air-cut brake | |
| Hydraulics | Hydraulic pump type | Gear pump |
| Hydraulic flow / Pressure | 100 l/min | |
| Tank capacities | Engine oil | 5.5L |
| Hydraulic oil | 70L | |
| Fuel tank | 95L | |
| Noise and vibration | Noise at driving position (LpA) | 82 dB |
| Noise to environment (LwA) | 105 dB | |
| Vibration on hands / arms | < 2.50 m/s² | |
| Miscellaneous | Steering wheels (front / rear) | 2 / 2 |
| Drive wheels (front / rear) | 2 / 2 | |
| Safety cab homologation | FOPS level 2 cab | |
