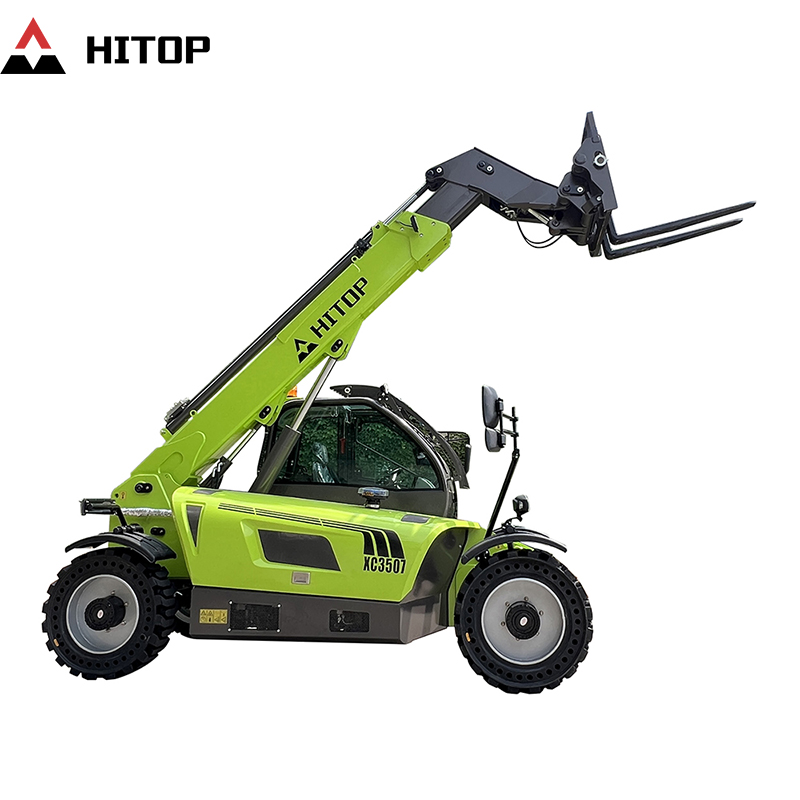

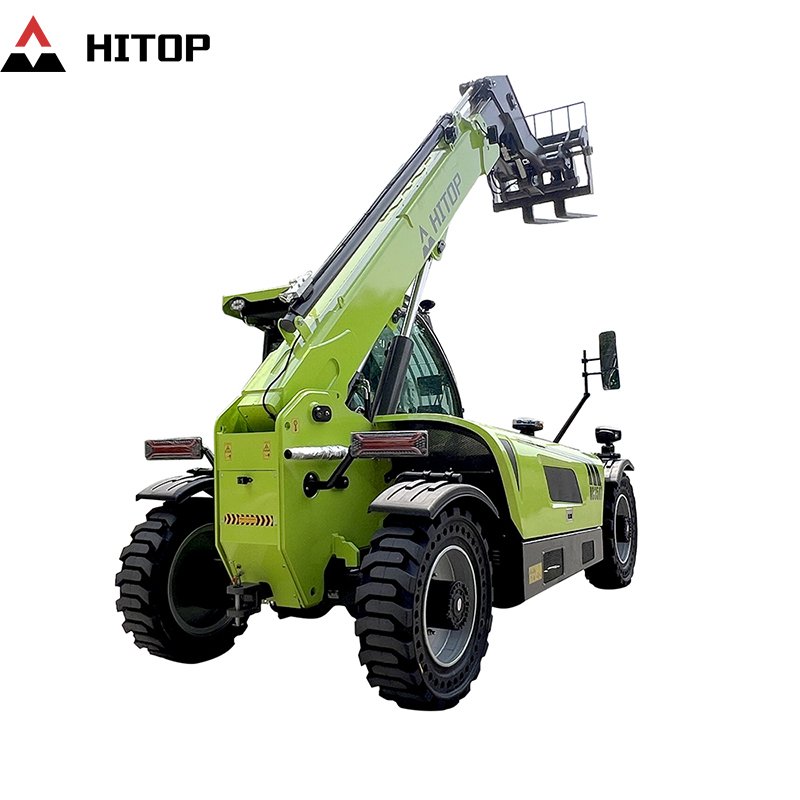

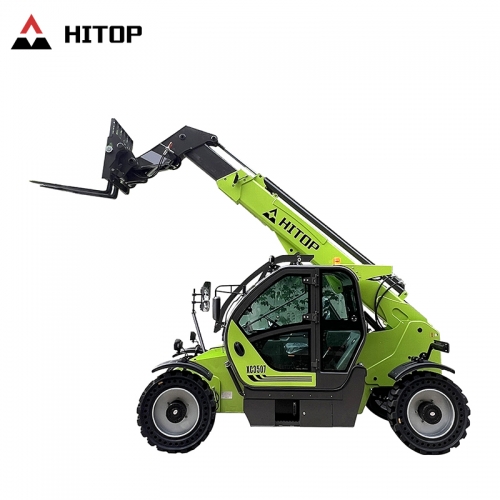

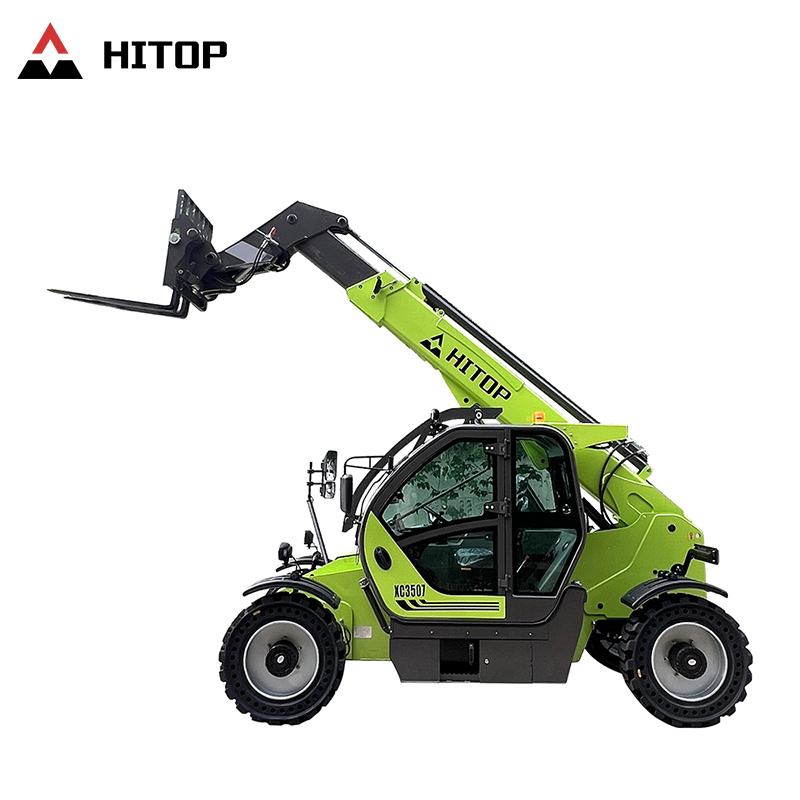

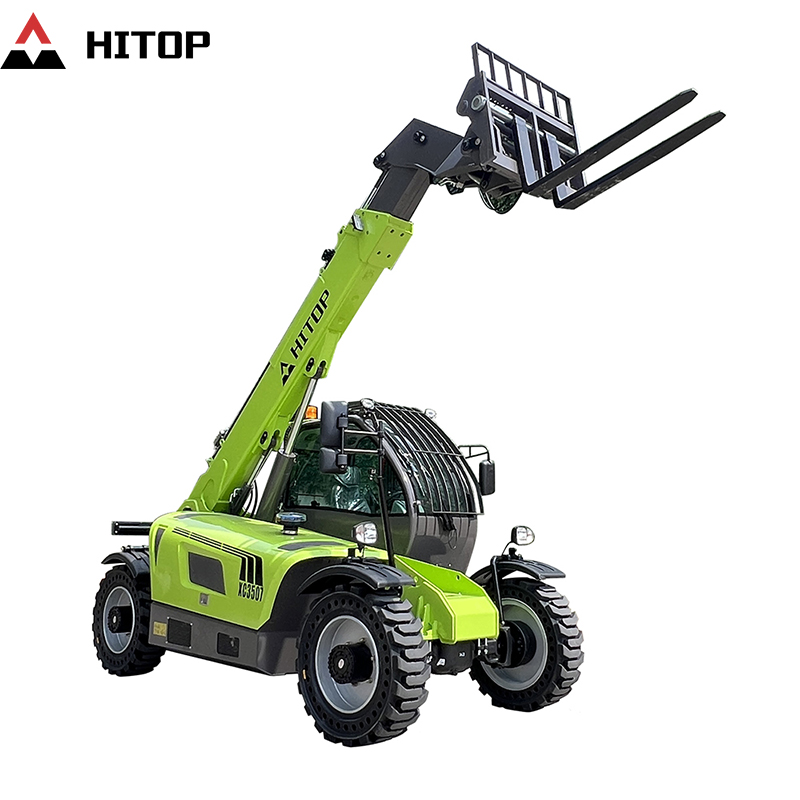

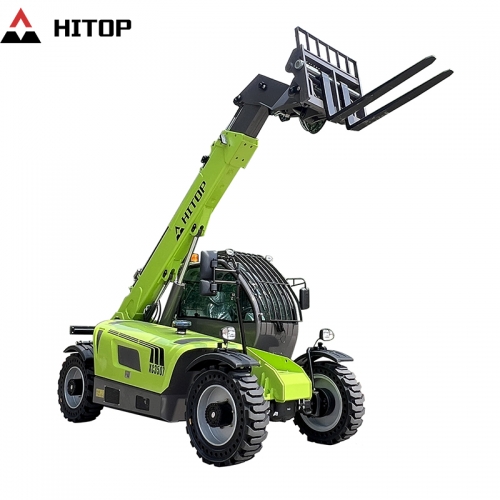

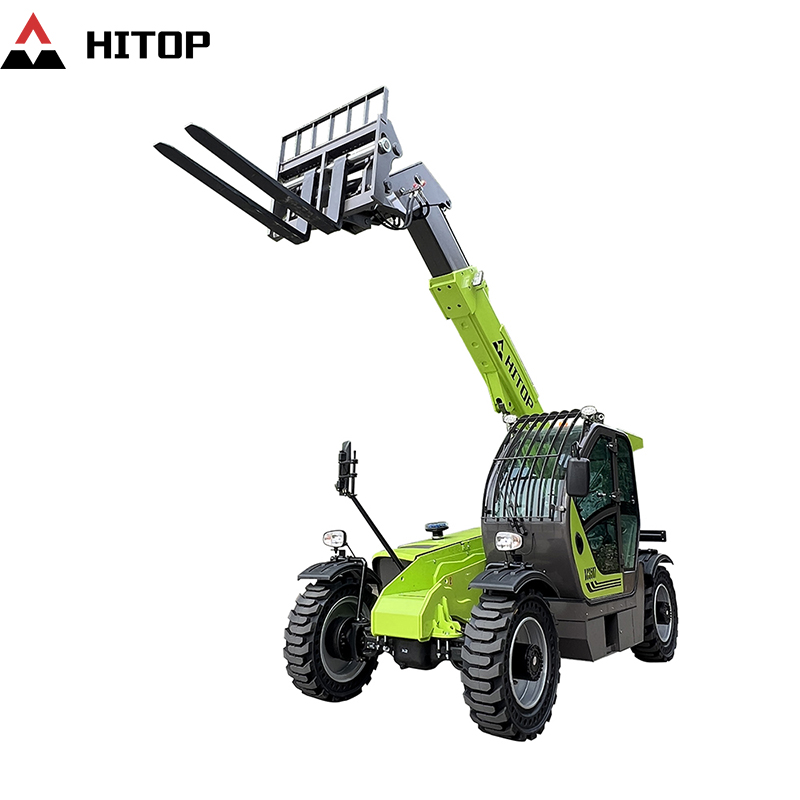

Compact design meets heavy-duty performance. 3.5-ton capacity and 7-meter reach engineered for the most demanding environments.
Core Stats:
3,500 kg Rated Capacity
7.0 m Max. Lifting Height
103 Hp / 76 kW Engine Power
Compact & Agile Design
With an overall width of only 2.2 meters and an external turning radius of 4.25 meters, the XC3507 is built for high-efficiency operation in narrow warehouses, tunnels, and crowded construction sites.
Superior Power System
Equipped with a high-torque Yunnei 76kW engine, providing robust power for lifting and travel. The 35km/h travel speed ensures quick transitions between work zones.
Uncompromised Safety
Our FOPS Level 2 Safety Cab offers wide-angle visibility and professional-grade protection for the operator, ensuring confidence during high-altitude maneuvers.
Multi-Functional Flexibility
Beyond standard forks, the XC3507 supports a wide range of attachments for diverse applications in agriculture (hay handling), construction (material loading), and logistics.
Technical Specifications
| Category |
Specification |
Data |
| Performance |
Max. Capacity |
3,500 kg |
| Max. Lifting Height |
7.0 m |
| Max. Outreach |
3.2 m |
| Engine |
Brand / Model |
Yunnei YN38GBZ |
| Power |
76 kW / 103 Hp |
| Max. Torque |
400 Nm @ 1400 rpm |
| Dimensions |
Overall Width |
2.2 m |
| Overall Height |
2.55 m |
| Turning Radius |
4.25 m |
| Unladen Weight |
7,600 kg |
| Drive |
Transmission |
Torque Converter (2F/2R) |
| Travel Speed |
35 km/h |
Why Choose HITOP XC3507?
Precision Control: Advanced hydraulics (100 l/min) for smooth extension and retraction.
Durable Build: Heavy-duty axles with immersed multi-disc braking for long-term reliability.
Ease of Maintenance: Optimized engine layout for quick daily checks.
