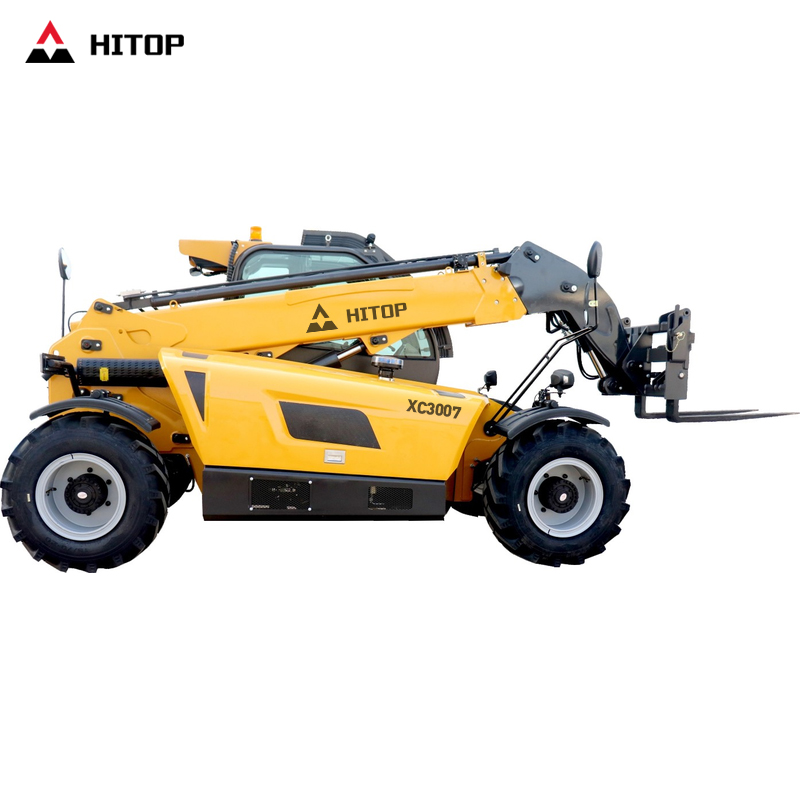

The XC3007 telescopic boom forklift combines forklift handling, boom reach and rough-terrain mobility in one machine. It is suitable for contractors, farms, rental companies and industrial users who need to lift and position materials beyond the capability of a standard forklift. The XC Series layout focuses on practical operation, stable handling and easy daily use. Operators can use the machine for palletized materials, construction supplies, agricultural loads and outdoor yard handling.
For buyers comparing telehandlers, the XC3007 provides a clear specification package: 3000 kg maximum capacity, 7.0 m maximum lift height, 3.2 m maximum outreach, 35 km/h maximum travel speed and YN38GBZ engine model. Contact HITOP to confirm attachments, configuration and quotation for your market.
| XC3007 Telehandler Technical Specifications | ||
| Capacity | Max. capacity | 3000 kg |
| Max. lifting height | 7.0 m | |
| Max. outreach | 3.2 m | |
| Weight and dimensions | Overall length to carriage | 4.65 m |
| Length to face of forks | 5.87 m | |
| Min transport size | 4.35 m | |
| Overall width | 2.2 m | |
| Track width | 1.78 m | |
| Overall height | 2.55 m | |
| Wheelbase | 3.15 m | |
| Ground clearance | 0.35 m | |
| Overall cab width | 0.84 m | |
| Tilt-up angle | 12 ° | |
| Tilt-down angle | 114 ° | |
| External turning radius(over tyres) | 4.25 m | |
| Unladen weight(with fork) | 7600 kg | |
| Tires type | Pneumatic | |
| Standard tires | 16/70 -20 | |
| Forks length/ width/ section | 1220 mm x 125 mm / 50 mm | |
| Performances | Lifting | 10 s |
| Lowering | 7 s | |
| Extension | 12 s | |
| Retraction | 8.6 s | |
| Crowd | 4.8 s | |
| Dump | 3.4 s | |
| Engine | Engine norm | National II |
| Max. fuel sulphur content | 5000 ppm | |
| Engine model | YN38GBZ | |
| Number of cylinders / Capacity of cylinders | 4 - 4400 cm³ | |
| I.C. Engine power rating - Power | 103 Hp / 76 kW | |
| Max. torque / Engine rotation | 400 Nm @ 1400 rpm | |
| Drawbar pull (Laden) | 10000 daN | |
| Transmission | Transmission type | Torque converter |
| Number of gears (forward / reverse) | 2 / 2 | |
| Max. travel speed | 35 km/h | |
| Parking brake | Automatic air-cut brake | |
| Hydraulics | Hydraulic pump type | Gear pump |
| Hydraulic flow / Pressure | 100 l/min | |
| Tank capacities | Engine oil | 5.5L |
| Hydraulic oil | 70L | |
| Fuel tank | 95L | |
| Noise and vibration | Noise at driving position (LpA) | 82 dB |
| Noise to environment (LwA) | 105 dB | |
| Vibration on hands / arms | < 2.50 m/s² | |
| Miscellaneous | Steering wheels (front / rear) | 2 / 2 |
| Drive wheels (front / rear) | 2 / 2 | |
| Safety cab homologation | FOPS level 2 cab | |
