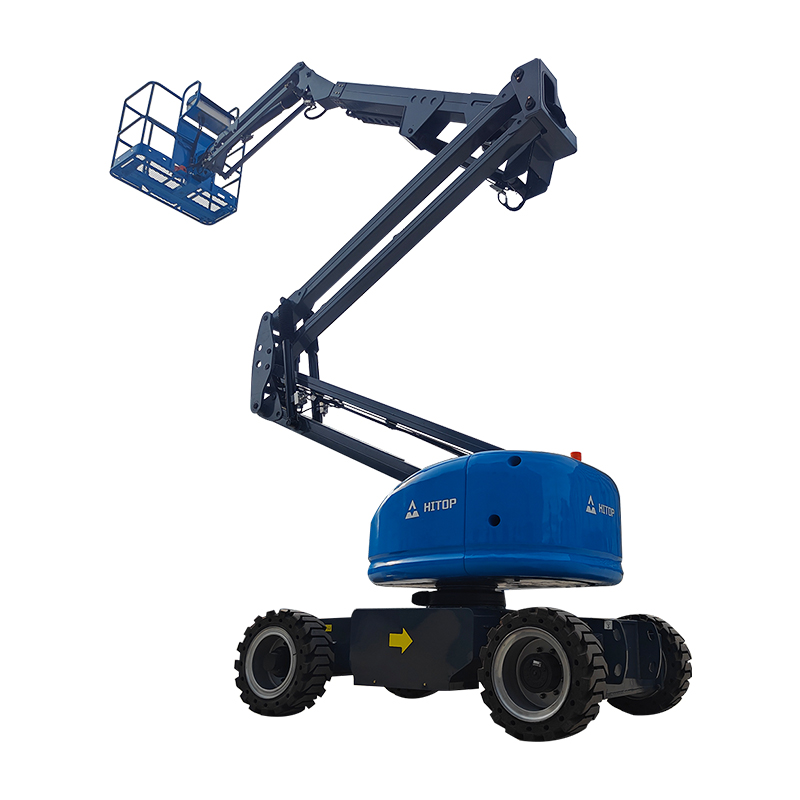

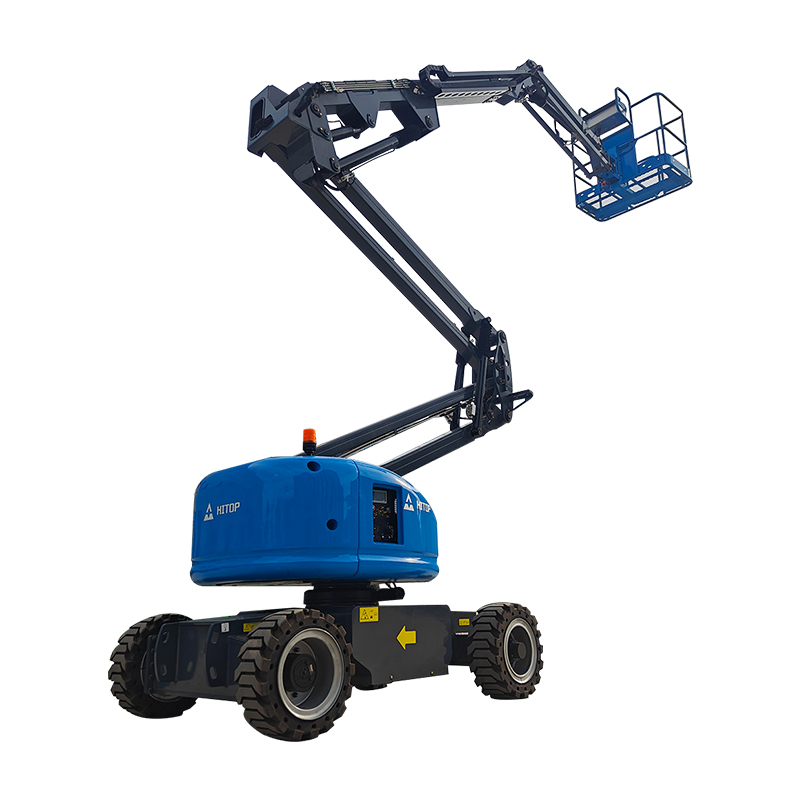

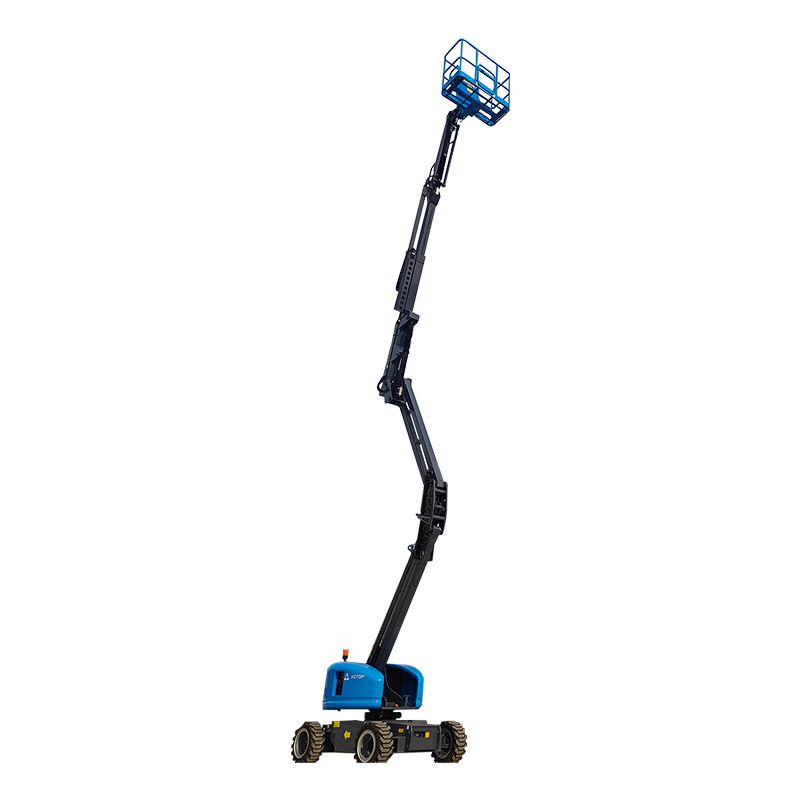

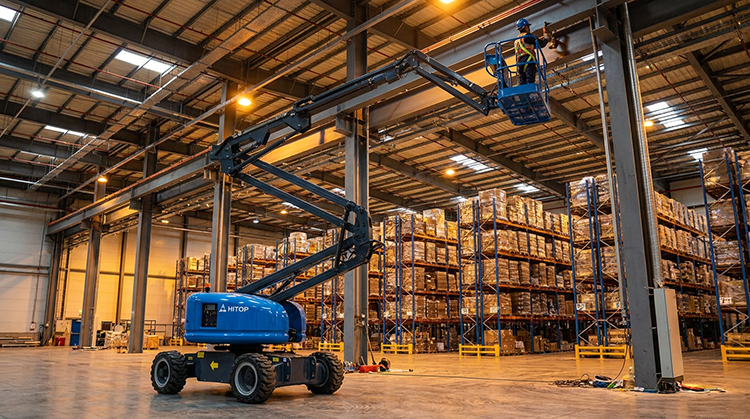

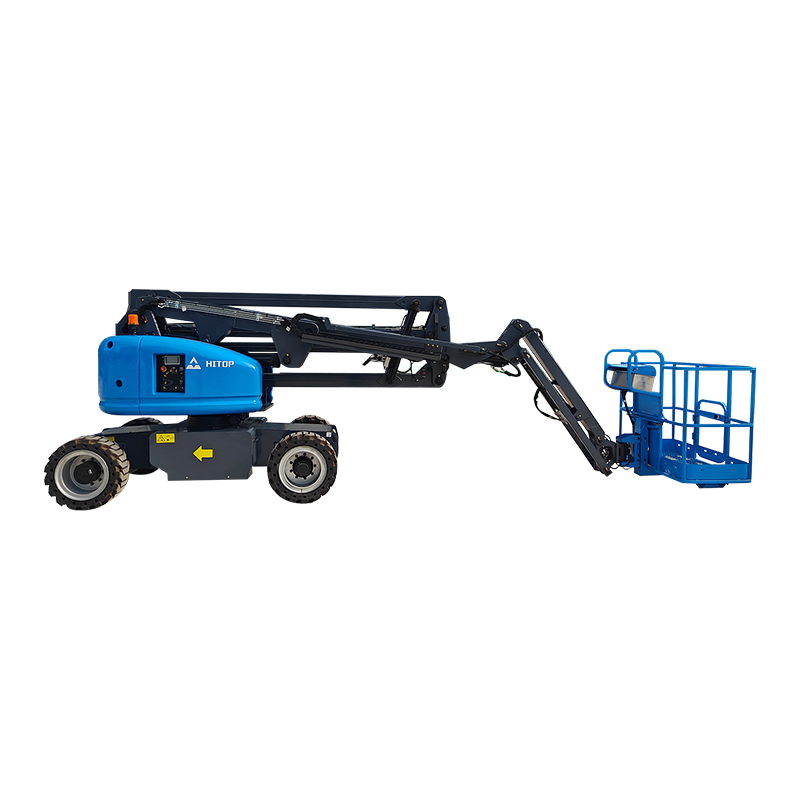

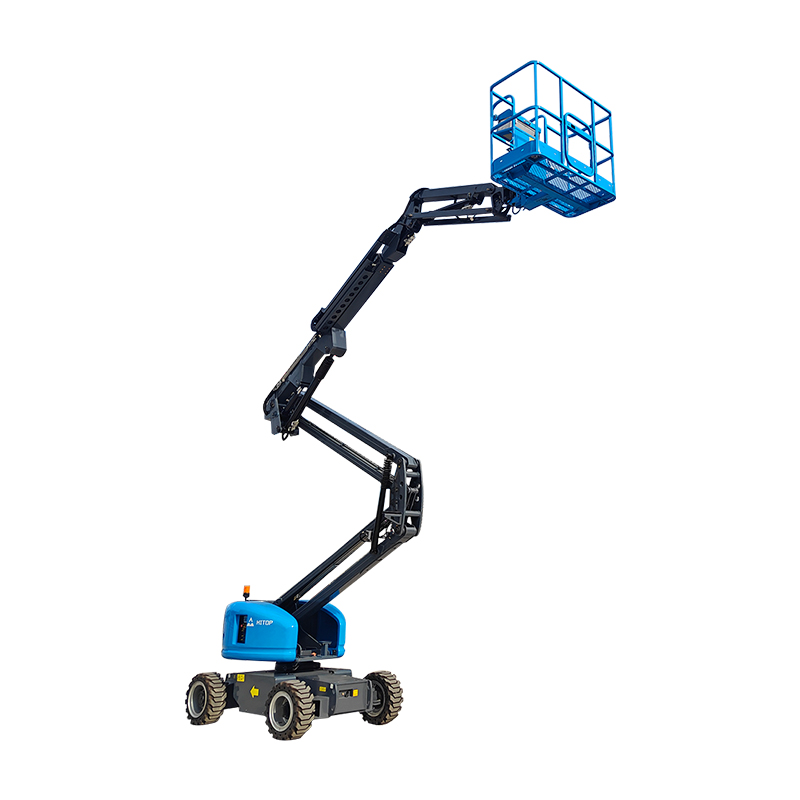

When the job is high, complex, and hemmed in by obstacles — the HITOP XGA Series is the machine built for it. Engineered with a fully articulating multi-joint boom arm, the XGA lifts up, bends over, and reaches precisely into spaces that no scissor lift or straight-boom machine can access. From navigating over pipe racks on a live production floor to positioning above a roofline on a construction site, the XGA puts your operators exactly where the work is — safely and efficiently.

Seven models span 11.5m to 22.5m working height, with load capacities up to 350 kg and an up-and-over clearance of up to 9.4m. All are powered by a 48V battery-electric drive — delivering the performance of a full-size boom lift with zero emissions, whisper-quiet operation, and the freedom to work indoors without restriction.


Quick Spec Highlights


Why Choose the XGA Series?

"Up-and-Over" Boom Geometry
The lower boom, upper boom, and jib arm combine to fold over walls, pipe racks, and rooflines. Up-and-over clearance ranges from 4.3m (XGA09E) to 9.4m (XGA20E) — clearing a two-storey obstacle before reaching the work target.

Zero Emission, Low Noise
No exhaust, minimal noise. Every XGA model is compliant for factories, malls, airports, and pharmaceutical facilities where combustion engines are banned.

360° Turntable — Cover More, Move Less
XGA18E and XGA20E rotate a continuous 360° (355° on smaller models). Combined with ±80° platform rotation and ±70° jib swing, operators cover a full overhead sphere without repositioning.

Compact to Heavy-Duty Range
From the 1.27m-wide XGA09E (fits standard doorways) to the 350 kg-capacity XGA20E with 4WD and 45% gradeability — one series covers indoor precision work and outdoor rough terrain.

CE Certified and Export-Ready
All models are CE certified, ISO manufactured, with global spare parts support and customization options.

Application Scenarios
