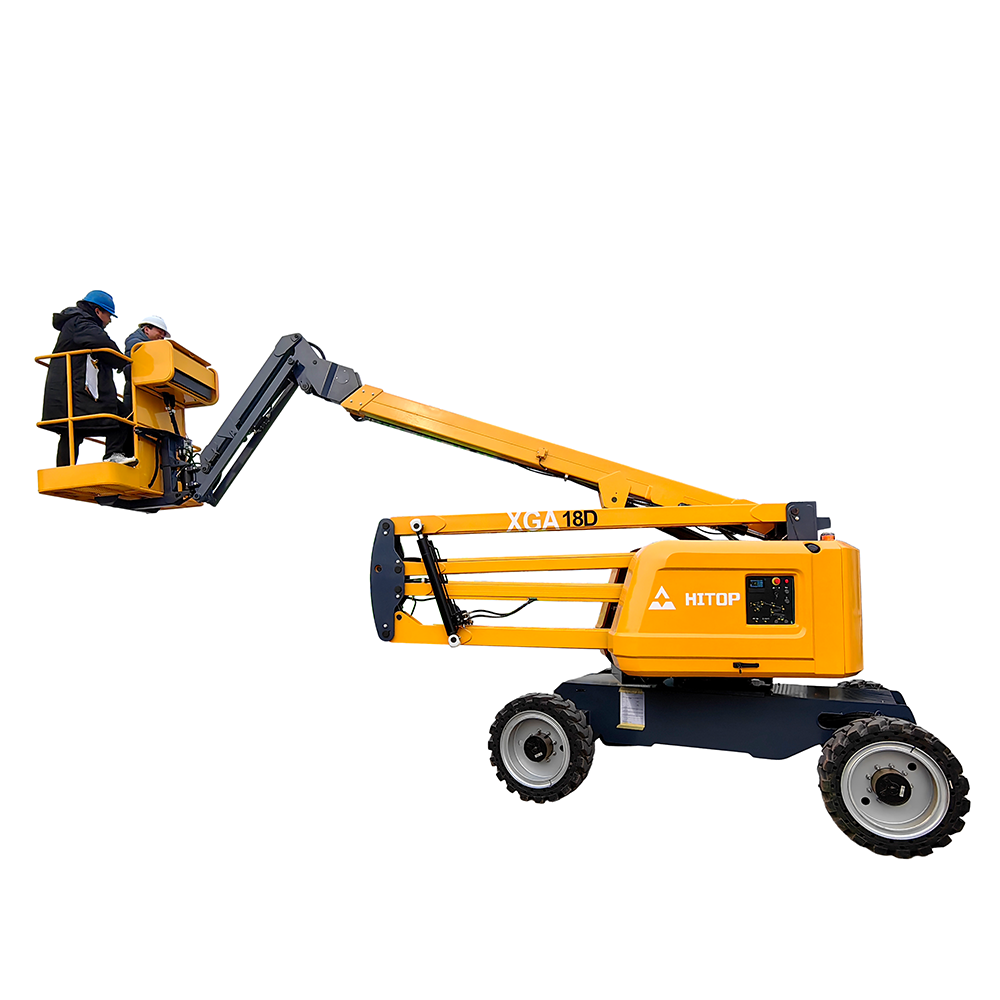

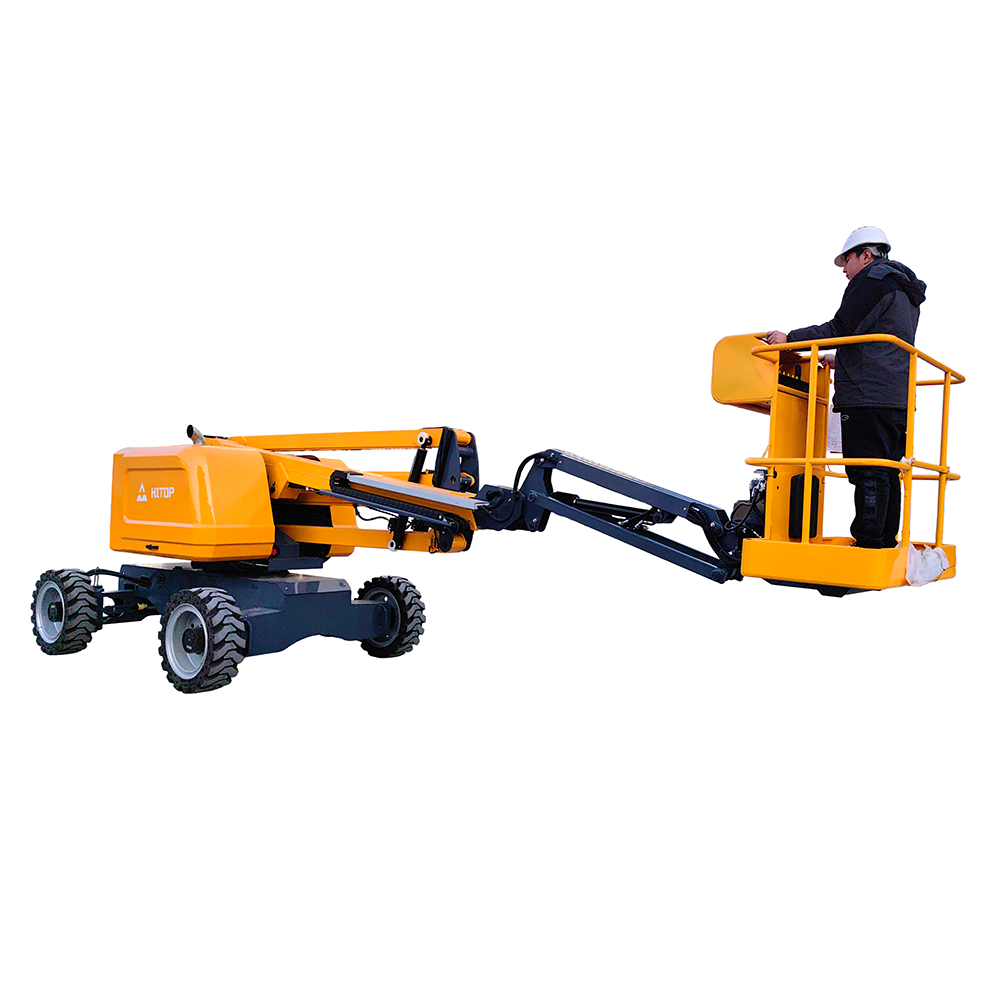

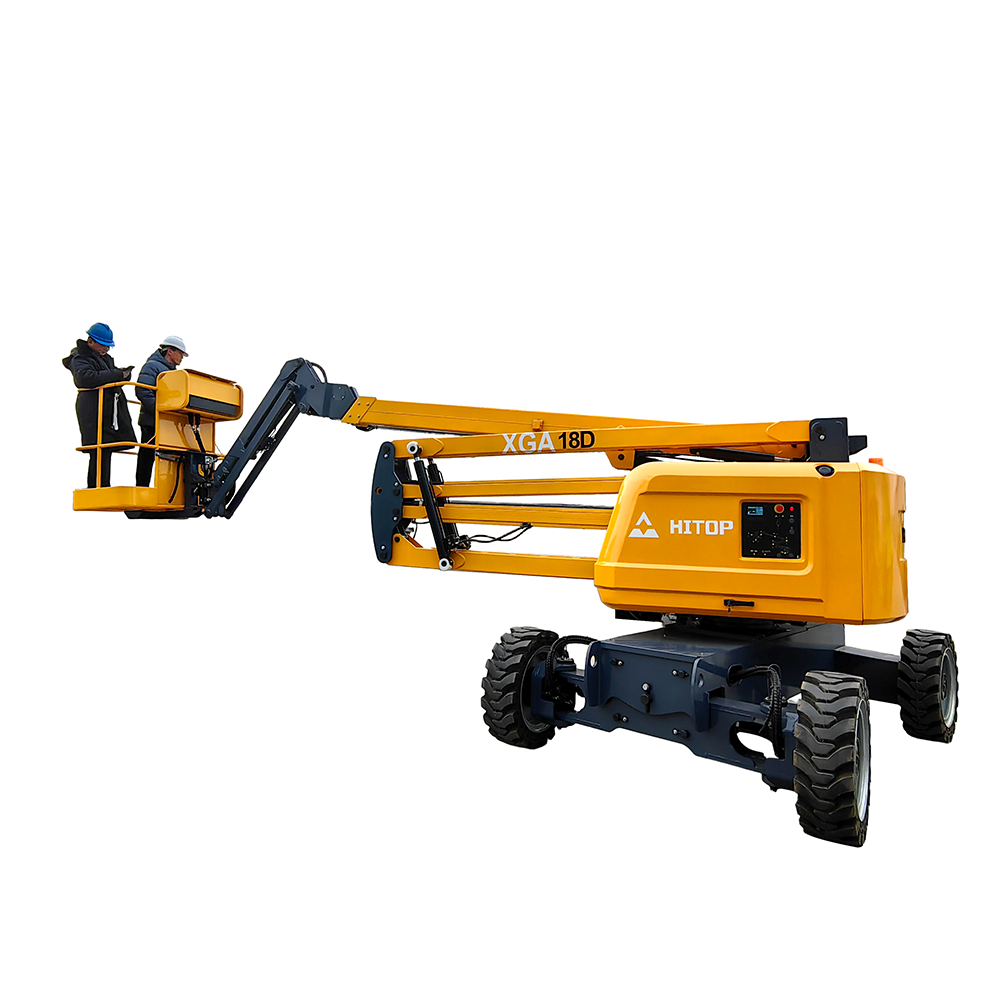

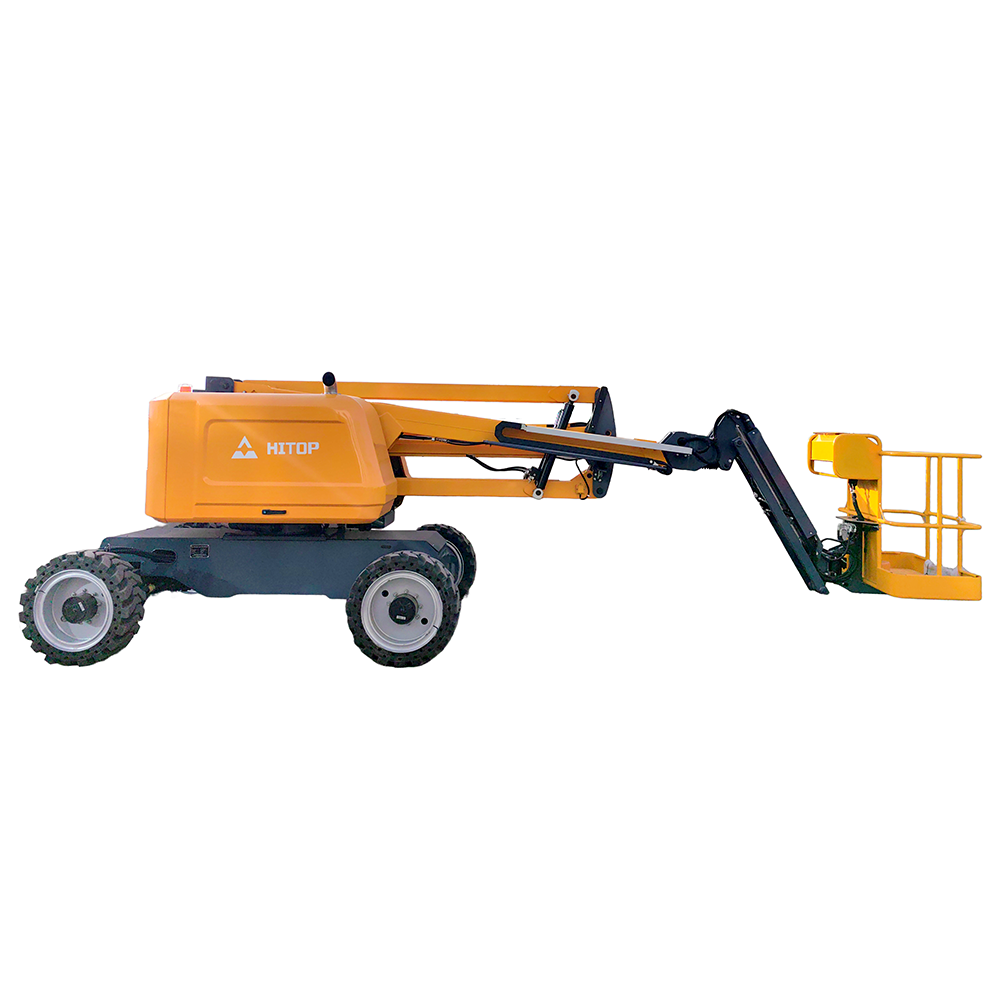

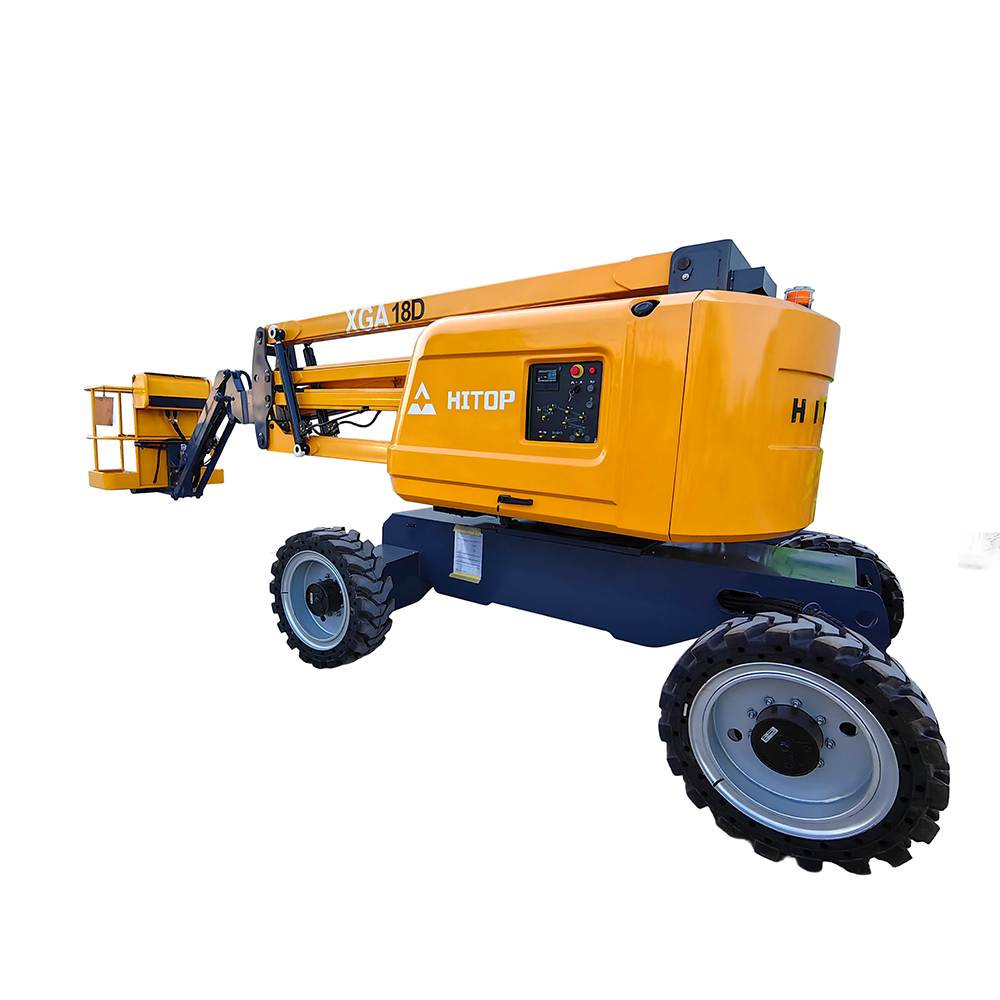

When the job is outside, the terrain is rough, and the working height exceeds what any electric machine can reach — the HITOP XGA-D Series Diesel Articulated Boom Lift is purpose-built for exactly that challenge. Powered by proven Kubota and Cummins diesel engines, the XGA-D delivers full-day outdoor performance with the articulating reach, traction, and lifting capacity that major construction projects demand.

Seven models span 16m to 32m maximum working height — from the agile XGA14D (6,900 kg, 16m) up to the heavy-duty XGA30D (18,000 kg, 32m, 480 kg capacity). All share a continuous 360° turntable, up-and-over boom geometry, and 45% gradeability — giving operators access to virtually any elevated point on complex outdoor worksites.



Why Choose the XGA-D Series?

Proven Diesel Power — Kubota & Cummins
Smaller models (XGA14D–XGA20D) run on Kubota 36 kW engines — renowned for reliability, fuel efficiency, and easy servicing worldwide. Larger models (XGA24D–XGA30D) step up to Cummins engines (43–54 kW) for the sustained power output that heavy-duty lifting at 24m+ demands. Both engine families have global parts networks, minimizing downtime on international projects.


Heavy-Duty Reach from 16m to 32m
No other single product line covers this range. The XGA14D handles typical building construction at 16m; the XGA30D reaches industrial towers, bridge structures, and transmission infrastructure at 32m with a 20.2m horizontal outreach — all from a single product family with consistent controls and serviceability.


360° Turntable — Full Circle Coverage
Every XGA-D model rotates a full continuous 360°, allowing the boom to swing across an entire worksite arc without repositioning the machine. Combined with up-and-over clearances up to 12.2m (XGA30D) and operating radii up to 20.2m, one machine covers an enormous work envelope.


45% Gradeability for Real Outdoor Terrain
All XGA-D models handle slopes up to 45% (XGA14D–XGA20D), with 4×4 drive available on the XGA24D and XGA30D for the most demanding rough terrain. Large 33×12-20 and 385/65-22.5 tyres maintain traction on gravel, mud, and uneven construction ground.


CE Certified and Export-Ready
 All models are CE certified, ISO manufactured, with global spare parts support and comprehensive after-sales service.

Technical Specifications
