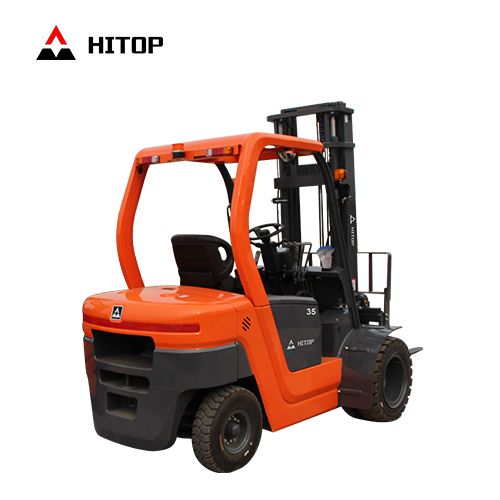

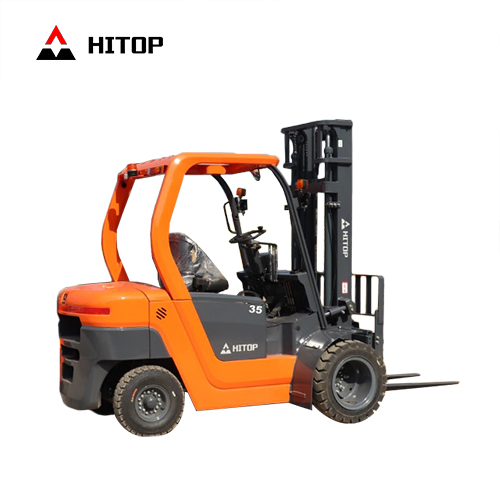

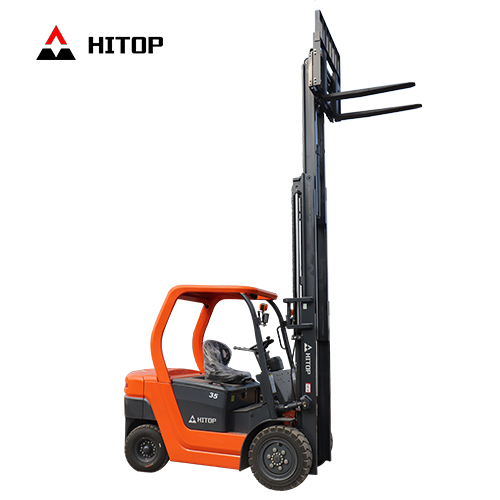

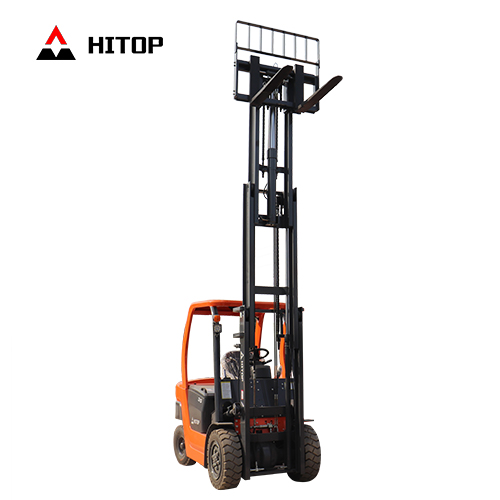

P35D PARAMETERS |
Features |
|
Model |
|
P35D |
|
Power type |
|
Diesel |
|
Rated load |
KG |
3500 |
|
Loading center |
mm |
500 |
|
Driving type |
|
Seat |
Size |
1 |
Whole length |
with fork L1 |
mm |
3810 |
without fork L2 |
2740 |
2 |
whole width B |
1270 |
|
Whole Height |
Height no lifting frame H1 |
2075 |
3 |
Top frame height H2 |
2240 |
|
Max Height working H3 |
4270 |
4 |
Distance from seat to top light L3 |
1035 |
5 |
Wheel base L4 |
1730 |
6 |
Front overhang Y |
473 |
7 |
Front overhang L5 |
540 |
8 |
Front wheel tread R |
1000 |
9 |
Front wheel tread P |
980 |
10 |
Min Floor clearance F |
165 |
11 |
Max lifting height without good H |
3000 |
12 |
Full free lifitng height H4 |
140 |
13 |
Fork Regulating range S |
1060/250 |
14 |
Min Turning radius inside V |
240 |
15 |
Min Turning radius outside |
2500 |
16 |
Min Right angle aisle width RA |
4240 |
17 |
Frame angle a/β |
(°) |
6°/12° |
Nature |
18 |
Max lifting speed without goods |
mm/s |
480 |
19 |
Max lifting speed with goods |
440 |
20 |
Max speed without goods |
Km/h |
19 |
21 |
Max speed with goods |
18 |
22 |
Max climbing angle |
% |
≤20 |
23 |
Maximum traction (full load / no load) |
KN |
16.8/9.8 |
Weight |
24 |
Whole weight without goods |
Kg |
4270 |
25 |
Axle full load front rear |
6550/710 |
26 |
Axle without load front rear |
1690/2550 |
Wheels and Tyres |
27 |
Driving Wheel |
|
2x/2 |
28 |
Tyre model |
|
Pneumatic tire |
29 |
Front Tyre |
|
28x9-15 |
30 |
Rear Tyre |
|
6.50-10 |
31 |
Hand Brake |
|
Hydraulic Pedal |
32 |
Brake type |
|
M-Hand |
Drive Device |
33 |
Battery capacity |
V/Ah |
12/60 |
34 |
Engine model |
|
490BPG |
35 |
Diesel oil tank capacity |
L |
57 |
