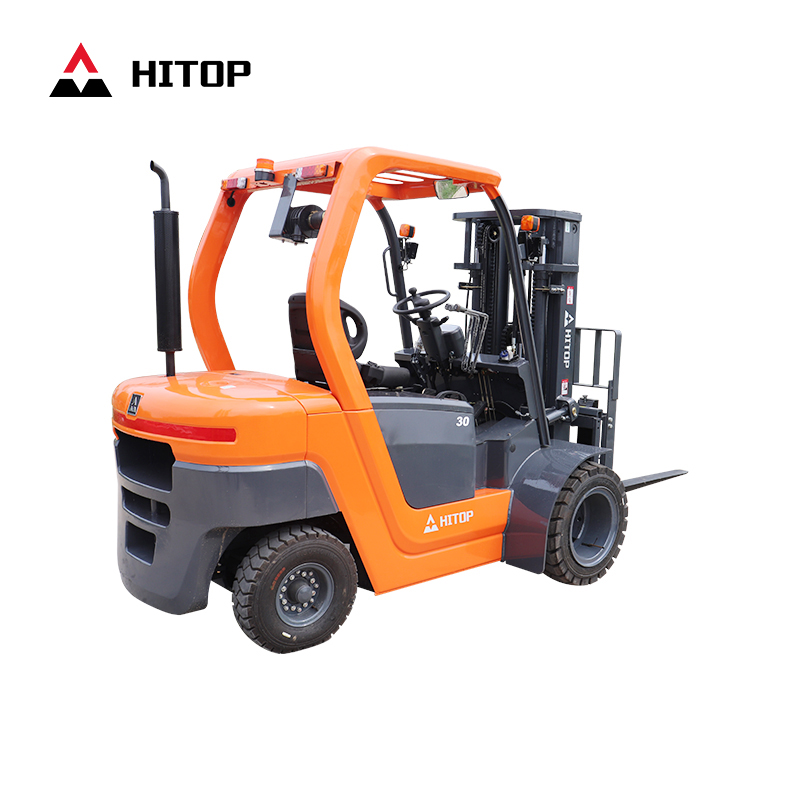

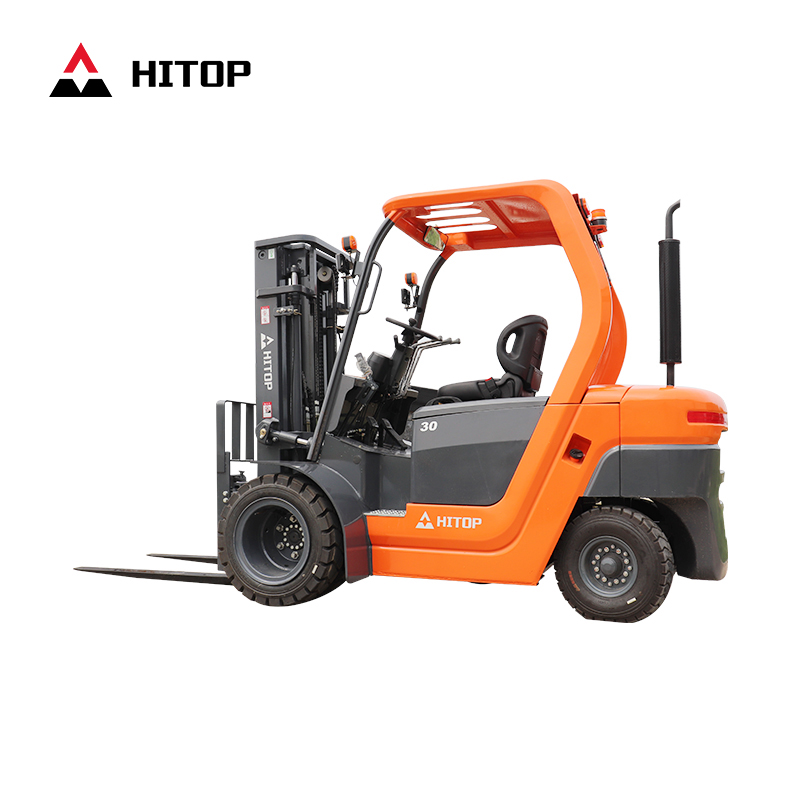

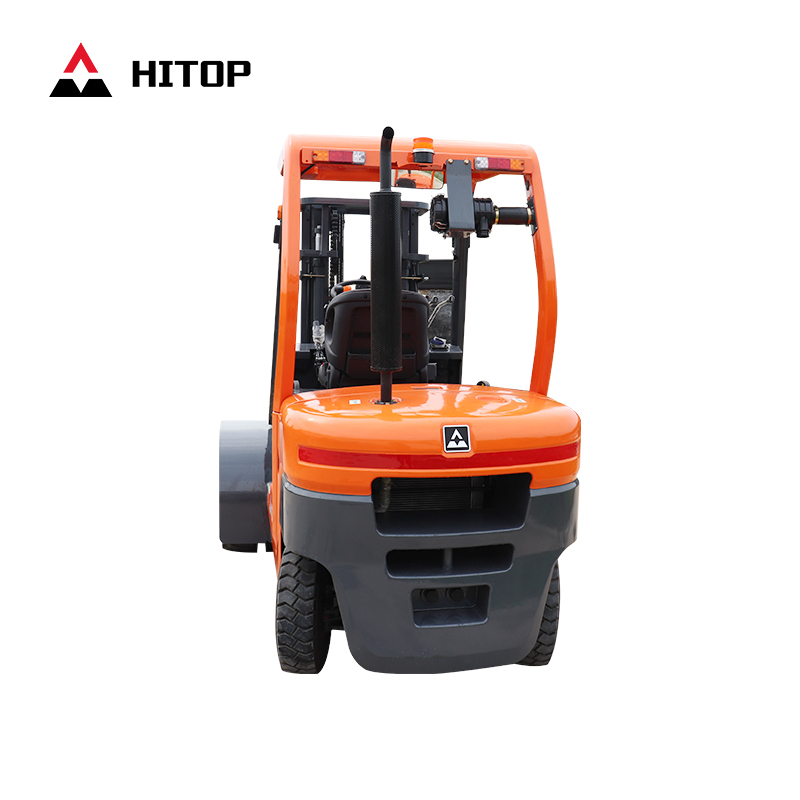

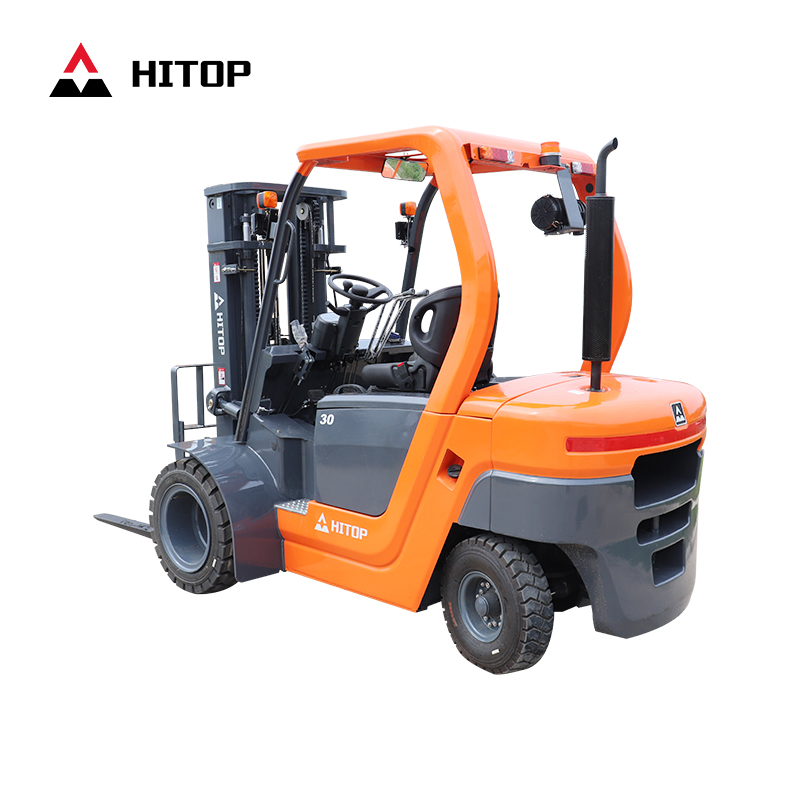

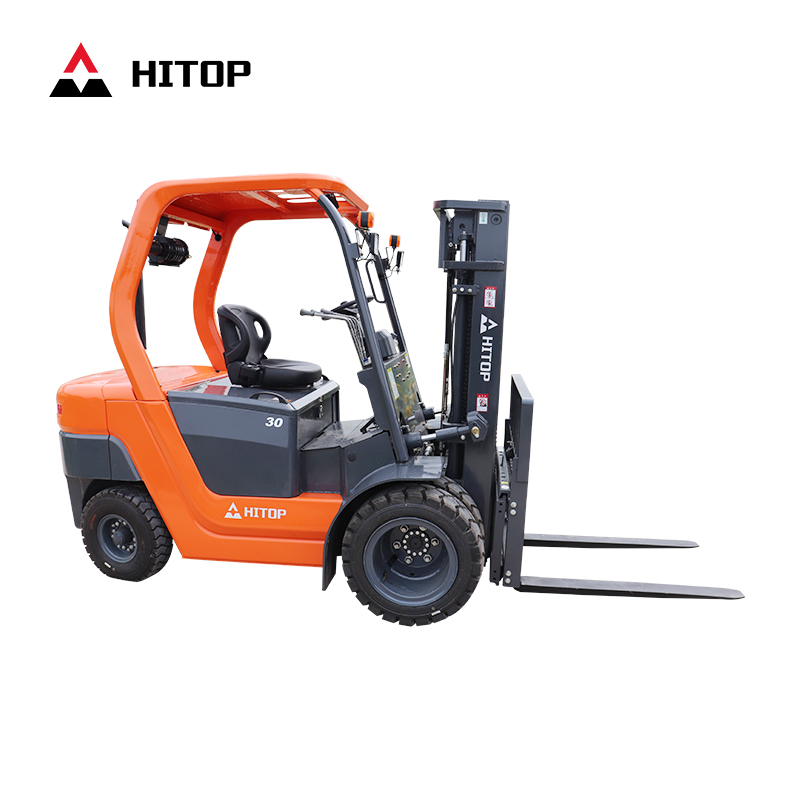

| P30D PARAMETERS | |||||
| Features | Model | P30D | |||
| Power type | Diesel | ||||
| Rated load | KG | 3500 | |||
| Loading center | mm | 500 | |||
| Driving type | Seat | ||||
| Size | 1 | Whole length | with fork L1 | mm | 3810 |
| without fork L2 | 2740 | ||||
| 2 | whole width B | 1270 | |||
| Whole Height | Height no lifting frame H1 | 2075 | |||
| 3 | Top frame height H2 | 2240 | |||
| Max Height working H3 | 4270 | ||||
| 4 | Distance from seat to top light L3 | 1035 | |||
| 5 | Wheel base L4 | 1730 | |||
| 6 | Front overhang Y | 473 | |||
| 7 | Front overhang L5 | 540 | |||
| 8 | Front wheel tread R | 1000 | |||
| 9 | Front wheel tread P | 980 | |||
| 10 | Min Floor clearance F | 165 | |||
| 11 | Max lifting height without good H | 3000 | |||
| 12 | Full free lifitng height H4 | 140 | |||
| 13 | Fork Regulating range S | 1060/250 | |||
| 14 | Min Turning radius inside V | 240 | |||
| 15 | Min Turning radius outside | 2500 | |||
| 16 | Min Right angle aisle width RA | 4240 | |||
| 17 | Frame angle a/β | （°） | 6°/12° | ||
| Nature | 18 | Max lifting speed without goods | mm/s | 480 | |
| 19 | Max lifting speed with goods | 440 | |||
| 20 | Max speed without goods | Km/h | 19 | ||
| 21 | Max speed with goods | 18 | |||
| 22 | Max climbing angle | ％ | ≤20 | ||
| 23 | Maximum traction (full load / no load) | KN | 16.8/9.8 | ||
| Weight | 24 | Whole weight without goods | Kg | 4270 | |
| 25 | Axle full load front rear | 6550/710 | |||
| 26 | Axle without load front rear | 1690/2550 | |||
| Wheels and Tyres | 27 | Driving Wheel | 2x/2 | ||
| 28 | Tyre model | Pneumatic tire | |||
| 29 | Front Tyre | 28x9-15 | |||
| 30 | Rear Tyre | 6.50-10 | |||
| 31 | Hand Brake | Hydraulic Pedal | |||
| 32 | Brake type | M-Hand | |||
| Drive Device | 33 | Battery capacity | V/Ah | 12/60 | |
| 34 | Engine model | 490BPG | |||
| 35 | Diesel oil tank capacity | L | 57 | ||
