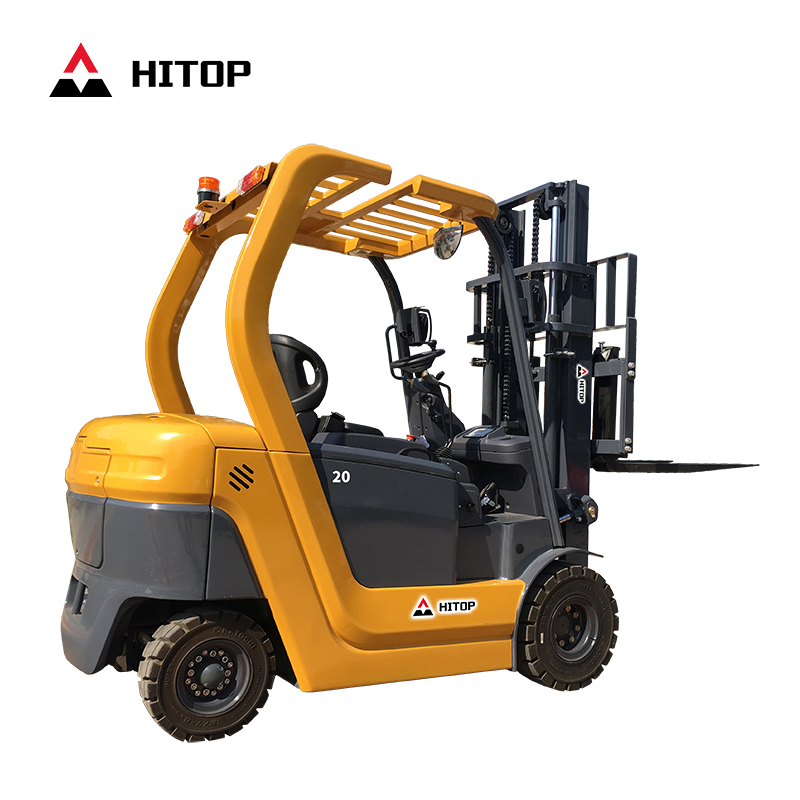

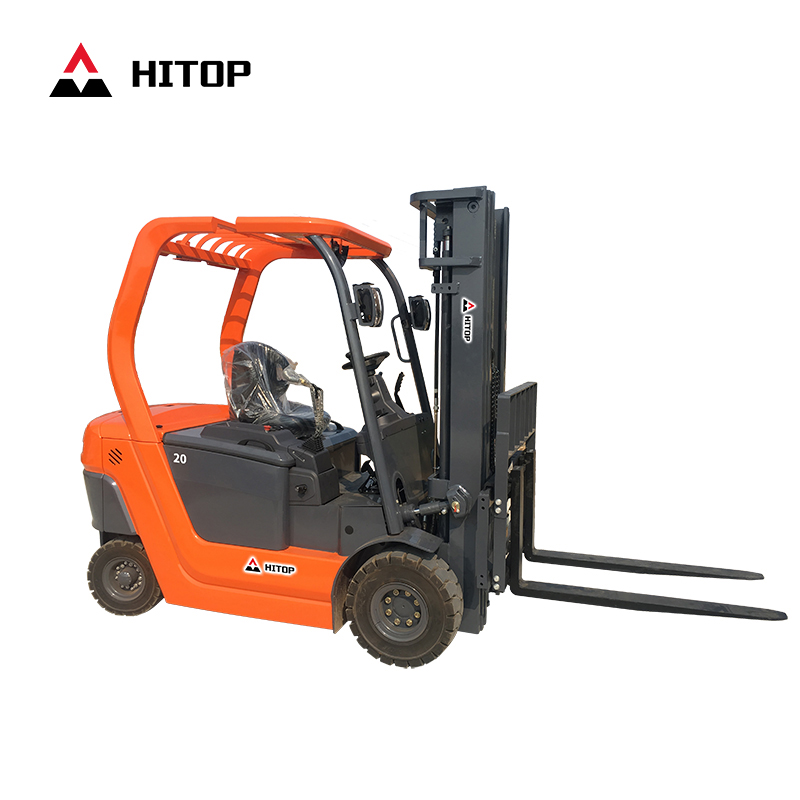

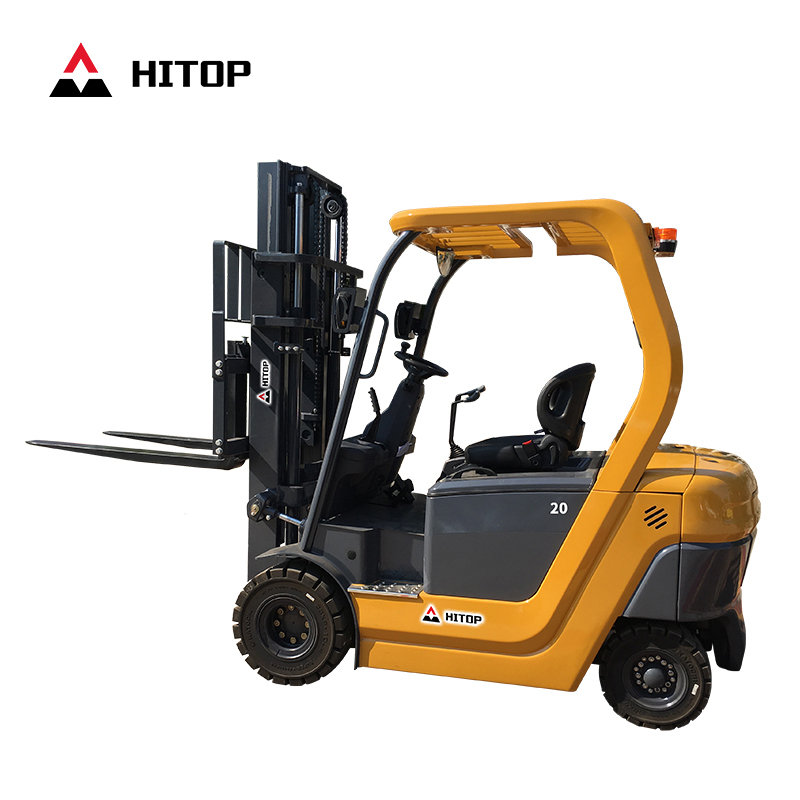

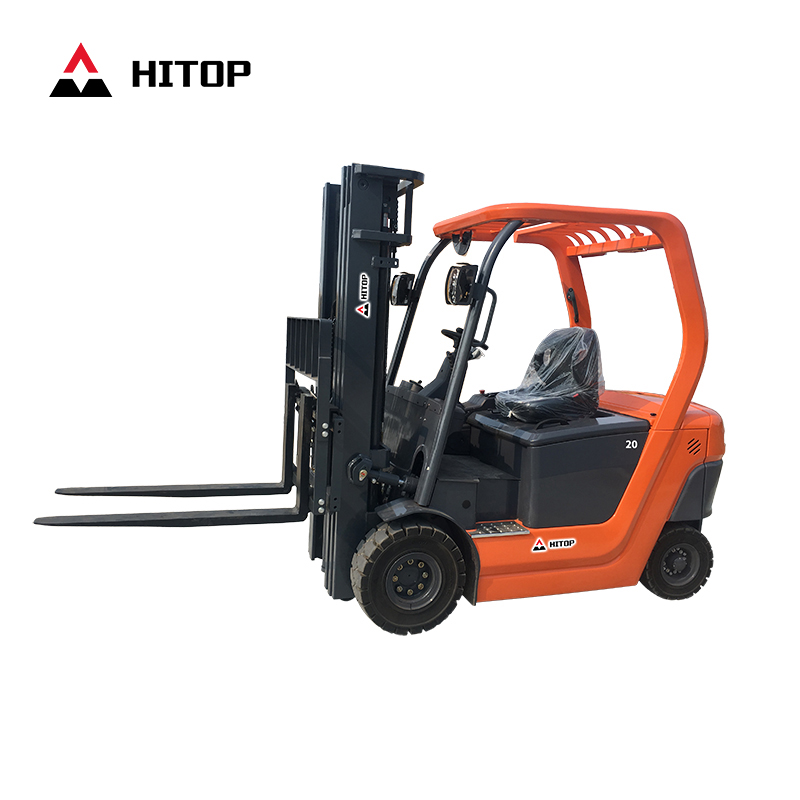

Electric Forklift P20

Item No.: P20
Electric Forklift P20
  • Rated Lifting Capacity2000kg
  • Lifting Height3m
  • Load Center500mm
  • Min. Truning Radius2150mm
  • Battery Voltage480v
  • Battery Capacity400Ah
  • Drive ModeBattery
  • More Less
    Description Review

    Product Features
    1. New design reinforced roof frame with superior anti roll ability.
    2. Professional XCE electronic control proportional technology system, it has better performance than diesel forklift.
    3. Full AC motor driving and lifting electric control system, it greatly reduces the difficulty of forklift maintenance.
    4. It is equipped with the sixth generation cylinder buffer technology as standard to ensure high efficiency, energy saving and more reliable stability.
    5. The whole vehicle equipped with two degrees of freedom steering front and back, left and right, more comfortable operation experience.
    6. It has 24 degree cone seal greatly as standard to reduce the possibility of hydraulic system leakage.
    7. The H-type three-stage deceleration integral axle can reduce the driving noise and enhances the kinetic energy conversion ratio.
    8. Large capacity lithium iron phosphate battery (optional) can be fully charged within 2 hours, greatly improving the economy.
    9. More than 3500 times of rechargeable lithium batteries (optional) ensure the forklift's continuous operation ability and service life time.
    10. The high-performance charger can achieve 93% charging efficiency and reduce the cost continuously.

    Product Specifications
    Model   Unit P20
    Rated capacity Q kg 2000
    Load center distance C mm 500
    Power mode     Battery
    Tyre type     Pneumatic/solid tyre
    Max.lifting height H mm 3000
    Free lifting height H1 mm 145
    Mast tilt angle front/rear α/β ° 6/12
     Length fork excluded L' mm 2435
    Width W mm 1180
    Mast height H2 mm 2015
    Overhead guard height H3 mm 2185
    Min.under clearance H4 mm 120
    Wheel base L1 mm 1550
    Min.Turning radius R mm 2150
    Travelling speed loaded/unloaded   km/h 14/15
    Lifting speed loaded/unloaded   mm/s 330/450
    Gradeability loaded/unloaded   % 15/17
    Motor Drive motor power kw 11
    Pump motor power kw 12
    Battery Voltage V 48
    Amphere Ah 500/600/700
