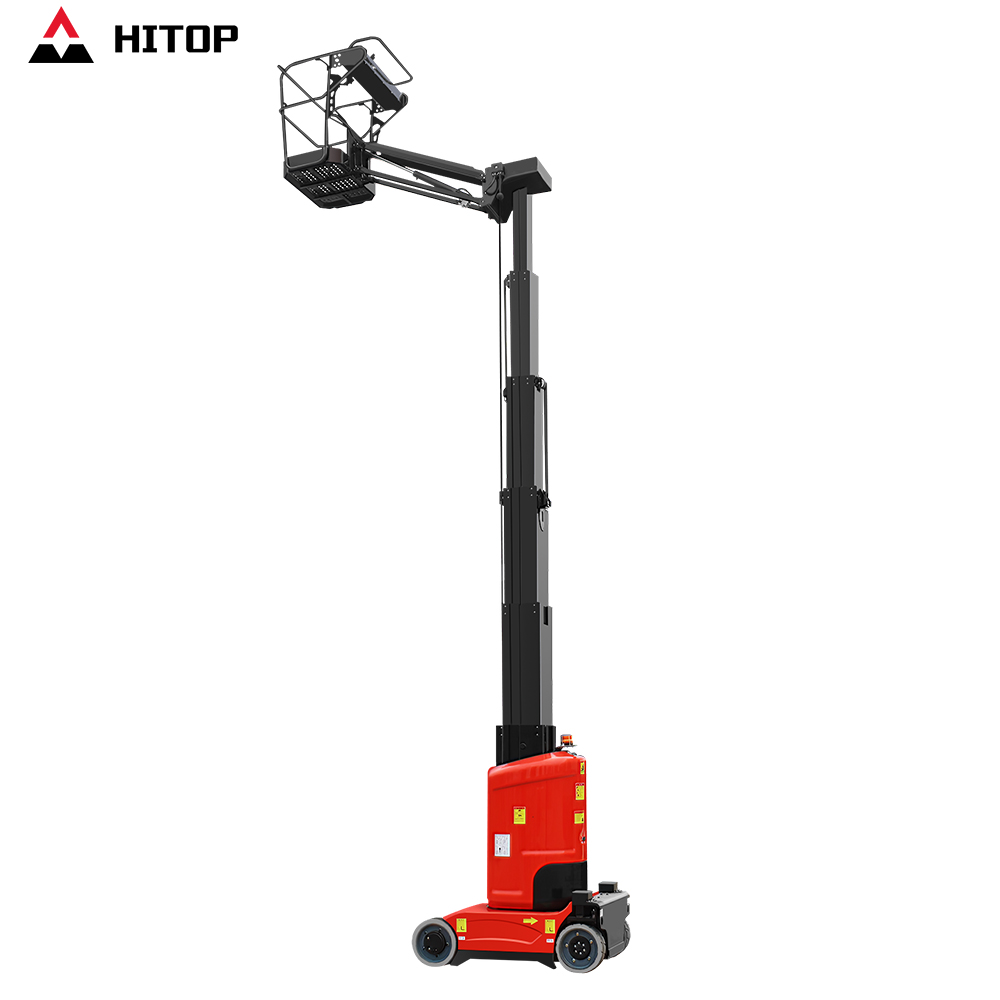

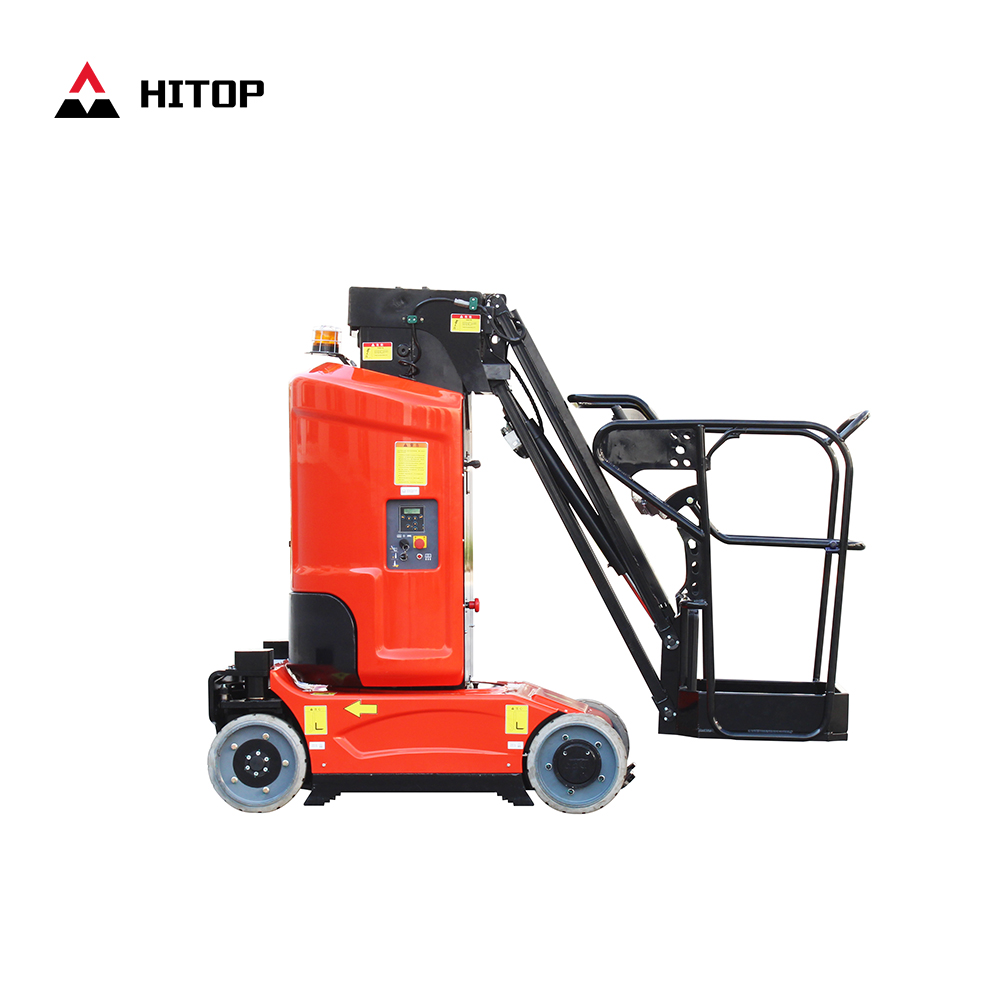

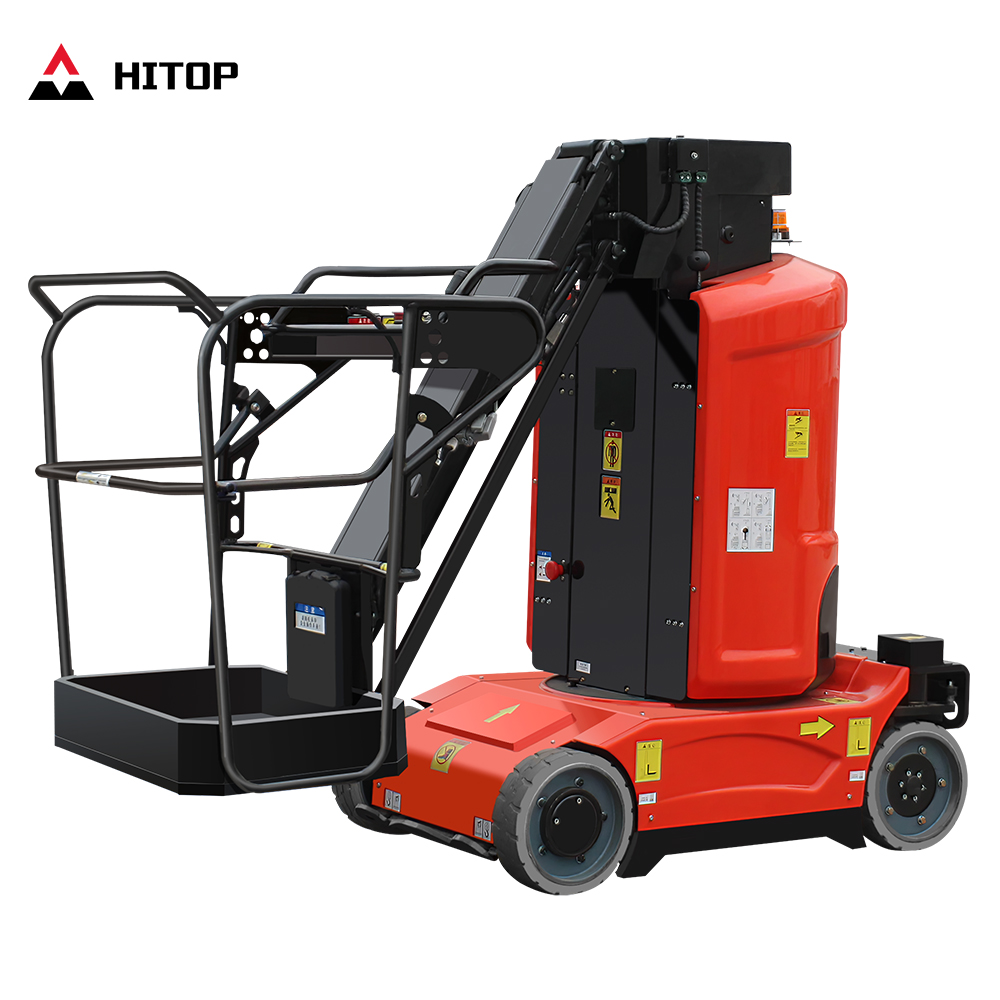

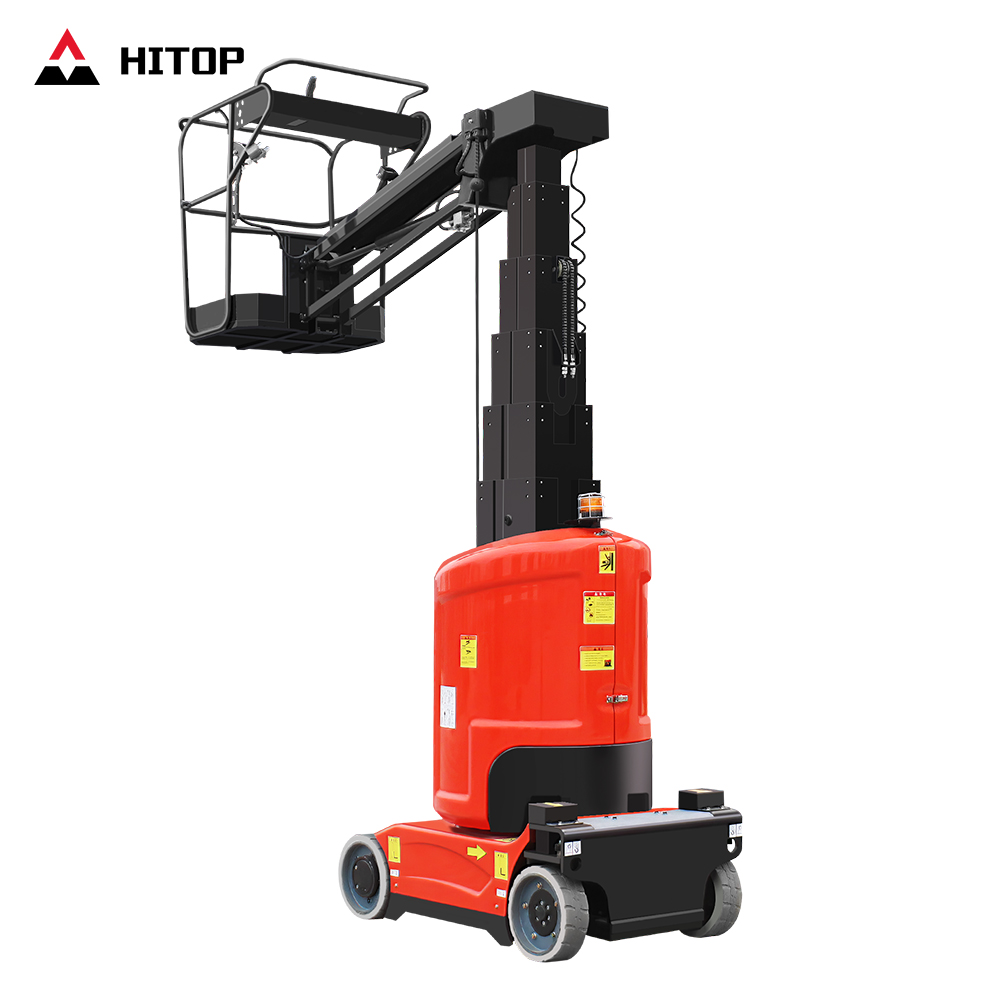

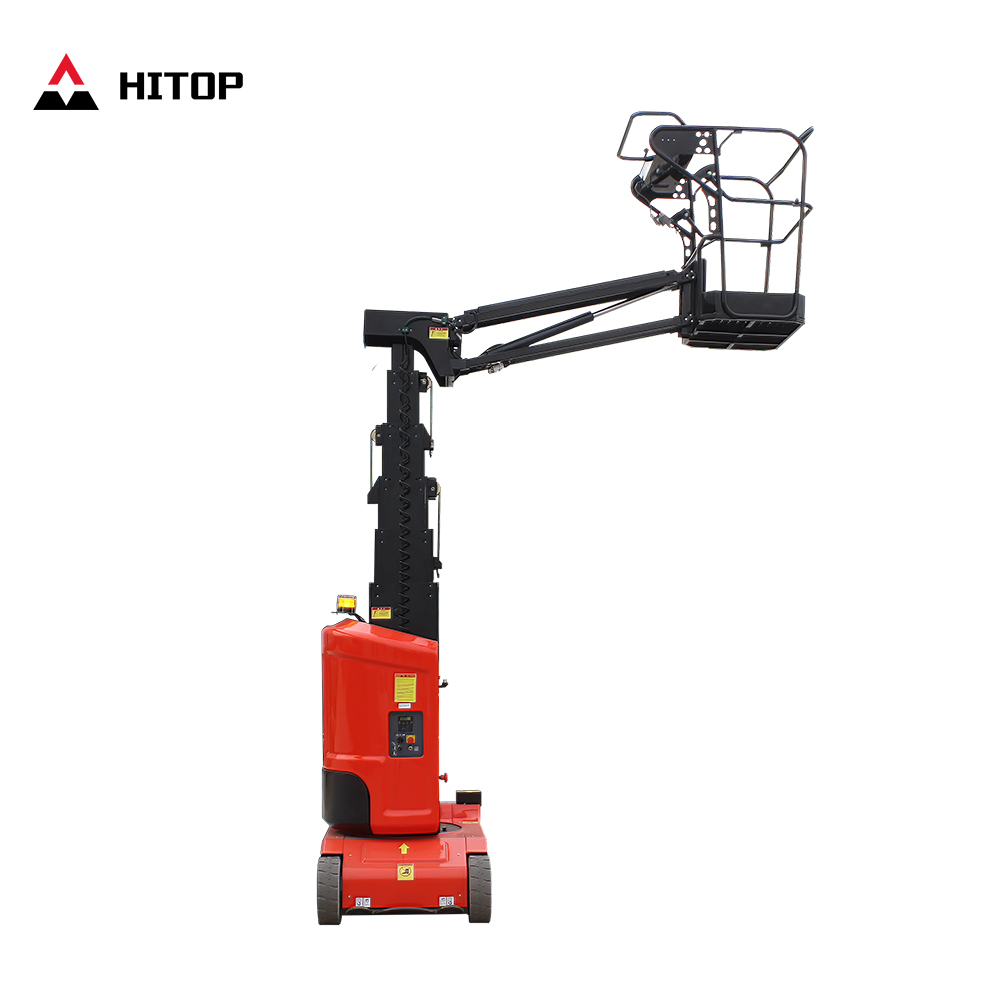

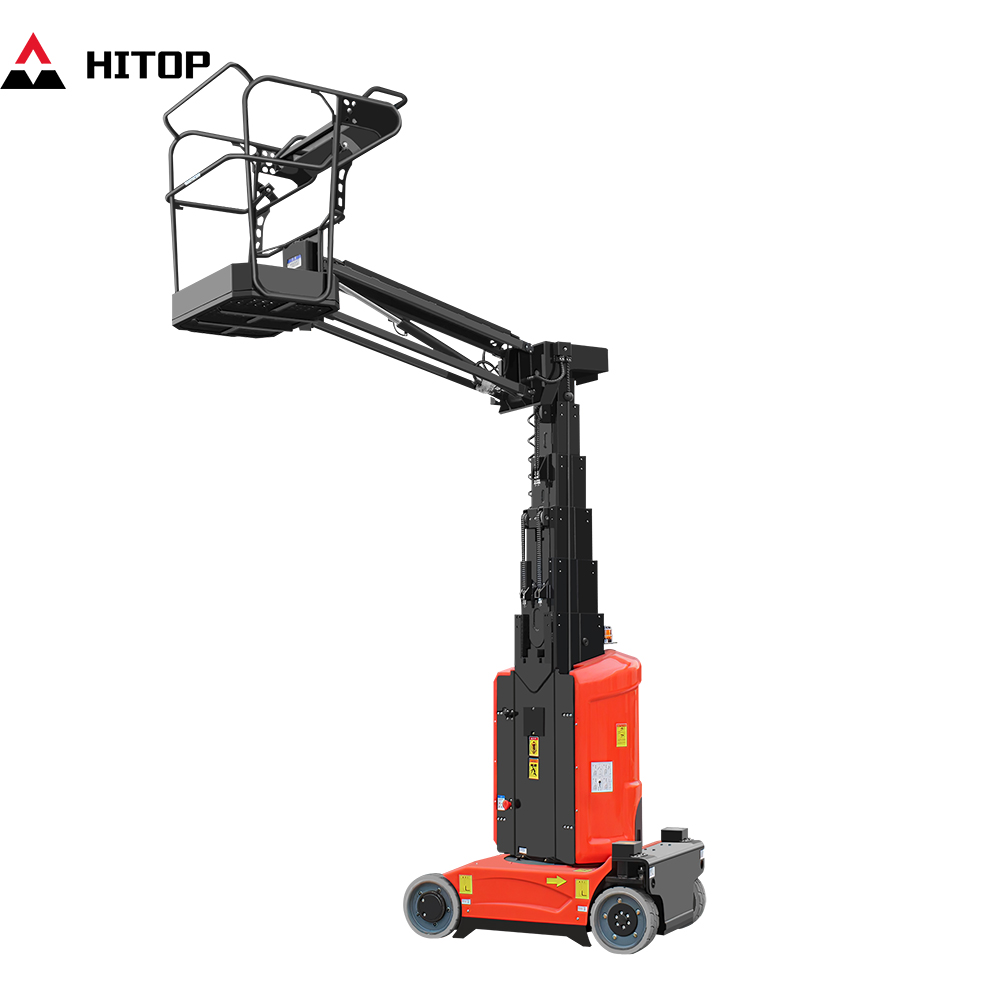

MFJ11.5 Electric Self-propelled Vertical Mast Lift (11.2m Working Height)

Name: Electric Self-propelled Vertical Lifts MFJ11.5
Brand: HITOP FORKLIFT
SKU: 00187
Availability: InStock
Rating: 5 (1 reviews)

The MFJ11.5 represents the next generation of indoor aerial work solutions. Featuring a powerful, fully enclosed AC drive system, this purely electric-driven machine offers a maximum working height of 11.2 meters while maintaining a slim 0.99-meter width. It is specifically engineered for precision maneuvering in narrow aisles and confined spaces typical of modern warehouses, high-end supermarkets, and industrial facilities.

Key Features

Ultra-Compact Design: With a width of only 0.99m, the MFJ11.5 effortlessly passes through standard doorways and navigates narrow warehouse corridors.

Maintenance-Free AC System: The fully enclosed AC drive system ensures smooth operation, lower energy consumption, and significantly reduced maintenance costs compared to DC systems.

Superior Maneuverability: A tight turning radius (0.23m inside) and 345° turret rotation provide unparalleled flexibility in congested work areas.

Extended Reach: Reach up to 11.2m working height with a stable, multi-stage mast design, supporting up to 2 occupants or 200kg load.

Easy Transportation: Equipped with dedicated forklift pockets, allowing for safe and convenient loading/unloading between jobsites.

Highlighted Specifications

Key Feature	Specification
Max. Working Height	11.2 m
Max. Platform Height	9.2 m
Loading Capacity	200 kg
Overall Width (B)	0.99 m
Travel Speed (Stowed)	4.5 km/h
Gradeability	25%

Technical Parameters (Full Table)

MODEL		MFJ11.5
Size
Max.Working Height		11.2m
Max. Platform Height		9.2m

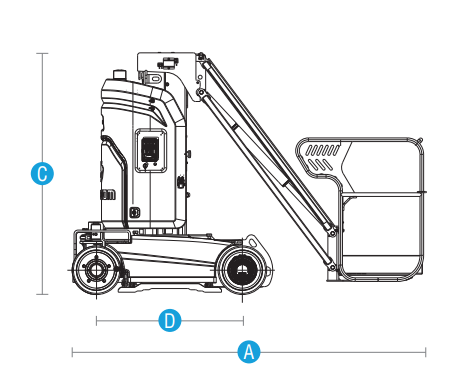

Overall Length A		2.53m

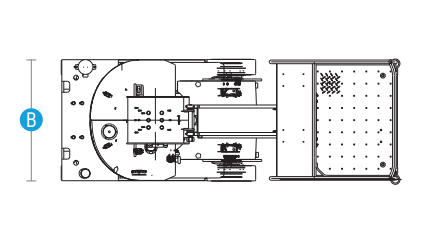

Overall Width B		0.99m
Overall Height C		1.99m
WheelBase D		1.22m
Ground Clearance(Stowed)		70mm
Ground Clearance( Pothole Protection Device)		30mm
Platform Dimension		0.87*0.62m
Performance
Loading Capacity		200kg
Occupants		2
Travel Speed(Stowed)		0～4.5km/h
Travel Speed(Raised)		0～0.8km/h
Up/Down Speed		40/36s
Climbing Ability(2WD)		25%
Max. Working Slope		2.5°/2.5°
Turning Radius(Inside/Outside)		0 .23m/1.65m
Turret Rotation		345°
Tyres		Φ381×127mm
Power
Hydraulic Oil Tank Capacity		8L
Hydraulic System Pressure		13Mpa
Battery		6V*4/220Ah
System Voltage		24V
Control Voltage		24V
Charger		24V30A
Driving Motor		24 V/0.9KW
Weight		2950±20kg

Applications

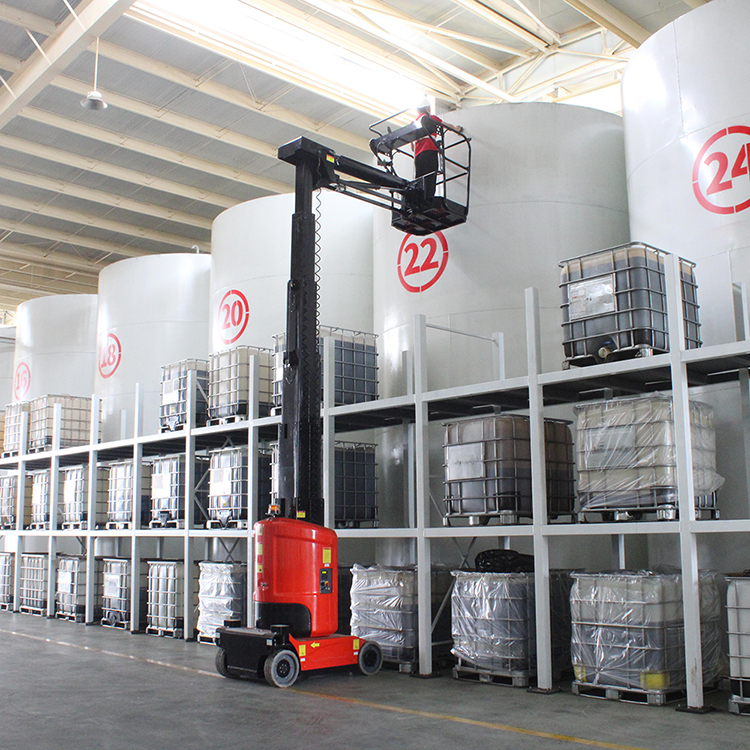

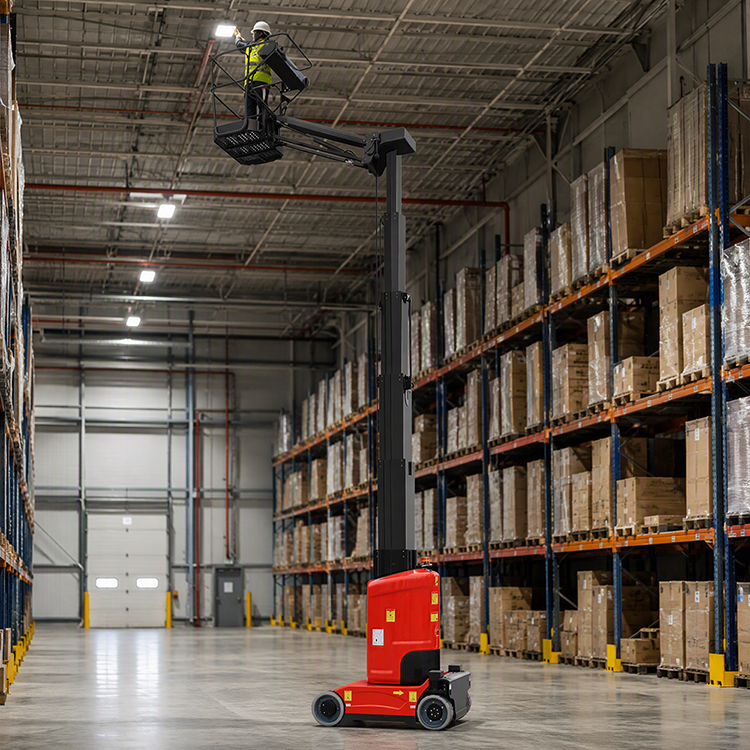

Warehousing & Logistics: Inventory management and maintenance in high-rack storage.
Supermarkets & Retail: Shelf stocking and overhead signage installation without blocking aisles.
Industrial Facilities: Equipment inspections and facility repairs in congested factory floors.
Event Centers: Quick setups for lighting and decorations in narrow gallery spaces.
