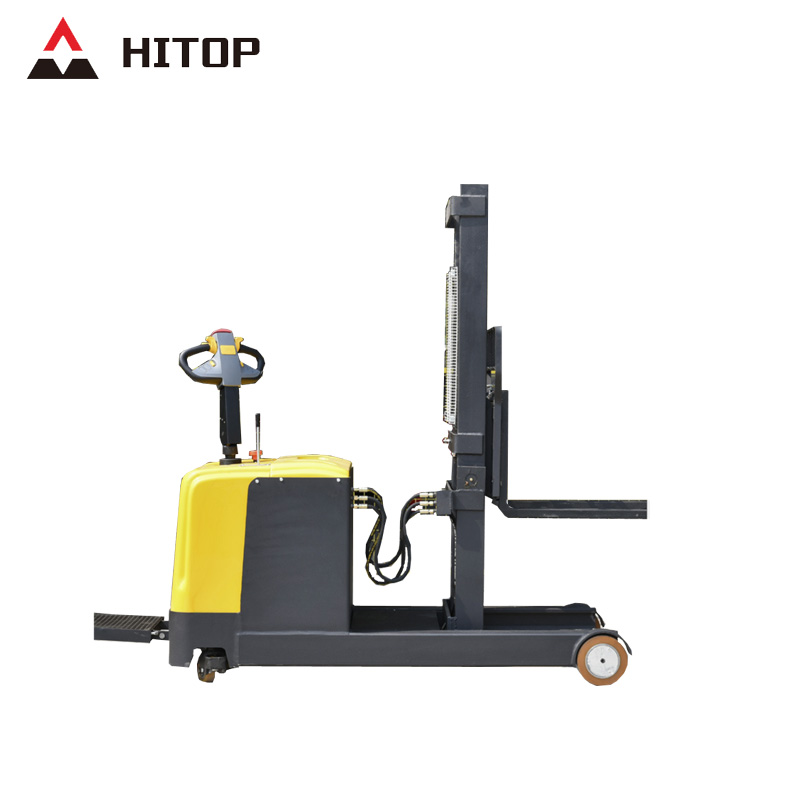

Model |
|
CQD10/CQD15/CQD20 |
Power |
|
Battery |
Driving type |
|
Stand-on |
Rated load |
kg |
1000/1500/2000 |
Load center |
mm |
500 |
Door frame material |
|
C + J steel |
Self weight |
kg |
≈1800 |
Tyre type |
|
Polyurethane |
Drive wheel size (diameter × width) |
mm |
φ250 × 80 |
Load-bearing wheel size (diameter × width) |
mm |
φ210 × 80 |
Balance wheel size (diameter × width) |
mm |
φ160 × 50 |
Number of drive wheels, balance wheels, load wheels |
|
36926 |
Lifting height |
mm |
1600/2000/2500/3000/3500/4000/4500/5000 |
Vehicle height (when the fork is the lowest) |
mm |
2100/1600/1900/2100/2350/1950/2100/2300 |
Vehicle height (when the fork is the highest) |
mm |
2100/2550/3050/3550/4050/4550/5050/5550 |
Height of fork from ground (lowest) |
mm |
80 |
Vehicle length (pedal expansion / collapse) |
mm |
3070/2570 |
Vehicle width |
mm |
1050 |
Fork length |
mm |
1070 |
Maximum adjustable outer width of fork |
mm |
680/1000 |
Turning radius |
mm |
2200 |
Travel speed, full load / no load |
km/ |
3.0 / 5.0 |
Increase speed, full load / empty load |
mm/ |
90/125 |
Falling speed, full load / empty load |
mm/ |
100/80 |
Gradeability, full load / empty load |
% |
43959 |
Braking method |
|
Electromagnetic brake |
Drive motor power |
KW |
1.5 |
Lifting motor power |
KW |
2.2 |
Battery voltage / capacity |
V/A |
24V / 210Ah (optionally 240Ah) |
Speed regulation |
|
MOS stepless speed regulation system |
