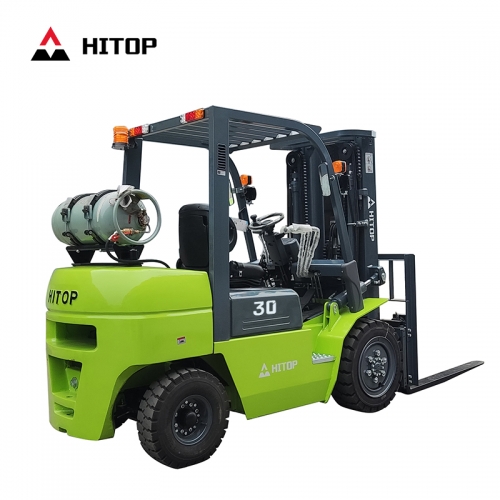

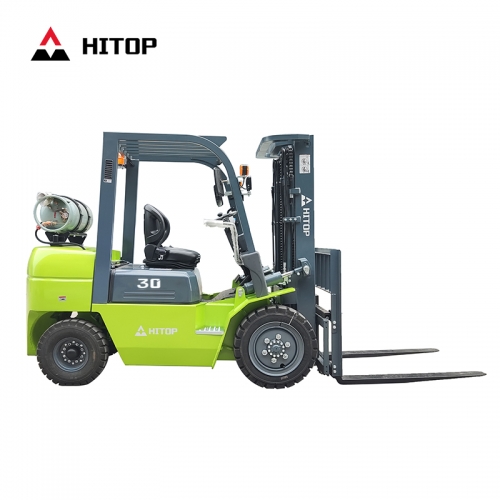

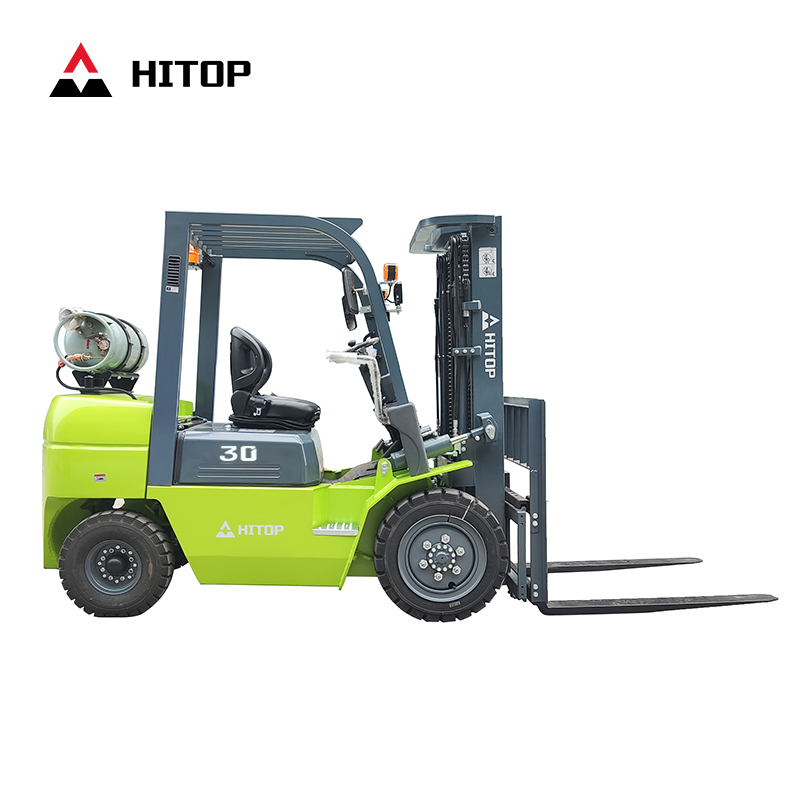

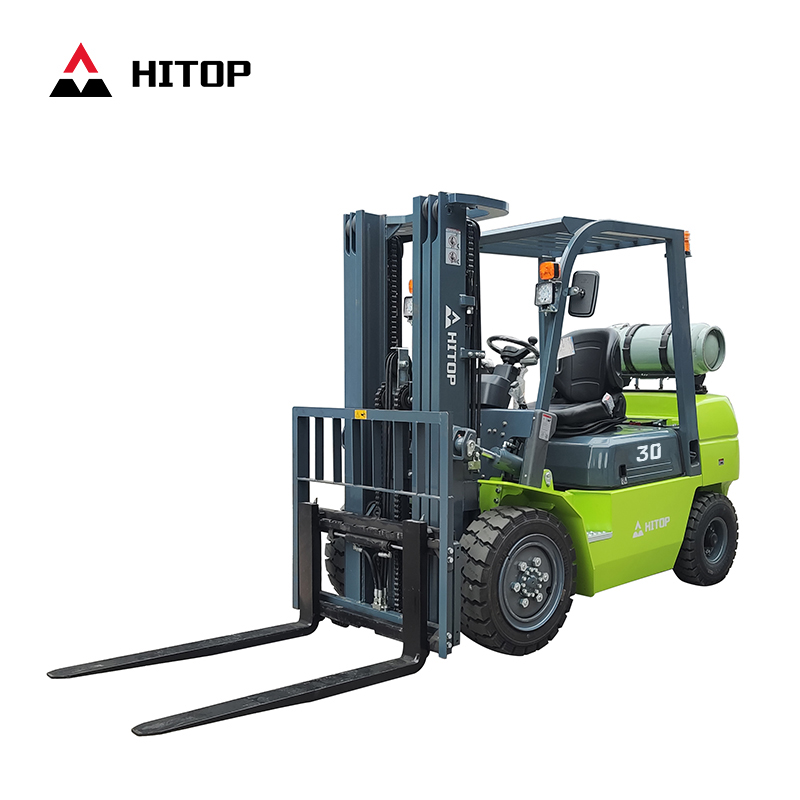

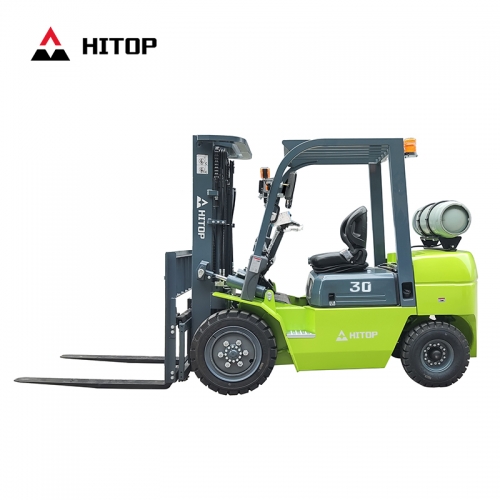

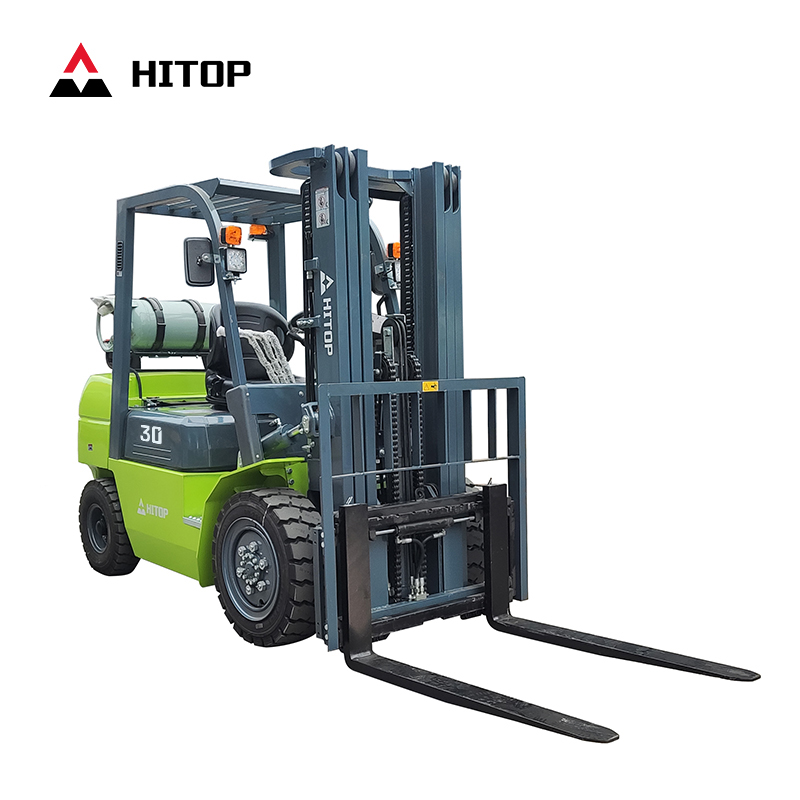

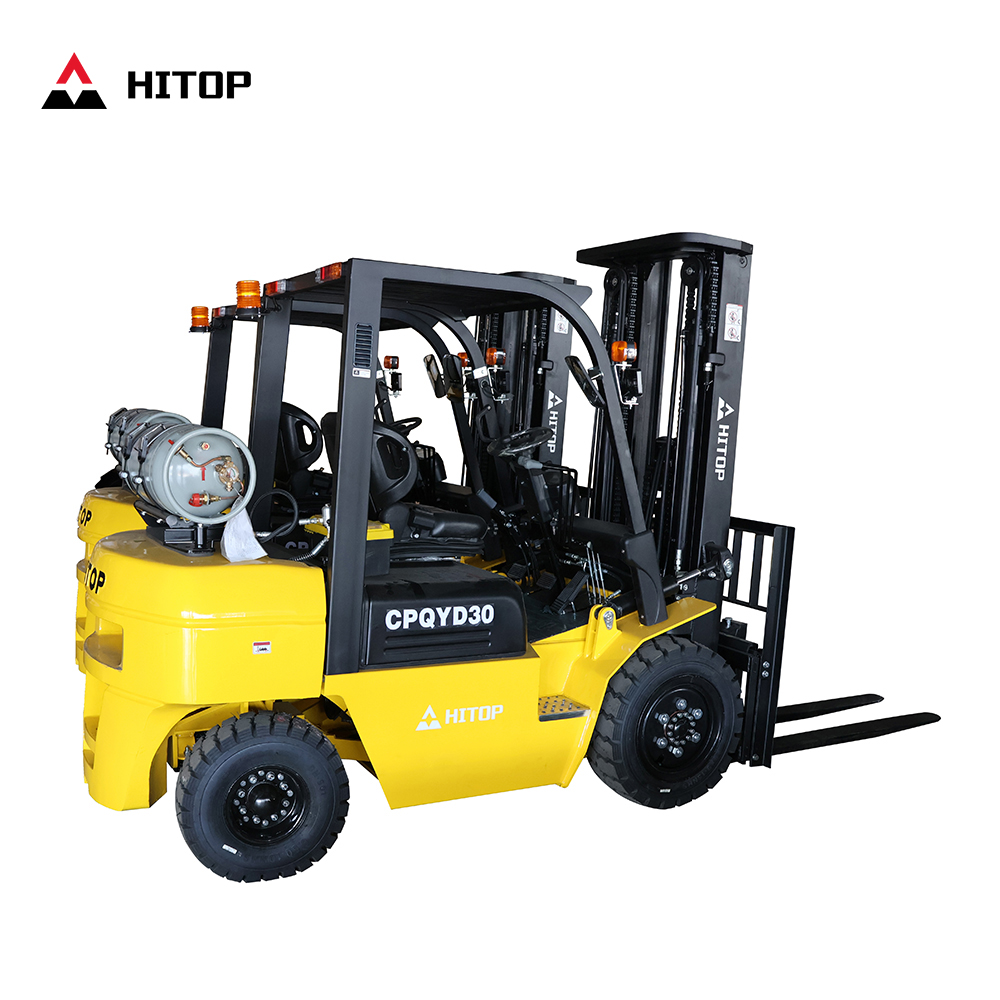

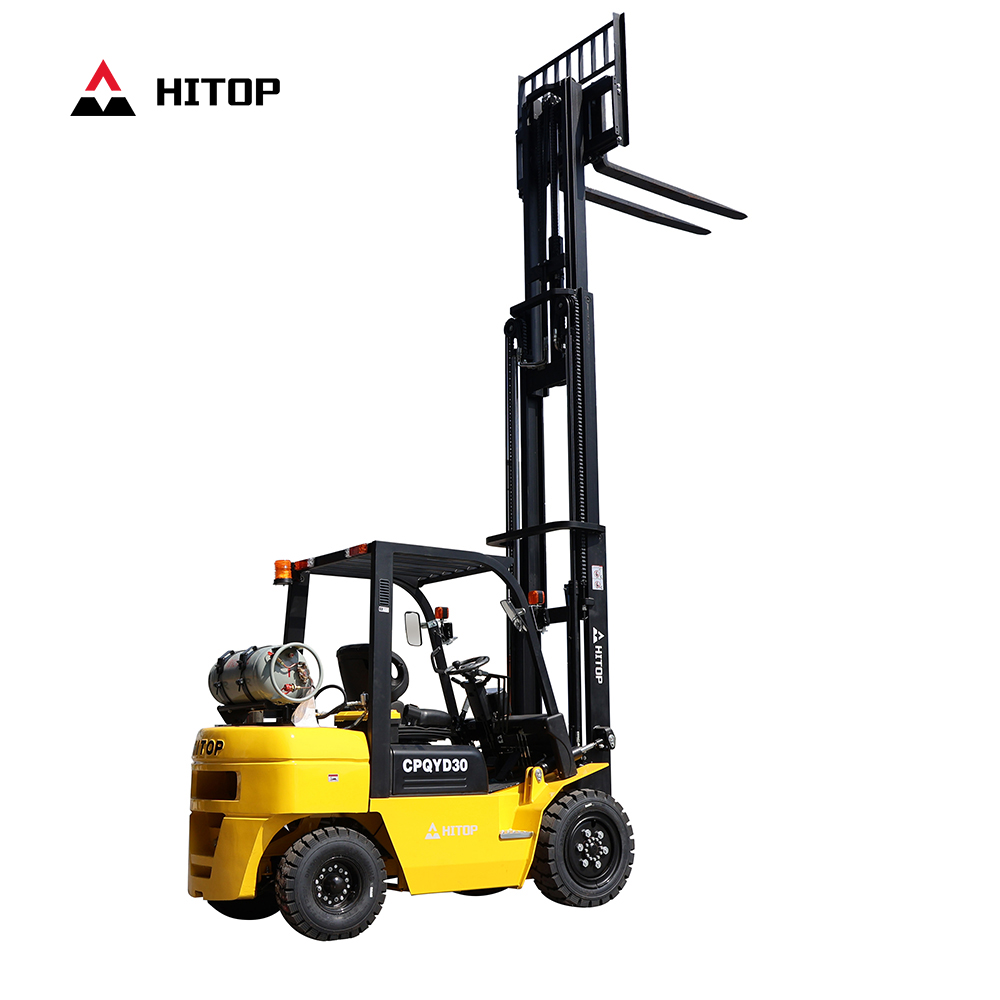

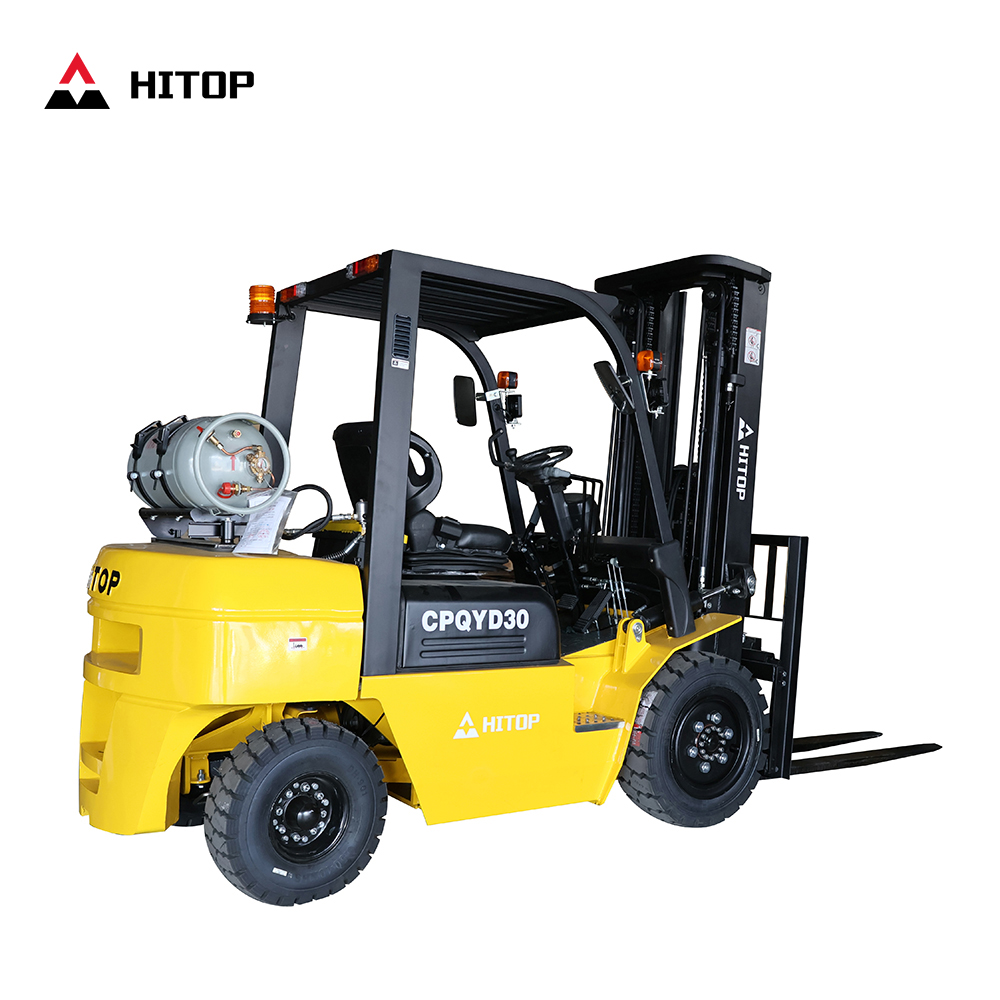

| General | 1 | Model | CPQYD30 | CPQYD35 | |
| 2 | Rated capacity | kg | 3000 | 3500 | |
| 3 | Load center | mm | 500 | 500 | |
| 4 | Power type | Gasoline/LPG | |||
| 5 | Transmission | Hydraulic | |||

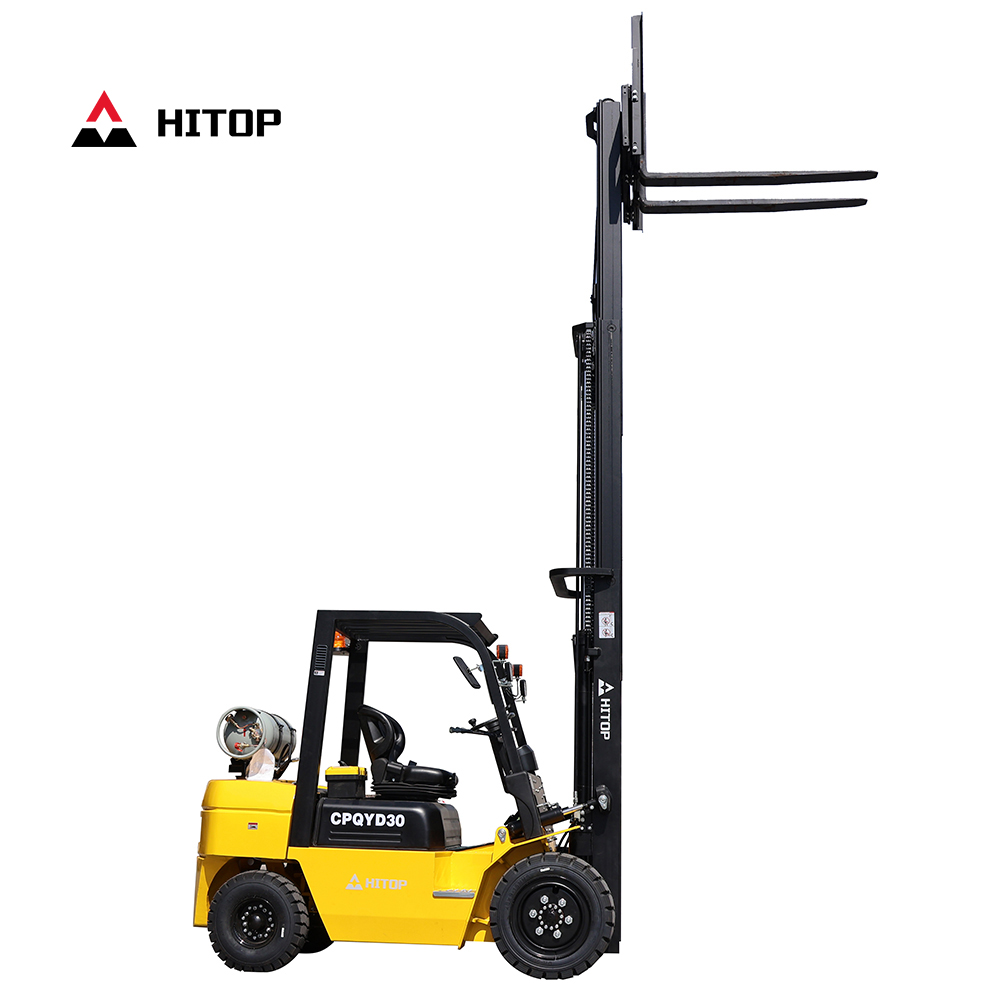

| Dimensions | 6 | Lifting height | mm | 3000 | 3000 |
| 7 | Free lifting height | mm | 80 | 80 | |
| 8 | Turning radius | mm | 2500 | 2500 | |
| 9 | Overall length | mm | 3800 | 3800 | |
| 10 | Overall width | mm | 1230 | 1230 | |
| 11 | Overall height (mast lowered) |
mm | 2110 | 2110 | |
| 12 | Overall height (mast raised) |
mm | 4270 | 4270 | |
| 13 | Overall height (overhead guard) |
mm | 2110 | 2110 | |
| 14 | Fork length | mm | 1220 | 1220 | |
| 15 | Fork width | mm | 125 | 125 | |
| 16 | Fork thickness | mm | 45 | 50 | |
| Performance | 17 | Max. driving speed (with/without load) |
km/h | 18/20 | 18/20 |
| 18 | Max. lifting speed (with load) |
mm/s | 400 | 375 | |
| 19 | Max. traction (with/without load) |
kn | 15.5/10.5 | 16/11 | |
| 20 | Gradeability (with/without load) |
% | 15/20 | 15/20 | |
| 21 | Tilting angles (forward/backward) |
° | 6/12 | 6/12 | |
| 22 | Service weight | kg | 4320 | 4580 | |
| Engine | 23 | Engine model | BY491GP engine | BY491GP engine |
|
| 24 | Power | kw | 41 | 41 | |
| 25 | Rated speed | rpm | 2800 | 2800 | |
| 26 | Displacement | L | 2.237 | 2.237 | |
| 27 | No. of cylinder | 4 | 4 | ||
| Wheel | 28 | Front overhang | mm | 465 | 465 |
| 29 | Wheel base | mm | 1700 | 1900 | |
| 30 | Front tread | mm | 1000 | 1000 | |
| 31 | Rear tread | mm | 970 | 970 | |
| 32 | Front tire | 28*9-15 | 28*9-15 | ||
| 33 | Rear tire | 6.50-10 | 6.50-10 | ||
