Main Information |
1 |
Model |
Unit |

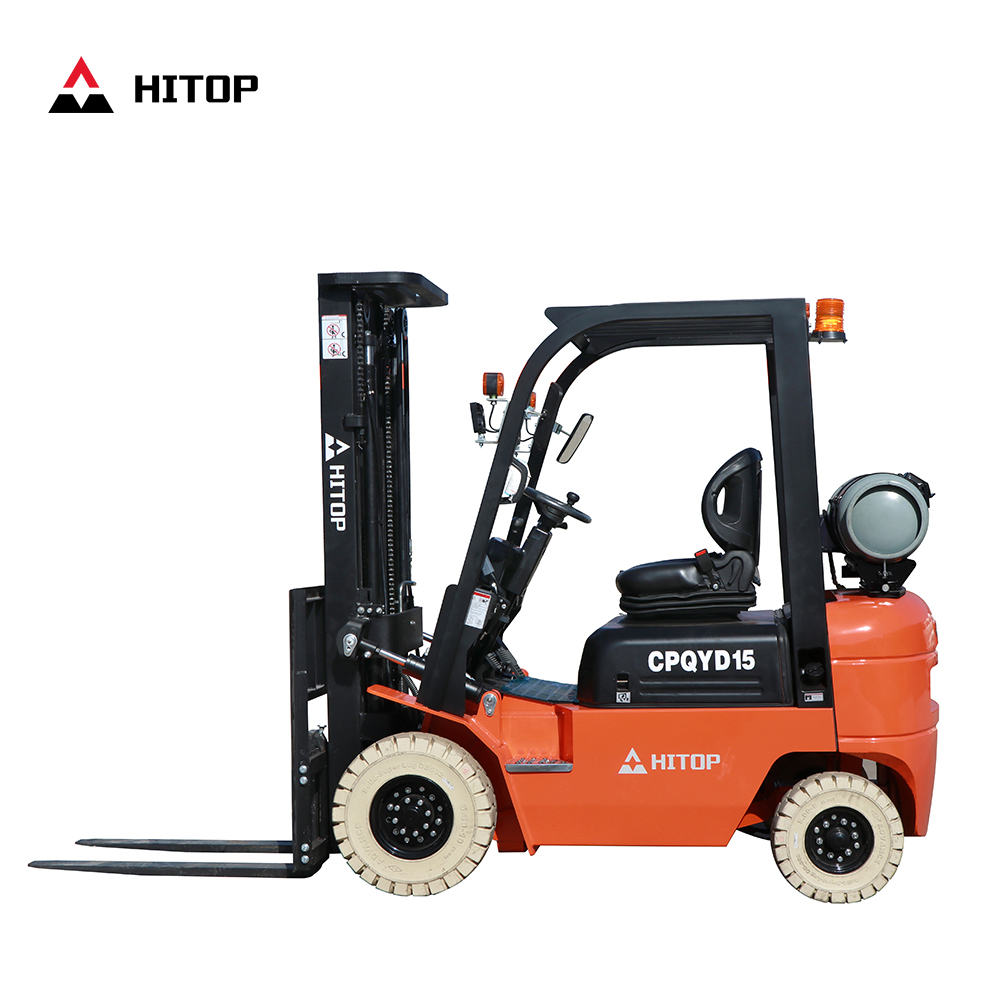

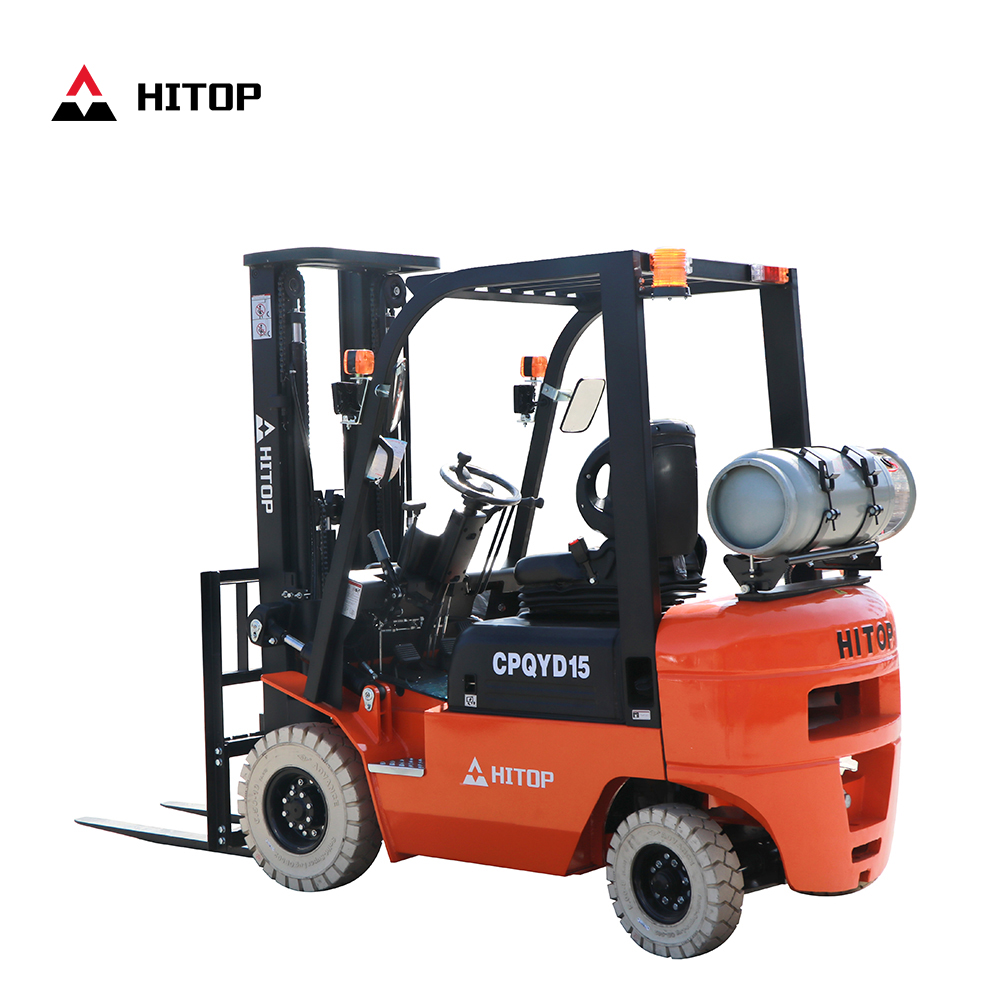

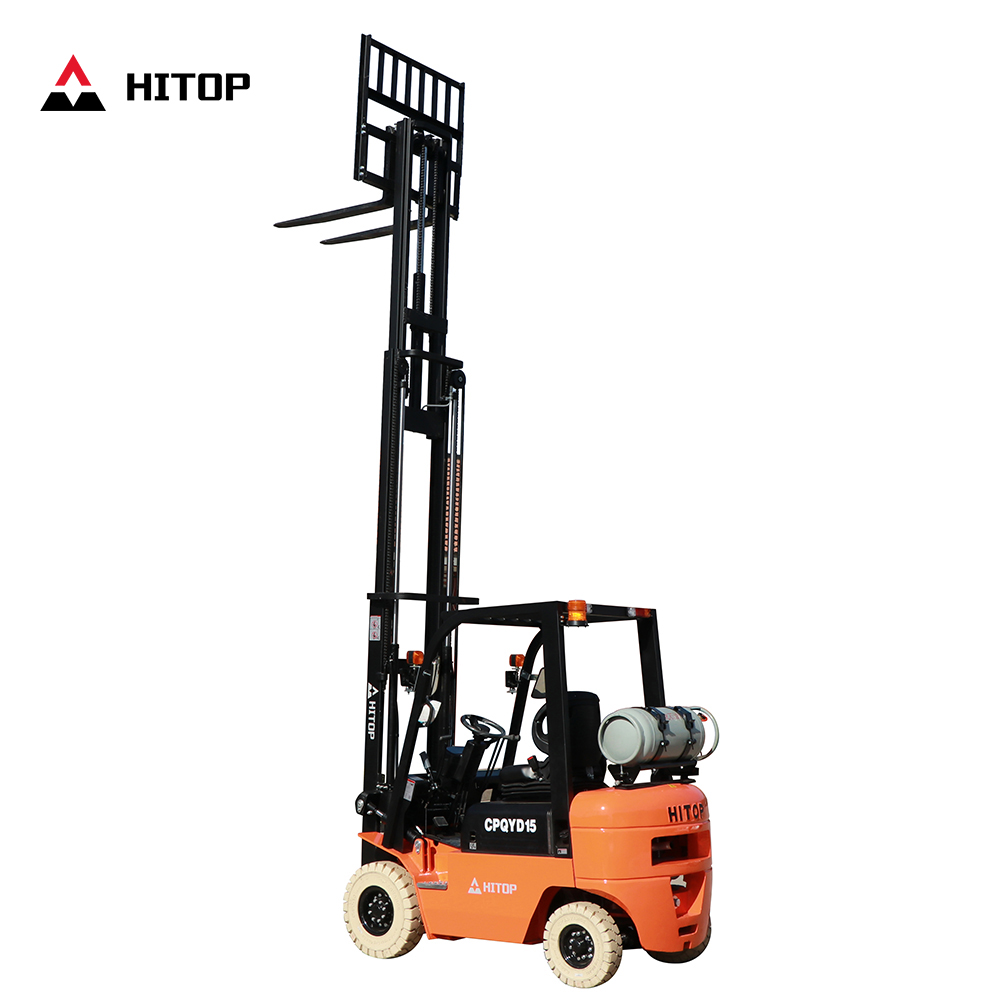

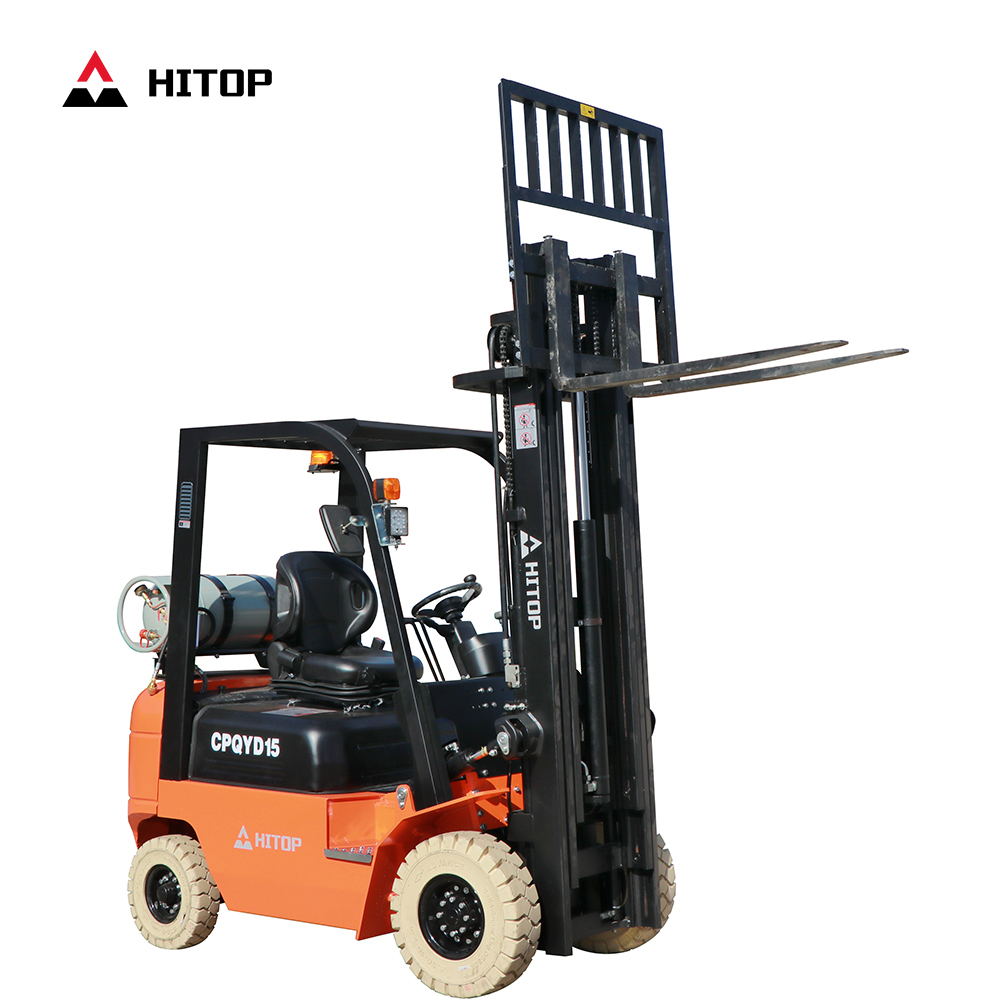

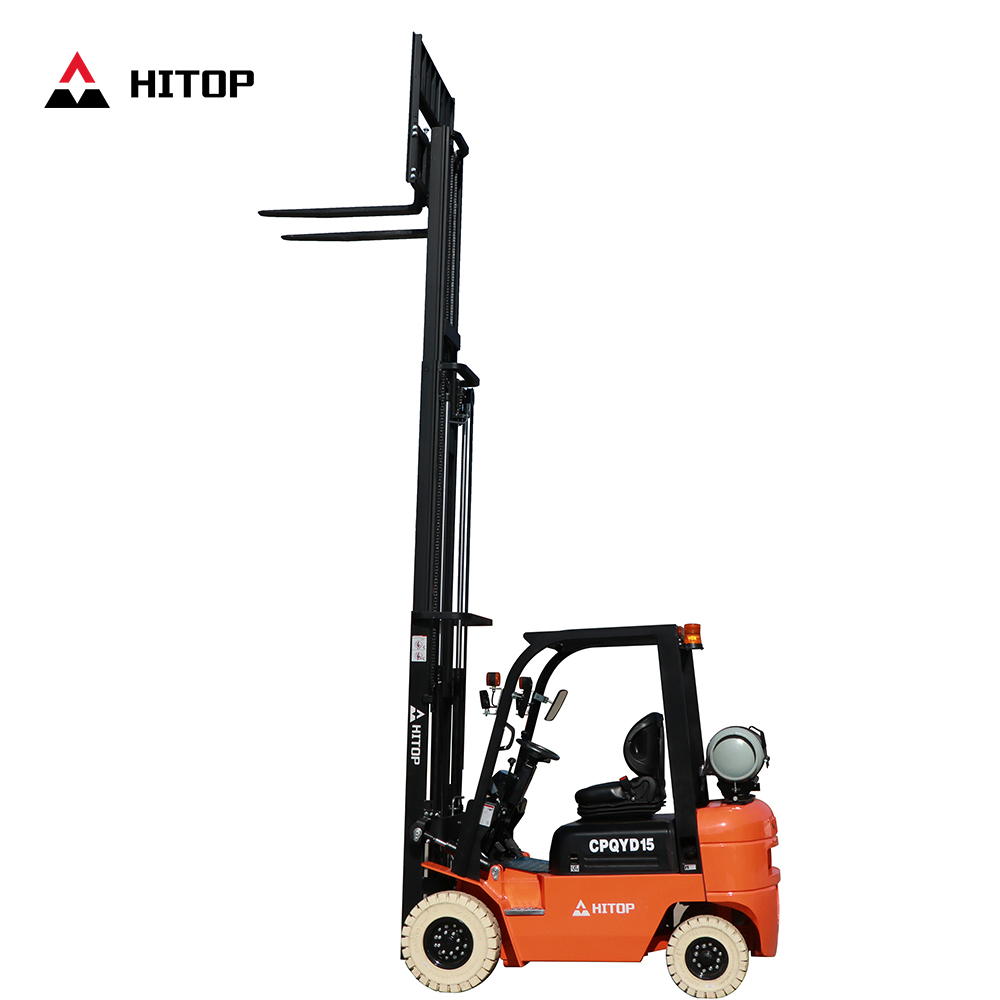

CPQYD15 |
2 |
Power type |
Gasoline/Liquefied gas/Natural gas |
3 |
Rated capacity |
kg |
1500 |
4 |
Load center |
mm |
500 |
5 |
Operator type |
Drive in seat |
Size |
6 |
Max. lift height of mast with Load-backrest |
mm |
4030 |
7 |
Max.lift height of fork(standard) |
mm |
3000 |
8 |
Height of mast (standard) |
mm |
1985 |
9 |
Free lift height(standard) |
mm |
125 |
10 |
Height of Load-backrest |
mm |
960 |
11 |
Distance from seat to overhead guard |
|
mm |
1015 |
12 |
Front wheel overhead |
mm |
2070 |
13 |
Length with fork |
mm |
2230 |
14 |
Front overhang |
mm |
420 |
15 |
Rear overhang |
mm |
424 |
16 |
Wheel base |
mm |
1400 |
17 |
The height of traction pin |
mm |
230 |
18 |
Min. ground clearance |
mm |
100 |
19 |
Overall width |
mm |
1070 |
20 |
The distance between forks |
|
mm |
910/125 |
21 |
Tread(front /rear) |
mm |
890/920 |
22 |
Min. Turning radius(outside) |
|
mm |
2060 |
23 |
Min. Turning radius(inside) |
mm |
130 |
24 |
Min. Intersecting aisle |
mm |
1865 |
25 |
Mast tilt angle |
deg |
6° / 12° |
26 |
Fork size |
mm |
920X100X45 |
Performance |
27 |
Speeds |
Max.Drive speeds(with/without load) |
km/h |
13.5/14.5 |
28 |
Lifting speeds (with load) |
mm/s |
460/500 |
29 |
Lowering speeds(with /without full load) |
mm/s |
460/550 |
Weight |
30 |
Total weight |
kg |
2680 |
