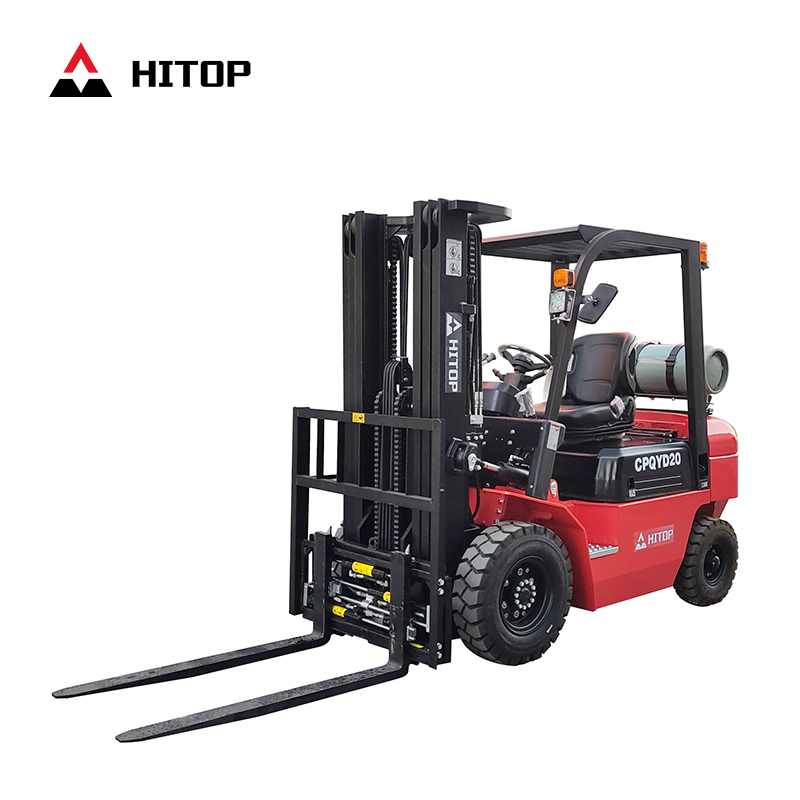

Gasoline&LPG Forklift CPQYD20

Item No.: CPQYD20
Gasoline&LPG Forklift CPQYD20
  • Rated Lifting Capacity2000kg
  • Lifting Height3000mm
  • Load Center500mm
  • Min. Truning Radius2450mm
  • Engine ModelBY491GP
  • Rated Power41kw
  • More Less
    Description Review
    Description
    Product Features
    LPG and gasoline as fuel, more environmental.
    Seat with safety belt and steady bar.
    Low center of gravity, small turning radius, more stable and reliable.
    Safe overhead guard.
    Hydraulic gear-box and hydraulic steering
    Dual air filter.
    Streamline balance weight.
    For LPG/Gasoline forklift, you can choose China engine, Nissan K25 engine andMitsubishi 4G64 engine.
    Optional mast: 2-stage 3.3m/3.5m/4m mast; 3-stage 4.5m/5m/5.5m/6m/7.3m mast.


    Product Specifications
    General 1 Model   CPQYD20 CPQYD25
    2 Rated capacity kg 2000 2500
    3 Load center mm 500 500
    4 Power type   Gasoline/LPG
    5 Transmission   Hydraulic
    Dimensions 6 Lifting height mm 3000 3000
    7 Free lifting height mm 60 60
    8 Turning radius mm 2450 2450
    9 Overall length mm 3605 3605
    10 Overall width mm 1160 1160
    11 Overall height
    (mast lowered)
    mm 2095 2095
    12 Overall height
    (mast raised)
    mm 4080 4080
    13 Overall height
    (overhead guard)
    mm 2095 2095
    14 Fork length mm 1070 1070
    15 Fork width mm 100 122
    16 Fork thickness mm 40 40
    Performance 17 Max. driving speed
    (with/without load)
    km/h 17/19 17/19
    18 Max. lifting speed
    (with load)
    mm/s 400 400
    19 Max. traction
    (with/without load)
    kn 14/9 15/10
    20 Gradeability
    (with/without load)
    % 15/20 15/20
    21 Tilting angles
    (forward/backward)
    ° 6/12 6/12
    22 Service weight kg 3320 3600
    Engine 23 Engine model   BY491GP BY491GP
    24 Power kw 41 41
    25 Rated speed rpm 2800 2800
    26 Displacement L 2.237 2.237
    27 No. of cylinder   4 4
    Wheel 28 Front overhang mm 451 451
    29 Wheel base mm 1640 1640
    30 Front tread mm 970 970
    31 Rear tread mm 970 970
    32 Front tire   7.00-12 7.00-12
    33 Rear tire   6.00-9 6.00-9
