Electric Forklift CPD25

Item No.: CPD25

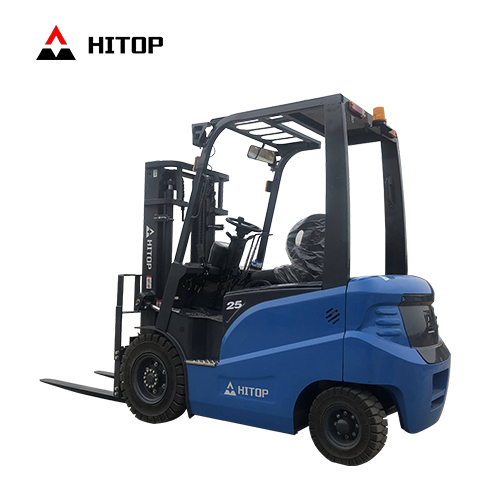

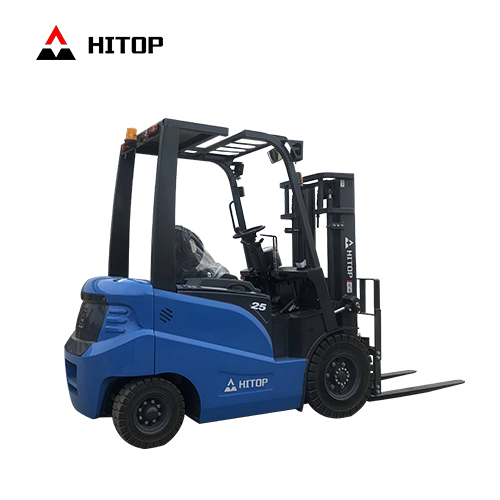

CPD25 Electric Forklift Truck
  • Rated Lifting Capacity2.5T
  • Lifting Height3M
  • Load Center500MM
  • Min. Truning Radius2050MM
  • Battery Voltage48V
  • Battery Capacity500AH
  • Drive ModeBattery
  • More Less
    Description Review
    Description
    Product Features

    Environment friendly
    1. Zero emission, no pollution
    2. Low noise, quiet, comfortable operation
    3. Energy efficiency, super low cost power consumption
    4. Professional matching design of vehicle components, with the use of AC controlling renewable energy technologies, the forklift is more energy-saving, and working hour of the battery life is extended by about 10%~15%.

    High reliability
    1. Both driving and pump motors are maintenance-free AC motors brushless. (CPD20, CPD25, CPD30);
    2. International famous brand electric motor controller (SANTROLL, CURTIS, INMOTION, ZAPI, etc.), which is superior in intelligence.
    3. Long operational life.
    4. Powerful lead acid battery. ( Optional lithium battery)
    5. Standard with solid tires.

    Simpler maintenance
    1. Equipped with a large-screen LCD display instrument, which can display the vehicle running status, with fault display and disoperation alarm functions;
    2. Remove the rear cover of the counterweight, and you can directly inspect the electrical control

    Human comfort operation
    1. Standard steering wheel start steering function to reduce steering operation steps;
    2. A wide-view mast is standard to enhance the driving experience, and the mast and hose pulley are more compact;
    3. The large arc top guard and the grid frame with better angle increase the driver's upper field of vision.
    4. Optimized battery layout and counterweight design to increase rear vision;
    5. The operating space under the foot increases, the accelerator pedal area increases, and the brake pedal area increases.

    High safety
    1. Tailless body structure, low center of gravity and high lateral stability;
    2. The rear axle rotation point is set high to improve the lateral stability of the vehicle;
    3. Intelligent deceleration turning design, improve the stability of vehicle during travelling to avoid rolling and tipping argo.
    4. Automatic adaptation of deceleration ramp feature is available in our electric forklift trucks. It assists in prevention of over voltage fault, in case the user has set the deceleration ramp value very low for the high inertia applications, by automatically adapting the deceleration ramp.


    Product specifications
    Model Unit CPD25
    Power type   Battery
    Rated load KG 2500
    Load center distance mm 500
    Driving type   Seat
    Length With fork    L1          mm 3380
    Without fork  L2    2310
    Whole Width              B 1150
    Height Overall height
    (mast lowered)
    H1
    2000
    Overall height
    to overhead guard
    H2
    2145
    Overall height
    (mast extend)
    H3
    3995
    Distance from seat to top light   L3 1020
    Wheel  base         L4 1515
    Front overhang        Y 483
    Back overhang        L5 400
    Front wheel tread     R 970
    Back wheel tread      P 950
    Min Floor clearance    F 135
    Max lifting height      H 3000
    Free lifting height      H4 170
    Fork  changing        S 1024/200
    Min Turning radius      WA 2050
    Min Right angle aisle width    RA 3760
    Frame angle   a/β ° 6°/12°
    Max  lifting speed without goods mm/s 380
    Max lifting speed with full  goods 280
    Max speed without goods Km/h 15
    Max speed with full goods 14
    Max climbing angle ≤15
    Whole weight Kg 4200
    Number of wheels   2x/2
    Tyre type (Front/Rear)   Solid tyre
    Front Tyre   7.00-12
    Rear Tyre   18x7-8
    Hand Brake   Hydraulic Pedal
    Brake  type   M-Hand
    Battery Volt/ capacity V/Ah 48/500
    Driving motor power Kw 11.0AC
    Oil pump motor power 12.0AC
    Container loading plan (numbers) 20GP 2
    40HQ 6
