Electric Forklift CPD18

Item No.: CPD18

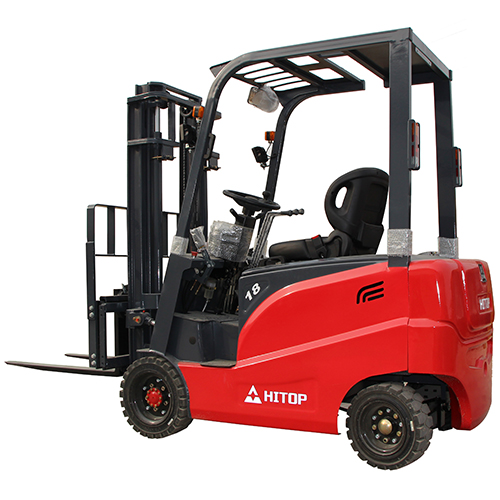

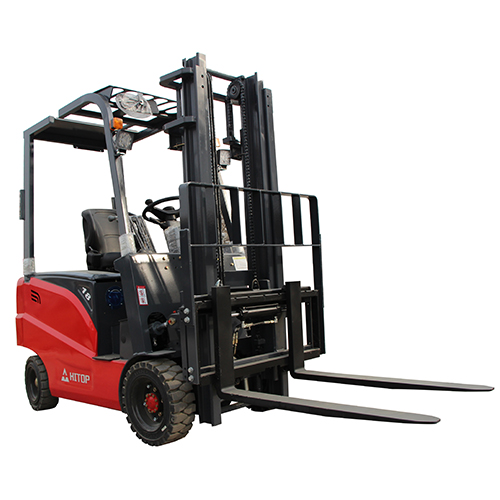

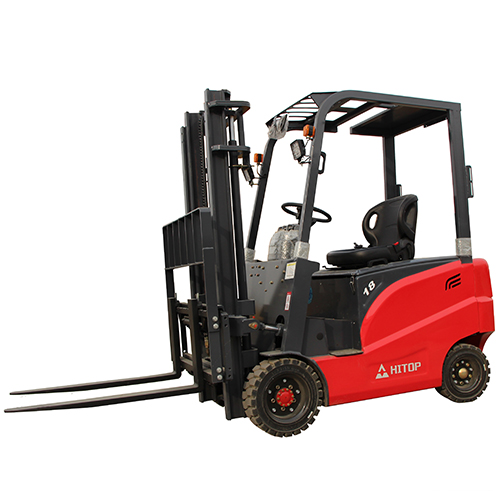

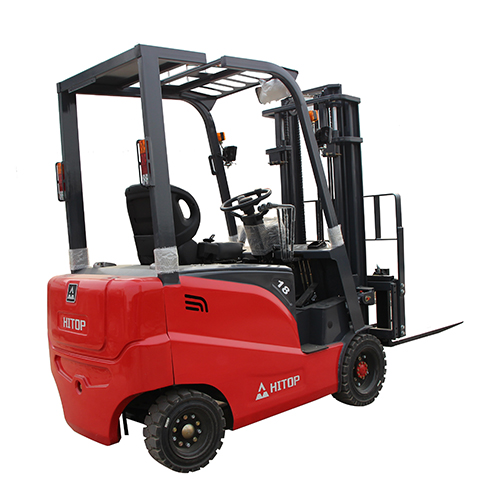

CPD18 Electric Forklift Truck
  • Rated Lifting Capacity1.8T
  • Lifting Height3M
  • Load Center500MM
  • Min. Truning Radius2100MM
  • Battery Voltage48V
  • Battery Capacity230AH
  • Drive ModeBattery
  • More Less
    Description Review
    Product Features

    Environment friendly
    1. Zero emission, no pollution
    2. Low noise, quiet, comfortable operation
    3. Energy efficiency, super low cost power consumption
    4. Professional matching design of vehicle components, with the use of AC controlling renewable energy technologies, the forklift is more energy-saving, and working hour of the battery life is extended by about 10%~15%.

    High reliability
    1. Both driving and pump motors are maintenance-free AC motors brushless. (CPD20, CPD25, CPD30);
    2. International famous brand electric motor controller (SANTROLL, CURTIS, INMOTION, ZAPI, etc.), which is superior in intelligence.
    3. Long operational life.
    4. Powerful lead acid battery. ( Optional lithium battery)
    5. Standard with solid tires.

    Simpler maintenance
    1. Equipped with a large-screen LCD display instrument, which can intuitively display the vehicle running status, with fault display and disoperation alarm functions;
    2. Remove the rear cover of the counterweight, and you can directly inspect the electrical control

    Human comfort operation
    1. Standard steering wheel start steering function to reduce steering operation steps;
    2. A wide-view mast is standard to enhance the driving experience, and the mast and hose pulley are more compact;
    3. The large arc top guard and the grid frame with better angle increase the driver's upper field of vision.
    4. Optimized battery layout and counterweight design to increase rear vision;
    5. The operating space under the foot increases, the accelerator pedal area increases, and the brake pedal area increases.

    High safety
    1. Tailless body structure, low center of gravity and high lateral stability;
    2. The rear axle rotation point is set high to improve the lateral stability of the vehicle;
    3. Intelligent deceleration turning design, improve the stability of vehicle during travelling to avoid rolling and tipping argo.
    4. Automatic adaptation of deceleration ramp feature is available in our electric forklift trucks. It assists in prevention of over voltage fault, in case the user has set the deceleration ramp value very low for the high inertia applications, by automatically adapting the deceleration ramp.

    Product specifications
    Model Unit CPD18
    Power type   Battery
    Rated load KG 1800
    Load center distance mm 500
    Driving type   Seat
    Length With fork     L1               mm 3120
    Without fork  L2 2050
    Whole Width              B 1050
    Height Overall height
    (mast lowered)
    Overall height to overhead guard
    Overall height
    (mast extend)
    Distance from seat to top light   L3 1020
    Wheel  base         L4 1400
    Front overhang        Y 320
    Back overhang        L5 330
    Front wheel tread     R 880
    Back wheel tread      P 830
    Min Floor clearance    F 100
    Max lifting height     H 3000
    Free lifting height     H4 80
    Fork  changing       S 925/200
    Min Turning radius    WA 2100
     Min Right angle aisle width    RA 3400
    Frame angle   a/β ° 6°/12°
    Max  lifting speed without goods mm/s 350
    Max lifting speed with full  goods 300
    Max speed without goods Km/h 15
    Max speed with full goods 14
    Max climbing angle 10
    Whole weight Kg 3200
    Number of wheels   2x/2
    Tyre type (Front/Rear)   Solid tyre
    Front Tyre   18*7 -10
    Rear Tyre   18*6-8
    Hand Brake   Hydraulic Pedal
    Brake  type   M-Hand
    Battery Volt/ capacity V/Ah 48/230
    Driving motor power Kw 7.5AC
    Oil pump motor power 10AC
    Container loading plan (numbers) 20GP 4
    40HQ 11
