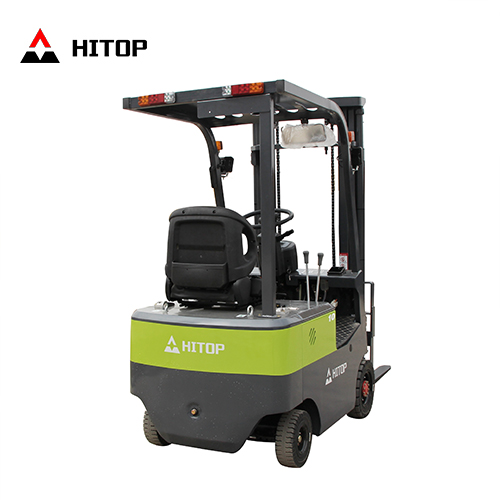

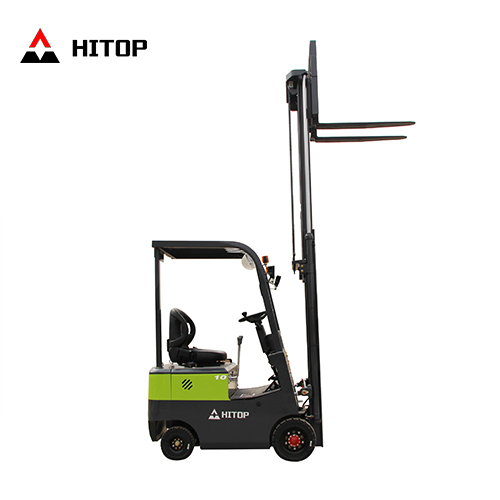

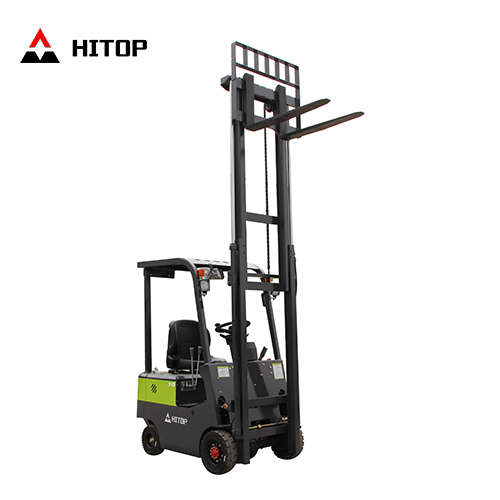

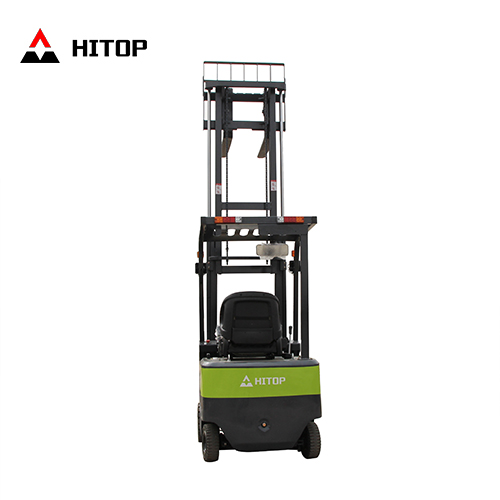

Model | Unit | CPD10 | |
Power type | Battery | ||
Rated load | KG | 1000 | |
Load center distance | mm | 400 | |
Driving type | Seat | ||
Length | With fork L1 | mm | 2592 |
Without fork L2 | 1652 | ||
Whole Width B | 940 | ||
Height | Overall height (mast lowered) H1 |
2040 | |
Overall height to overhead guard H2 |
1950 | ||
Overall height (mast extend) H3 |
3820 | ||
Distance from seat to top light L3 | 970 | ||
Wheel base L4 | 1020 | ||
Front overhang Y | 327 | ||
Back overhang L5 | 313 | ||
Front wheel tread R | 840 | ||
Back wheel tread P | 741 | ||
Min Floor clearance F | 90 | ||
Max lifting height H | 3000 | ||
Free lifting height H4 | 80 | ||
Fork changing S | 820/190 | ||
Min Turning radius WA | 1800 | ||
Min Right angle aisle width RA | 2000 | ||
Frame angle a/β | (°) | 6°/12° | |
Max lifting speed without goods | mm/s | 250 | |
Max lifting speed with full goods | 220 | ||
Max speed without goods | Km/h | 12 | |
Max speed with full goods | 11 | ||
Max climbing angle | % | ≤10 | |
Whole weight | Kg | 1580 | |
Number of wheels | 2x/2 | ||
Tyre type (Front/Rear) | Solid tyre | ||
Front Tyre | 15x4 1/2-8 | ||
Rear Tyre | 3.50-5 | ||
Hand Brake | Hydraulic Pedal | ||
Brake type | M-Hand | ||
Battery Volt/ capacity | V/Ah | 12Vx4/150 | |
Driving motor power | Kw | 3.75AC | |
Oil pump motor power | 3.0AC | ||
Container loading plan (numbers) | 20GP | 6 | |
40HQ | 14 |
