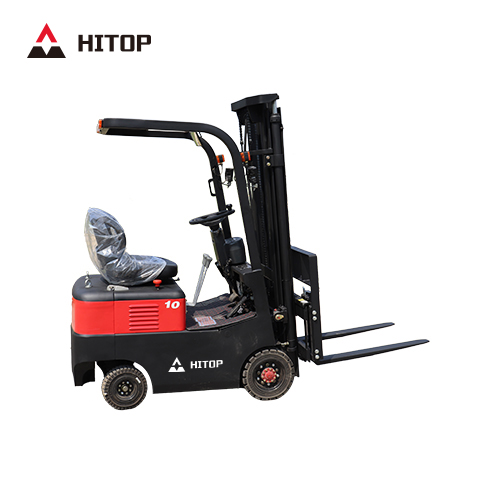

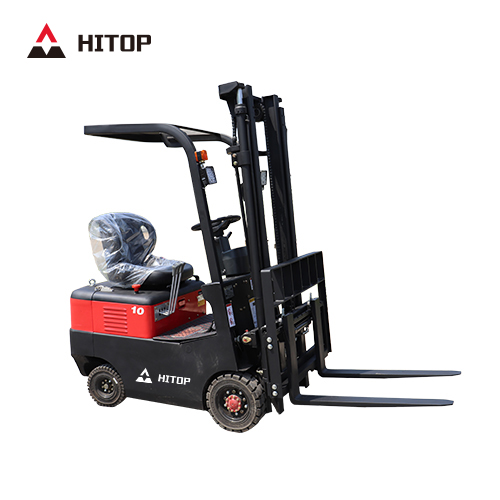

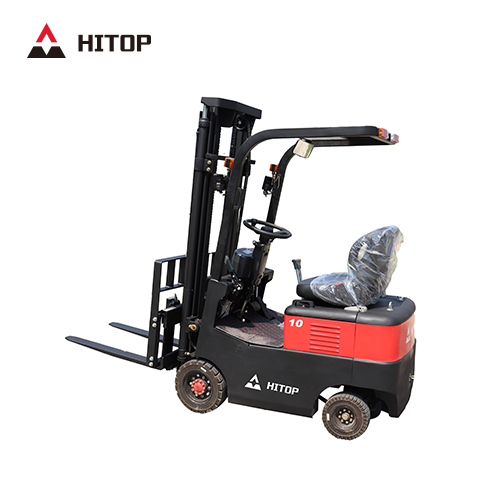

1 ton Electric Forklift Truck
Battery Powered Forklift Truck
Main Features:
1 ton
electric forklift with professional matching design of vehicle components and the use of AC controlling renewable energy technologies, the forklift is more energy-saving, and working hour of the battery life is extended by about 10%~15%.
International famous brand electric motor controller (SANTROLL, CURTIS, INMOTION, ZAPI, etc.), which is superior in intelligence.
Long operational life.Powerful lead acid battery. ( Optional lithium battery)
Product specifications:
Model |
Unit |
CPD10 |
Power type |
|
Battery |
Rated load |
KG |
1000 |
Load center distance |
mm |
400 |
Driving type |
|
Seat |
Length |
With fork L1 |
mm |
2560 |
Without fork L2 |
1640 |
Whole Width B |
800 |
Height |
Overall height
(mast lowered)
H1 |
2050 |
Overall height
to overhead guard
H2 |
1900 |
Overall height
(mast extend)
H3 |
3820 |
Distance from seat to top light L3 |
970 |
Wheel base L4 |
1020 |
Front overhang Y |
300 |
Back overhang L5 |
250 |
Front wheel tread R |
700 |
Back wheel tread P |
668 |
Min Floor clearance F |
90 |
Max lifting height H |
3000 |
Free lifting height H4 |
80 |
Fork changing S |
703/190 |
Min Turning radius WA |
1800 |
Min Right angle aisle width RA |
3400 |
Frame angle a/β |
(°) |
6°/12° |
Max lifting speed without goods |
mm/s |
250 |
Max lifting speed with full goods |
220 |
Max speed without goods |
Km/h |
12 |
Max speed with full goods |
11 |
Max climbing angle |
% |
≤10 |
Whole weight |
Kg |
1730 |
Number of wheels |
|
2x/2 |
Tyre type (Front/Rear) |
|
Solid tyre |
Front Tyre |
|
15x4 1/2-8 |
Rear Tyre |
|
3.50-5 |
Hand Brake |
|
Hydraulic Pedal |
Brake type |
|
M-Hand |
Battery Volt/ capacity |
V/Ah |
2X24V/150 |
Driving motor power |
Kw |
4.0AC |
Oil pump motor power |
3.0AC |
Container loading plan (numbers) |
20GP |
6 |
40HQ |
14 |
Product Features:
Environment friendly
1. Zero emission, no pollution
2. Low noise, quiet, comfortable operation
3. Energy efficiency, super low cost power consumption
4. Professional matching design of vehicle components, with the use of AC controlling renewable energy technologies, the forklift is more energy-saving, and working hour of the battery life is extended by about 10%~15%.
High reliability
1. Both driving and pump motors are maintenance-free AC motors brushless. (CPD20, CPD25, CPD30);
2. International famous brand electric motor controller (SANTROLL, CURTIS, INMOTION, ZAPI, etc.), which is superior in intelligence.
3. Long operational life.
4. Powerful lead acid battery. ( Optional lithium battery)
5. Standard with solid tires.
Simpler maintenance
1. Equipped with a large-screen LCD display instrument, which can intuitively display the vehicle running status, with fault display and disoperation alarm functions;
2. Remove the rear cover of the counterweight, and you can directly inspect the electrical control
Human comfort operation
1. Standard steering wheel start steering function to reduce steering operation steps;
2. A wide-view mast is standard to enhance the driving experience, and the mast and hose pulley are more compact;
3. The large arc top guard and the grid frame with better angle increase the driver's upper field of vision.
4. Optimized battery layout and counterweight design to increase rear vision;
5. The operating space under the foot increases, the accelerator pedal area increases, and the brake pedal area increases.
High safety
1. Tailless body structure, low center of gravity and high lateral stability;
2. The rear axle rotation point is set high to improve the lateral stability of the vehicle;
3. Intelligent deceleration turning design, improve the stability of vehicle during travelling to avoid rolling and tipping argo.
4. Automatic adaptation of deceleration ramp feature is available in our electric forklift trucks. It assists in prevention of over voltage fault, in case the user has set the deceleration ramp value very low for the high inertia applications, by automatically adapting the deceleration ramp.
China Electric Forklift Supplier:HITOP
