Main Information |
1.1 |
Brand |
|
HITOP |
1.2 |
Model |
|

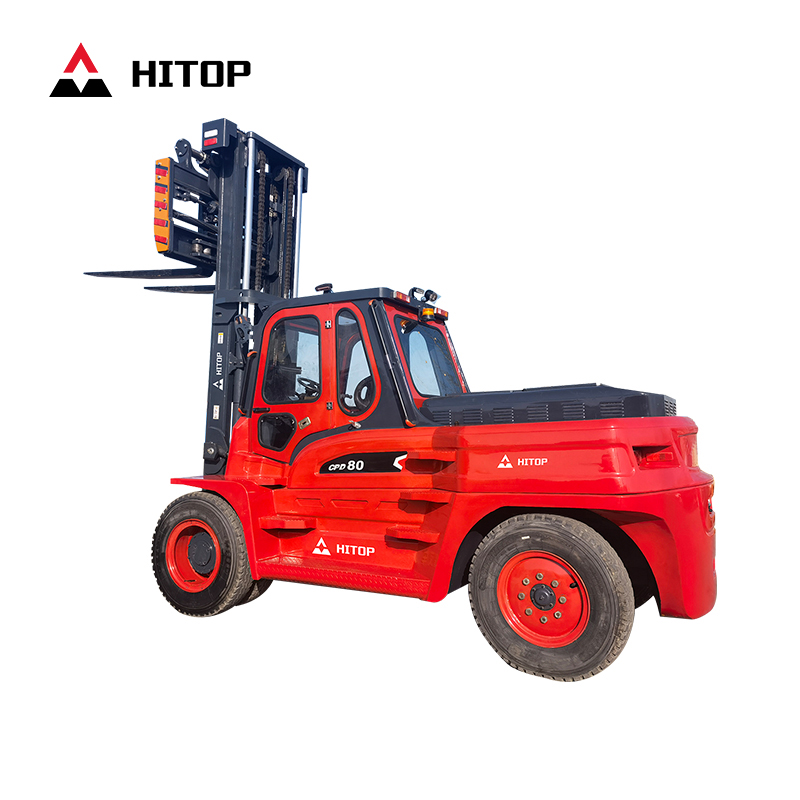

CPD80 |
1.3 |
Operation type |
|
car type |
1.4 |
Load capacity |
kg |
8000 |
1.5 |
Load center |
mm |
500 |
1.6 |
Weight with battery |
kg |
12600 |
Tire,chassis |
2.1 |
Tire Type,Driving wheel/Load wheel |
|
|
Pneumatic tire |
Size |
3.1 |
Mast tilt,Forward/backward |
α/β(°) |
6/12 |
3.2 |
Mast height after mast fall |
mm |
2850 |
3.3 |
Free lift height |
mm |
150 |
3.4 |
Standard Mast height |
mm |
3000 |
3.5 |
Overhead guard height |
mm |
2520 |
3.6 |
Overall length |
mm |
5130 |
3.7 |
Vehicle width |
mm |
2200 |
3.8 |
Fork size |
mm |
1070*125*45 |
3.9 |
Channel width,with 1000X1200mm pallet |
mm |
4520 |
3.1 |
Channel width,with 800X1200mm pallet |
mm |
4560 |
3.11 |
Turning radius |
mm |
3350 |
Performance |
4.1 |
Walking speed,loaded/withoutload |
km/h |
14/15 |
4.2 |
lifting speed,loaded/load |
m/s |
300/400 |
4.3 |
Dropping speed loaded/without load |
m/s |
390/260 |
4.4 |
Maximum traction,loaded |
N |
21000 |
4.5 |
Max grade ability,loaded/without load |
% |
14/15 |
Drive |
5.1 |
Drive motor power |
kw |
25 |
5.2 |
Lifting motor power |
kw |
25.5 |
5.3 |
Level voltage/Capacitance |
V/Ah |
80/500 |
Others |
6.1 |
Drive System |
DC/AC |
