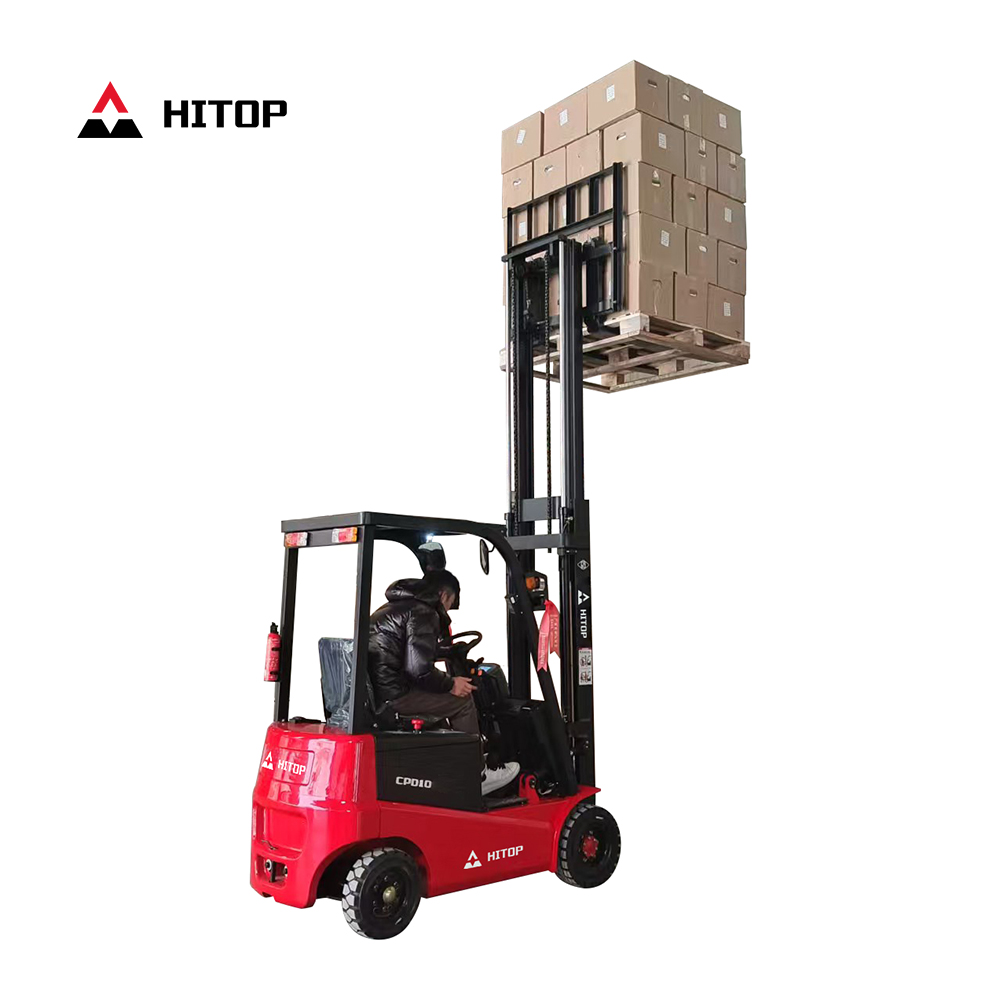

| Model | CPD10 | |
| Power | Electric | |
| Operation | Seated on | |
| Rated Load | kg | 1000 |
| Load center | mm | 500 |
| Wheel base | mm | 1250 |
| Total weight | kg | 1680 |
| Mast lifting height | mm | 3000 |
| Fork height after lowering | mm | 80 |
| Mast static height | mm | 2030 |
| Turning radius | mm | 1780 |
| Right angle channel | mm | 1850 |
| Body length (without fork) | mm | 1870 |
| Body width | mm | 980 |
| Fork spacing | mm | 920 |
| Operation height | mm | 3950 |
| Fork size (length*width*height) | mm | 1070*100*32 |
| Fork width | mm | 300 |
| Lifting speed(with/without load) | mm/s | 260/300 |
| Travel speed(with/without load) | km/h | 12/14 |
| Climbing ability(with/without load) | km/h | 10/12 |
| Wheel type | Solid | |
| Wheels, nember front/rear(x=driven) | 2 x/2 | |
| Wheelbase front/rear | mm | 840/805 |
| Driving wheel size | 16*6-8 | |
| Bearing wheel size | 15*4-5 | |
| Drive motor | kW | 3 |
| Lifting motor | lW | 3 |
| Rated voltage | V | 60 |
| Battery capacity | Ah | 140*5 |
| Charging time | h | 8/10 |
