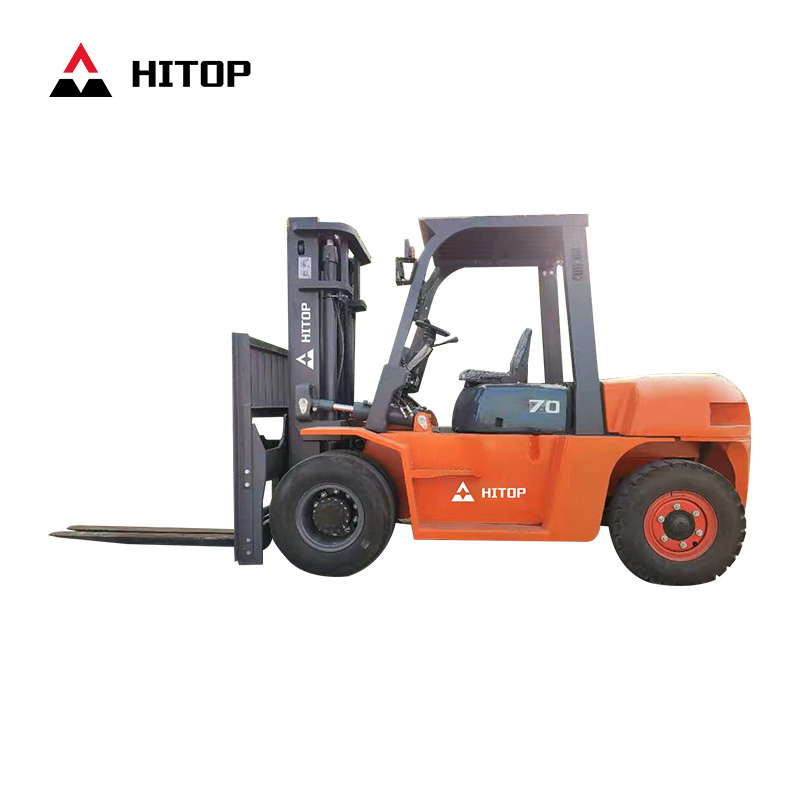

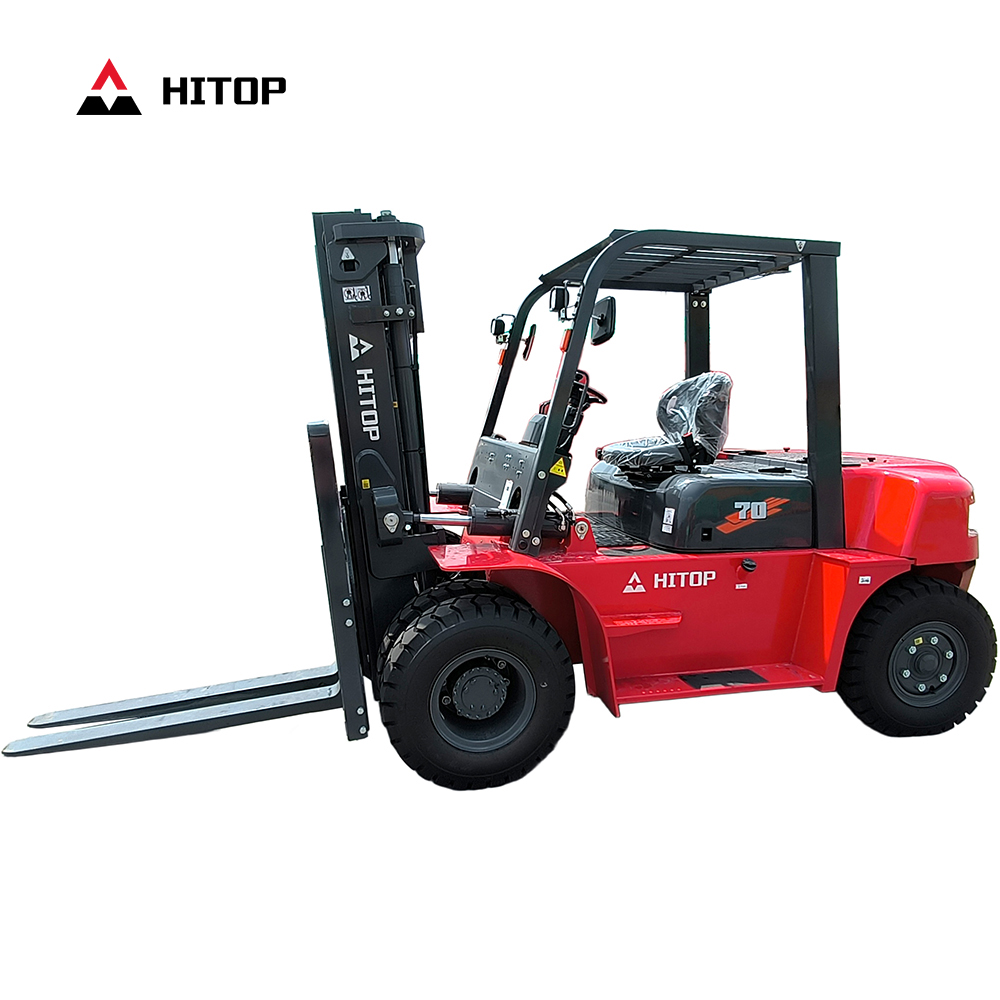

| MODEL | CPCD70 | |
| Load capacity kg | 7000 | |
| Load center mm | 600 | |
| Power type | ||
| Max. lifting speeds(with load) mm/s | 450 | |
| Max. driving speeds(with/without load) km/h | 21/23 | |
| Max towing (with/without load) Kn | 54 | |
| Grade ability(with/without load) % | 20/25 | |
| H1 Lifting height (H1) mm | 3000 | |
| Free lift mm | 150 | |
| Tilting angles (forward α-backward β) ° | 6/12 | |
| Min. turning radius mm | 3450 | |
| Min. Right angle aisle width mm | 3090 | |
| Min. under-clearance mm | 230 | |
| Dimensions | Overall length(including fork) (A) mm | 4850 |
| Overall width (B) mm | 1995 | |
| Overall height(mast lowered) (H) mm | 2500 | |
| Overall height(mast extended) (H2) mm | 4420 | |
| Overall height to overhead guard (H3) mm | 2420 | |
| A1 Fork overhang (A1) mm | 610 | |
| A2 Wheel base (A2) mm | 2250 | |
| Tread | Front tread (B1 ) mm | 1470 |
| Rear tread (B2 ) mm | 1700 | |
| Tire | Front tire | 8.25-15-14 |
| Rear tire | 8.25-15-14 | |
| Total weight kg | 9500 | |
| B3 Fork width (B3) mm | 150 | |
| H4 Fork thickness (H4) mm | 65 | |
| Backrest height mm | 1365 | |
| A3 Fork length (A3) mm | 1220 | |
| Engine | Engine model | Euro II / EURO II |
| Rated power Kw | 85 | |
| Rotate speed at rated power rpm | 2300 | |
| Max. Torque Nm | 425 | |
| Rotate speed at max. Torque rpm | 1700 | |
| Note | ||
| Transmission system | Hydraulic | |
