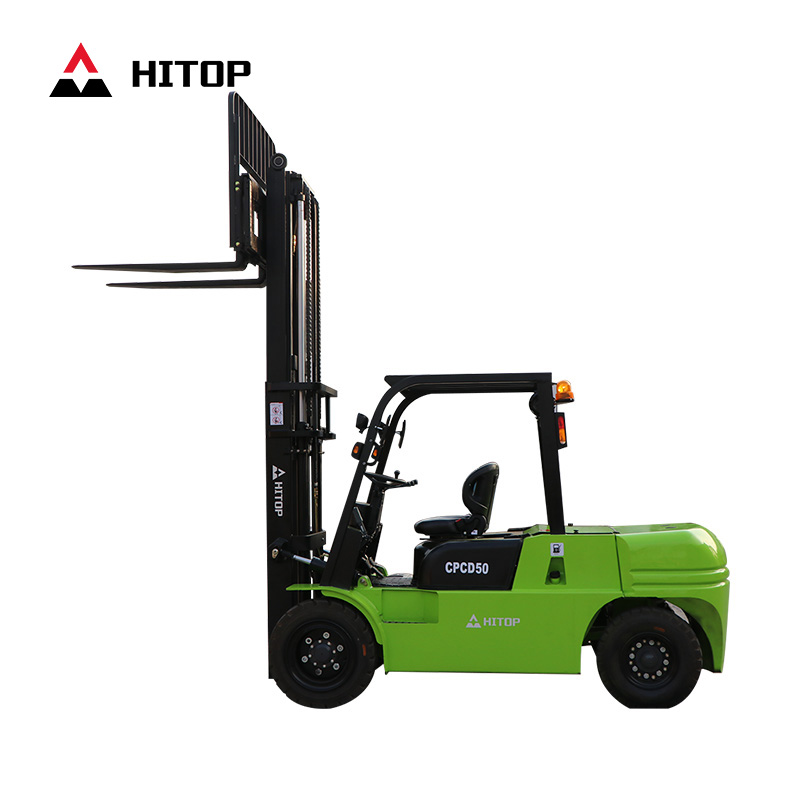

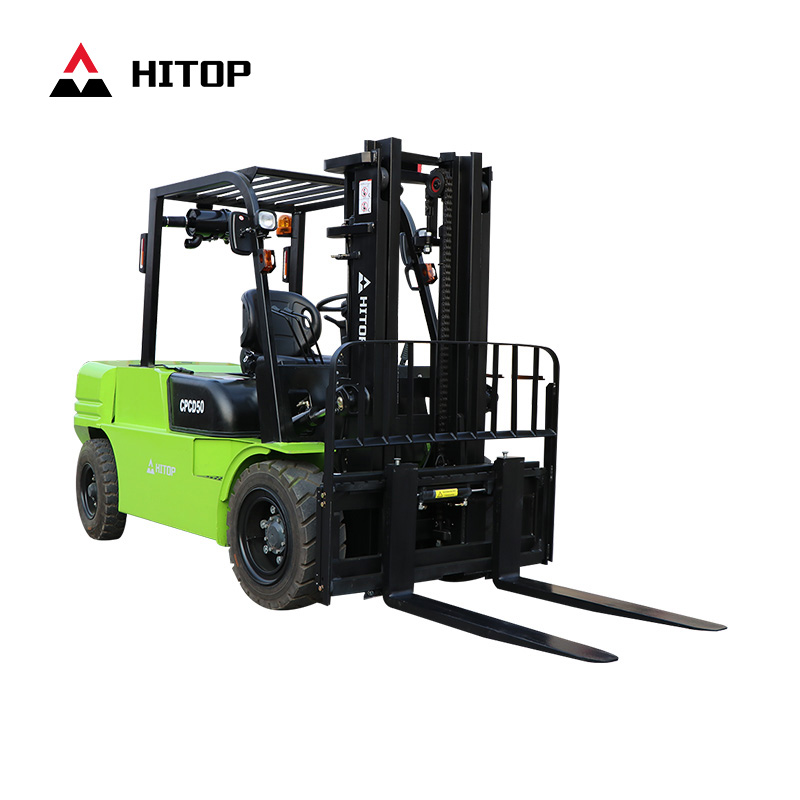

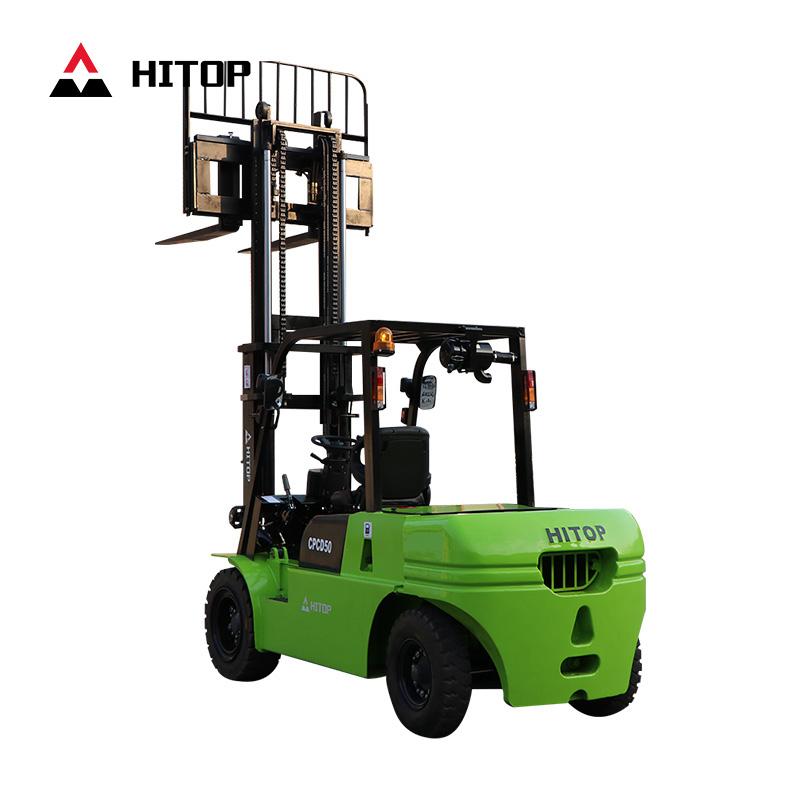

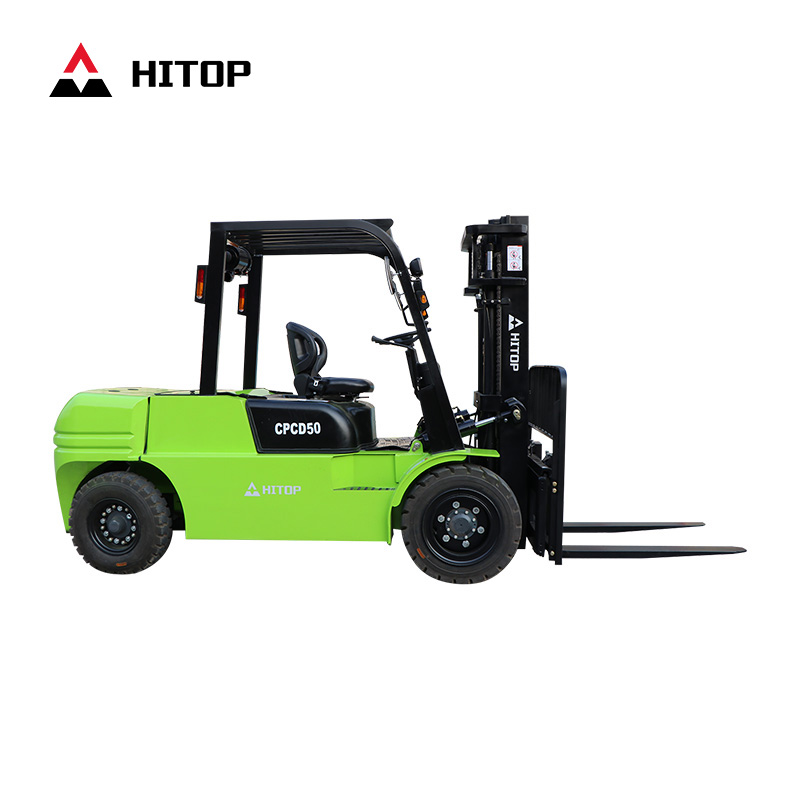

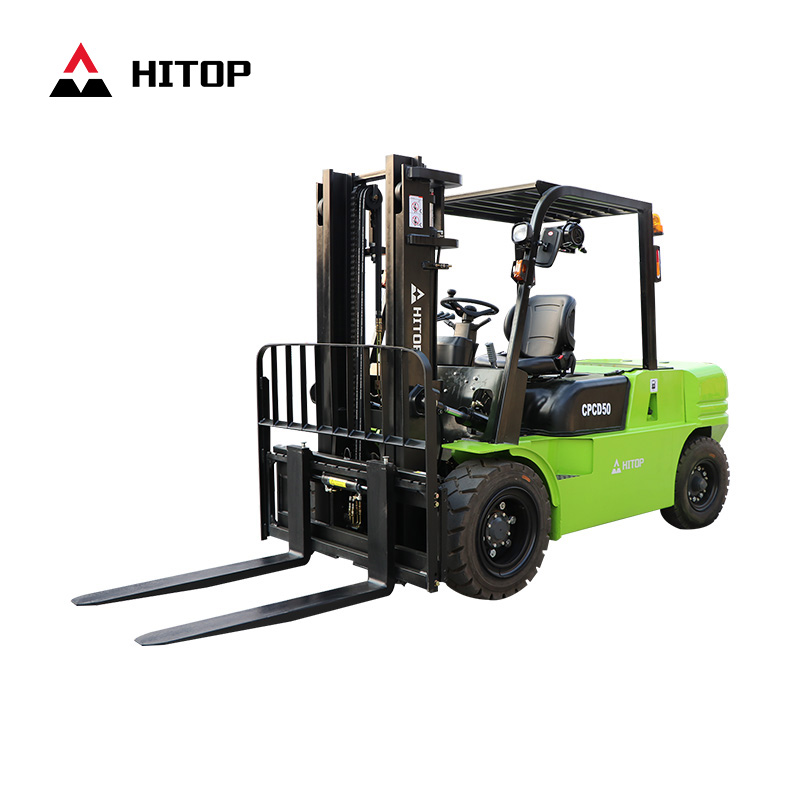

Diesel Forklift CPCD50

Item No.: CPCD50
Diesel Forklift CPCD50
  • Rated Lifting Capacity5000kg
  • Lifting Height3m
  • Load Center600mm
  • Min. Truning Radius3430mm
  • Engine ModelChina Xinchai Diesel Engine
  • Rated Power85kw
  • More Less
    Description Review
    Description
    Product Features
    1. Powerful diesel engine Xinchai (optional ISUZU, Yanmar, etc.)
    2. Hydraulic transmission
    3. LED warning light and rear right
    4. Safe overhead guard
    5. Wider and better view mast
    6. Comfortable seat with safety belt & steady bar for arm


    Product Specifications
    MODEL CPCD50
    Load capacity  kg 5000
    Load center  mm 600
    Power type
    Max. lifting speeds(with load)  mm/s 470
    Max. driving speeds(with/without load)  km/h 21/23
    Max towing (with/without load)  Kn 52
    Grade ability(with/without load)  % 20/25
    H1 Lifting height (H1)  mm 3000
    Free lift  mm 150
    Tilting angles (forward α-backward β)  ° 6/12
    Min. turning radius  mm 3430
    Min. Right angle aisle width  mm 3090
    Min. under-clearance   mm 230
    Dimensions         Overall length(including fork) (A)    mm           4760
    Overall width (B)     mm               1995
    Overall height(mast lowered) (H)     mm 2500
    Overall height(mast extended) (H2)   mm 4420
    Overall height to overhead guard (H3)   mm 2420
    A1 Fork overhang (A1)   mm 630
    A2 Wheel base (A2)   mm 2250
    Tread Front tread (B1 )   mm 1470
    Rear tread (B2 )   mm 1700
    Tire Front tire 8.25-15-14
    Rear tire 8.25-15-14
    Total weight kg 8200
    B3 Fork width (B3)  mm 150
    H4 Fork thickness (H4)  mm 55
    Backrest height  mm 1365
    A3 Fork length (A3)  mm 1220
    Engine Engine model Euro II / EURO II
    Rated power Kw 85
    Rotate speed at rated power rpm 2300
    Max. Torque Nm 425
    Rotate speed at max. Torque  rpm     1700
    Note
    Transmission system Hydraulic
