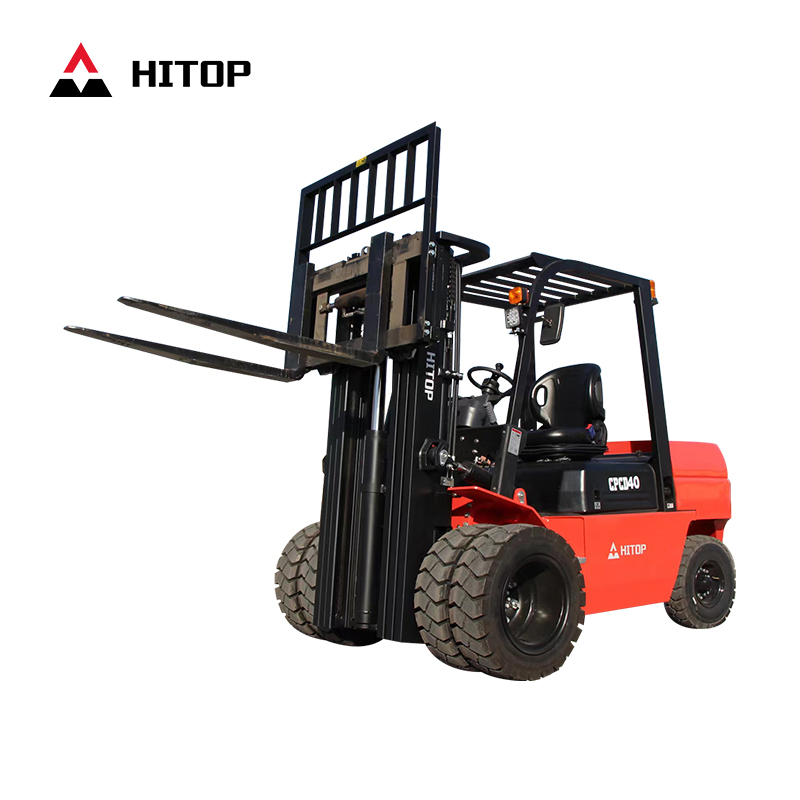

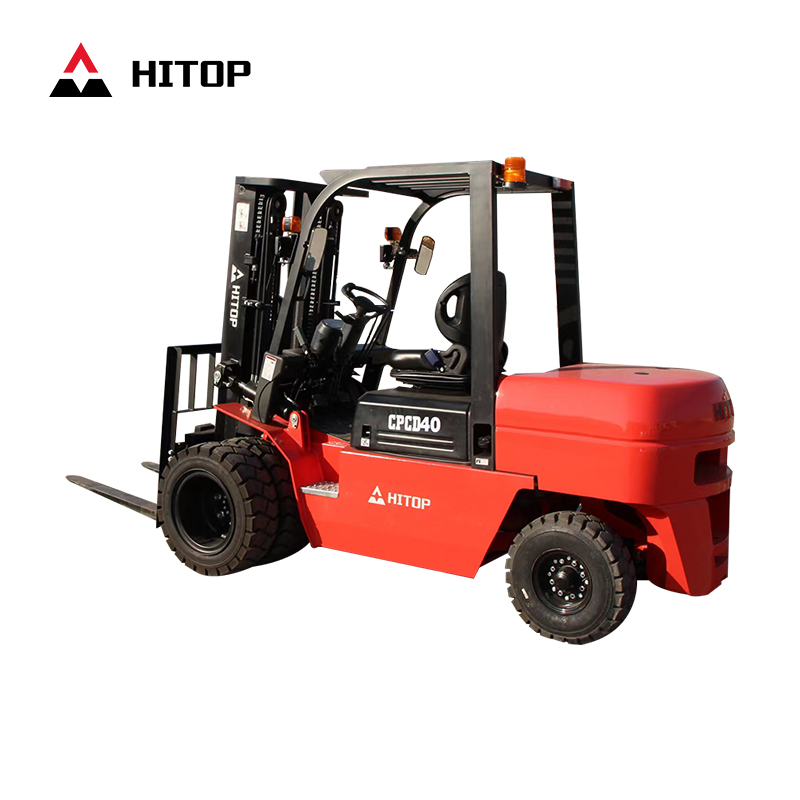

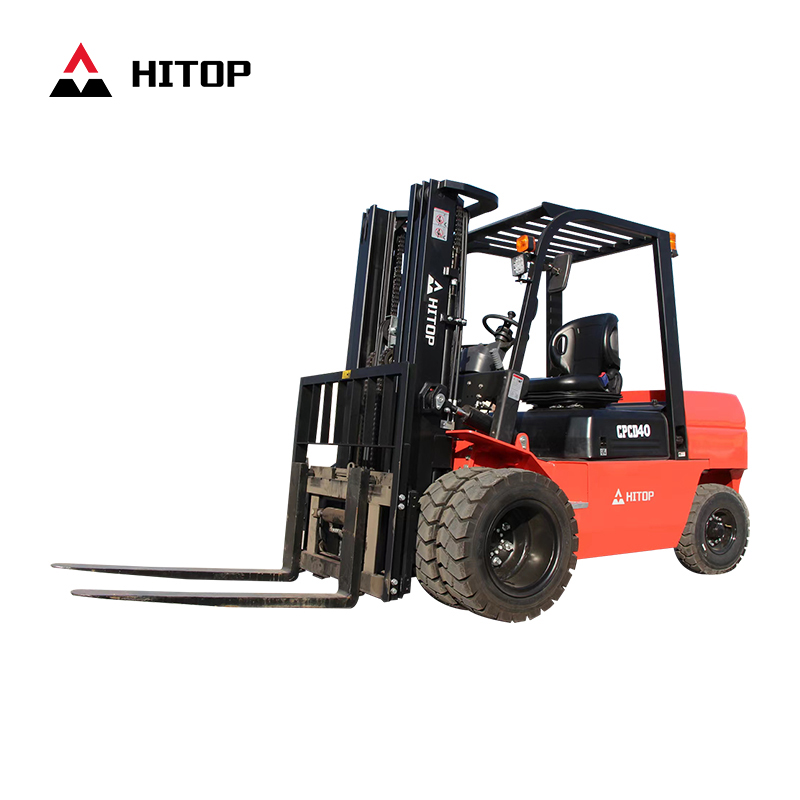

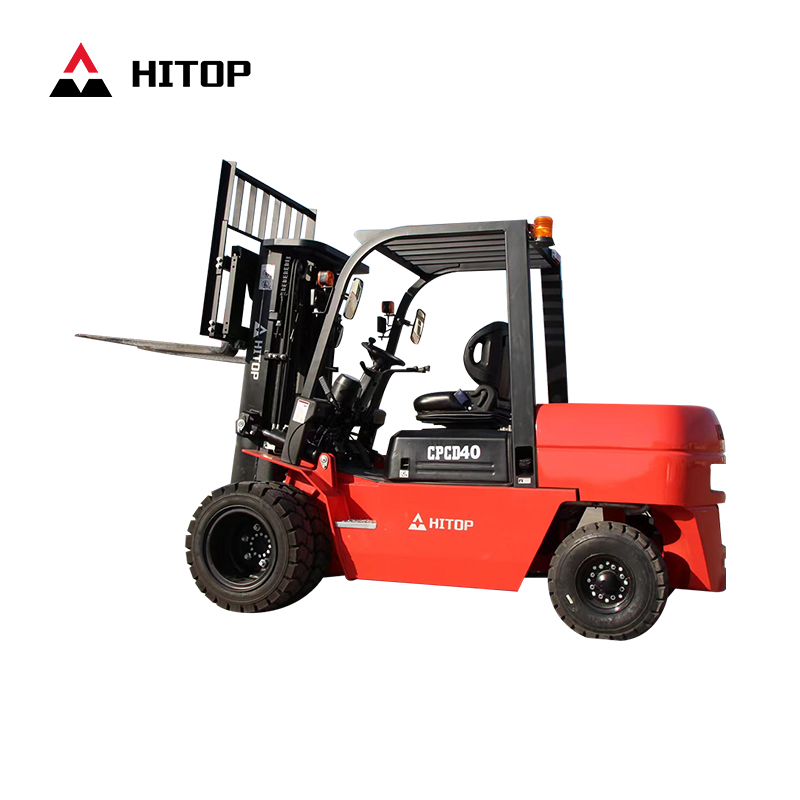

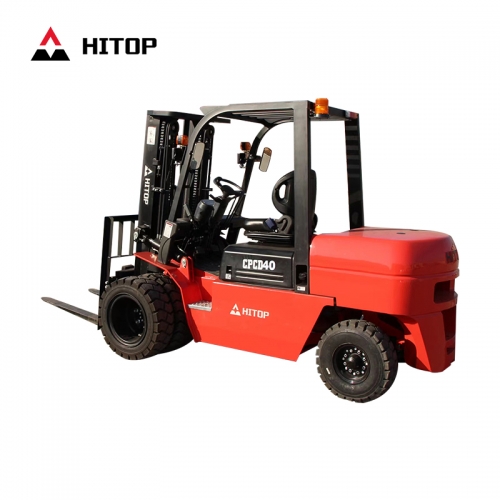

Diesel Forklift CPCD40

Item No.: CPCD40
Diesel Forklift CPCD40
  • Rated Lifting Capacity4000kg
  • Lifting Height3m
  • Load Center500mm
  • Min. Truning Radius2720mm
  • Engine ModelChina Xinchai Diesel Engine
  • Rated Power36.8kw
  • More Less
    Description Review
    Description
    Product Features
    1. Powerful diesel engine Xinchai (optional ISUZU, Yanmar, etc.)
    2. Hydraulic transmission
    3. LED warning light and rear right
    4. Safe overhead guard
    5. Wider and better view mast
    6. Comfortable seat with safety belt & steady bar for arm


    Product Specifications
    MODEL CPCD40
    Load capacity  kg 4000
    Load center  mm 500
    Power type
    Max. lifting speeds(with load)  mm/s 300
    Max. driving speeds(with/without load)  km/h 18/20
    Max towing (with/without load)  Kn 16.5/11.5
    Grade ability(with/without load)  % 15/20
    Lifting height (H1)  mm 3000
    Free lift  mm 80
    Tilting angles (forward α-backward β)  ° 6/12
    Min. turning radius  mm 2720
    Min. Right angle aisle width  mm 2320
    Min. under-clearance   mm 135
    Dimensions         Overall length(including fork) (A)   mm 4100
    Overall width (B)   mm 1230
    Overall height(mast lowered) (H)   mm 2110
    Overall height(mast extended) (H2)   mm 4270
    Overall height to overhead guard (H3)   mm 2110
    Fork overhang (A1)   mm 470
    Wheel base (A2)   mm 1900
    Tread Front tread (B1 )   mm 1060
    Rear tread (B2)   mm 970
    Tire Front tire 250-15
    Rear tire 6.50-10
    Total weight kg 4900
    B3 Fork width (B3)  mm 150
    H4 Fork thickness (H4)  mm 45
    Backrest height  mm 1225
    A3 Fork length (A3)  mm 1220
    Engine Engine model Euro II / Euro III
    Rated power Kw 36.8
    Rotate speed at rated power rpm 2500
    Max. Torque Nm 185
    Rotate speed at max. Torque  rpm     1800
    Note
    Transmission system Manual Hydraulic
