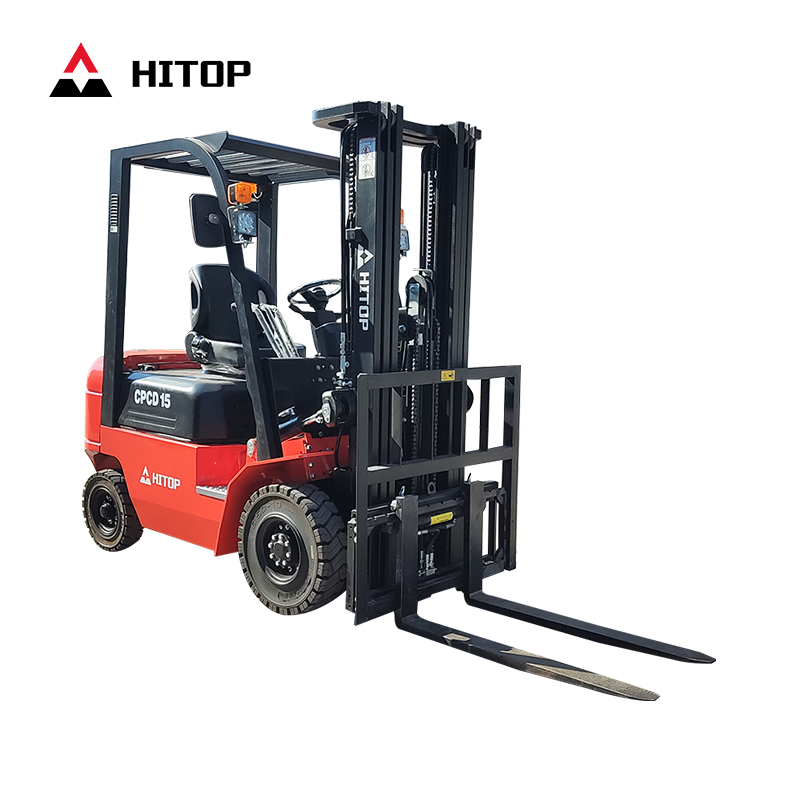

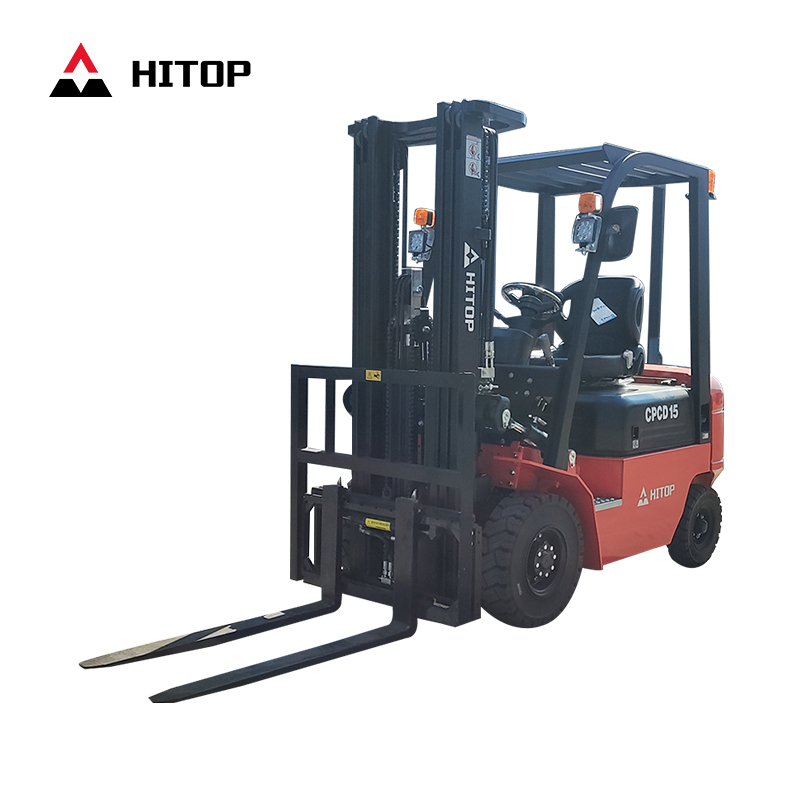

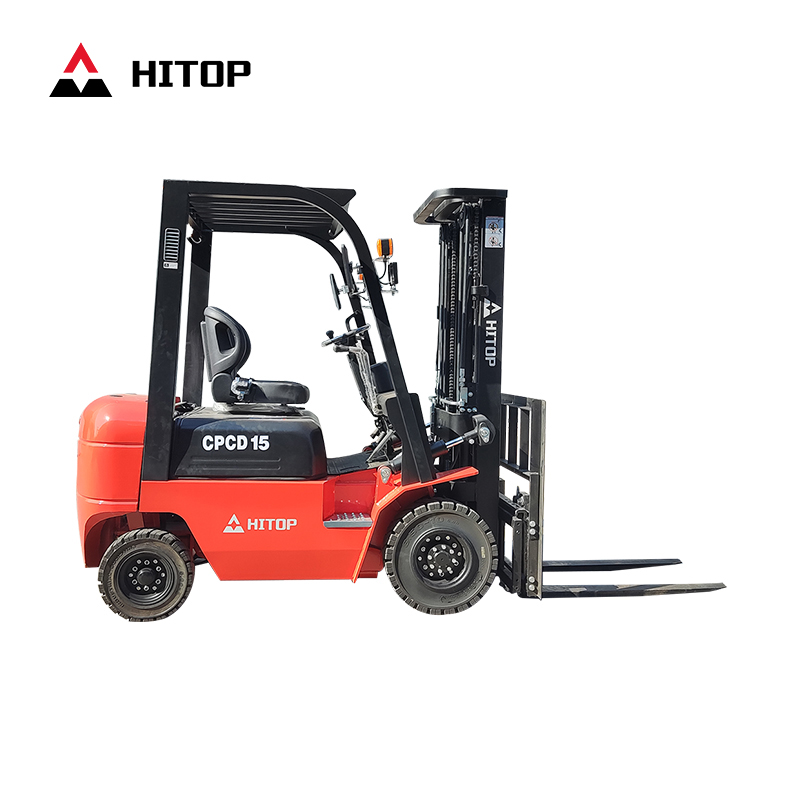

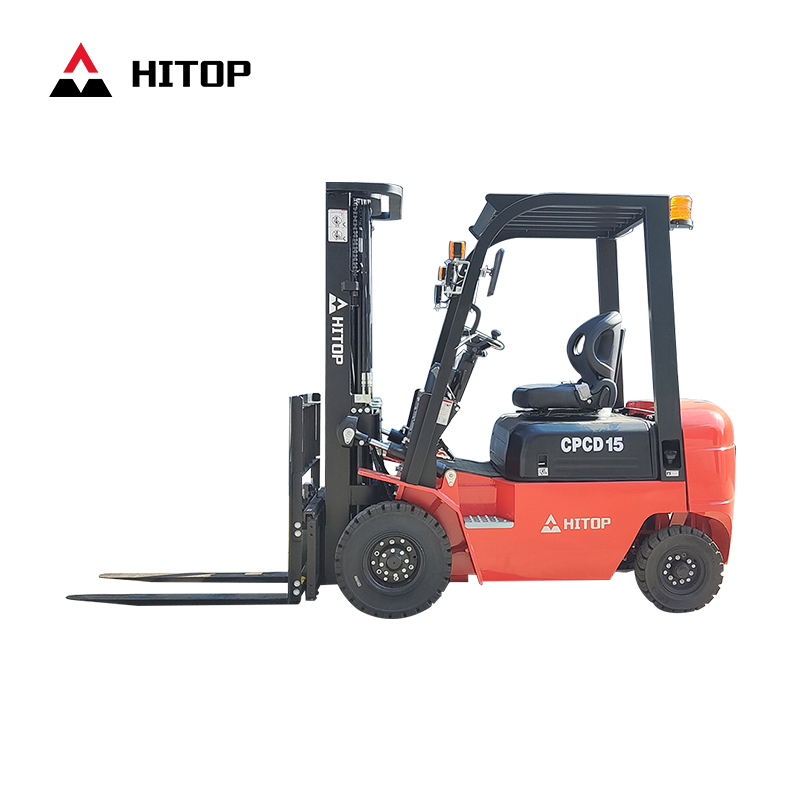

| MODEL | CPCD15 | ||
| Load capacity kg | 1500 | ||
| Load center mm | 500 | ||
| Power type | Diesel | ||
| Max. lifting speeds(with load) mm/s | 500 | ||
| Max. driving speeds(with/without load) km/h | 14.5/15 | ||
| Max towing (with/without load) Kn | 14.4/8.4 | ||
| Grade ability(with/without load) % | 15/20 | ||
| Lifting height (H1) mm | 3000 | ||
| Free lift mm | 70 | ||
| Tilting angles (forward α-backward β) ° | 6/12 | ||
| Min. turning radius mm | 2200 | ||
| Min. Right angle aisle width mm | 1770 | ||
| Min. under-clearance mm | 95 | ||
| Dimensions | Overall length(including fork) (A) mm | 3195 | |
| Overall width (B) mm | 1085 | ||
| Overall height(mast lowered) (H) mm | 1995 | ||
| Overall height(mast extended) (H2) mm | 4030 | ||
| Overall height to overhead guard (H3) mm | 2085 | ||
| Fork overhang (A1) mm | 430 | ||
| Wheel base (A2) mm | 1450 | ||
| Tread | Front tread (B1 ) mm | 890 | |
| Rear tread (B2) mm | 920 | ||
| Tire | Front tire | 6.50-10-10 | |
| Rear tire | 5.00-8-10 | ||
| Total weight kg | 2650 | ||
| B3 Fork width (B3) mm | 100 | ||
| H4 Fork thickness (H4) mm | 35 | ||
| Backrest height mm | 1000 | ||
| A3 Fork length (A3) mm | 920 | ||
| Engine | Engine model | Euro II / Euro III | |
| Rated power Kw | 32 | ||
| Rotate speed at rated power rpm | 2600 | ||
| Max. Torque Nm | 135 | ||
| Rotate speed at max. Torque rpm | 1800 | ||
| Note | Optional: China Quanchuai, Xichai, Japan ISUZU, Yanmar engine and so on. | ||
| Transmission system | Manual | Hydraulic | |
