MODEL |

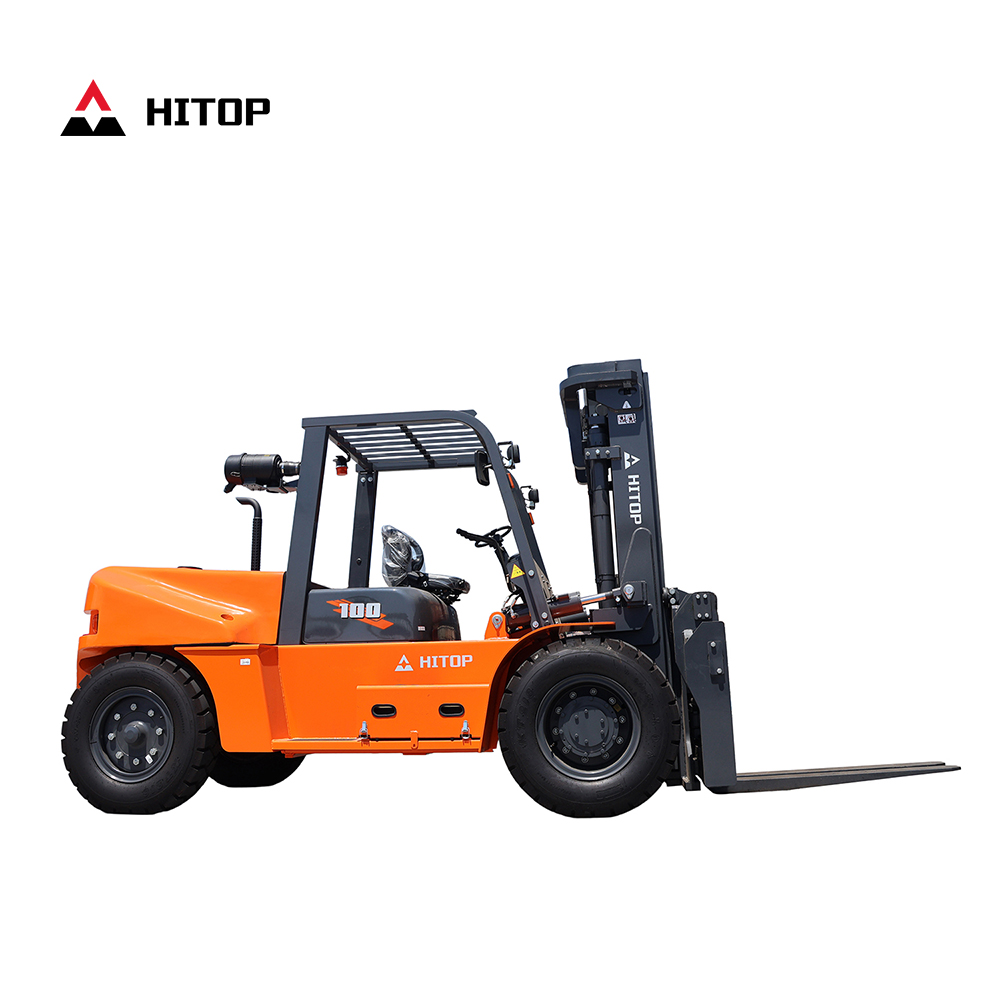

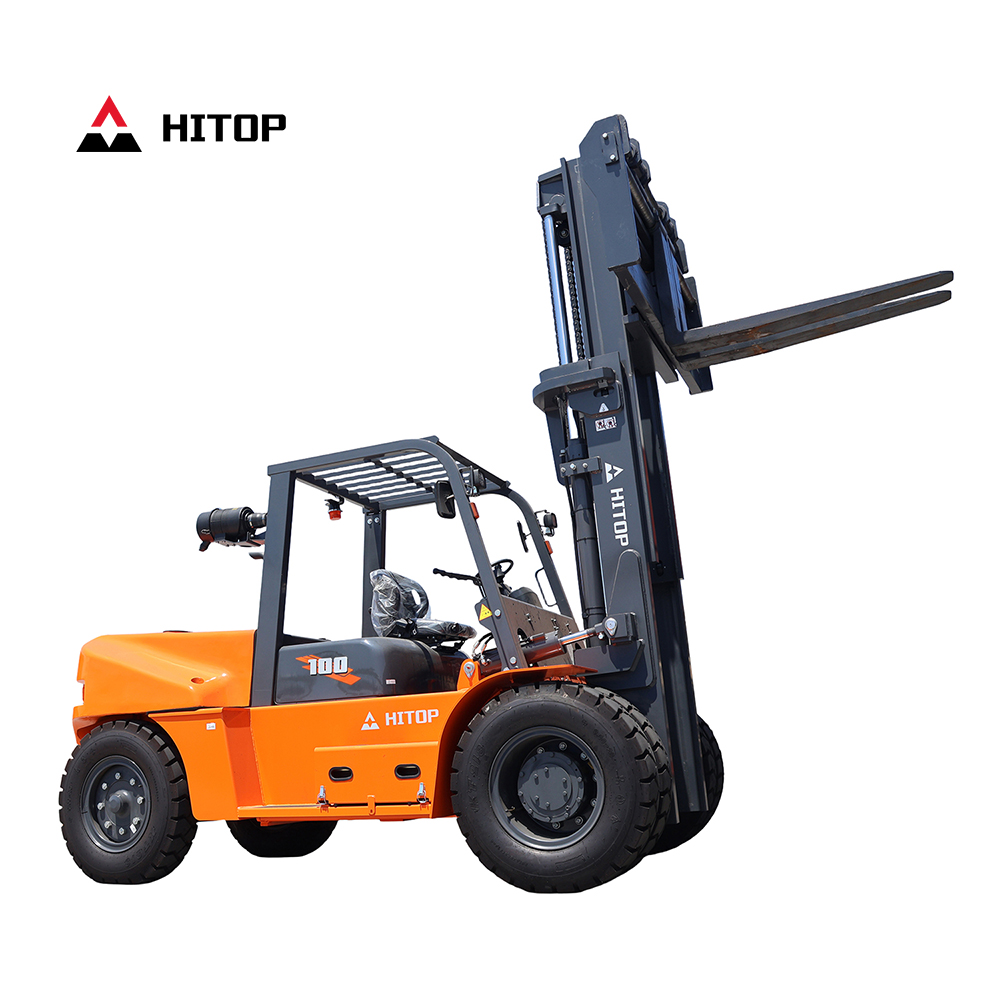

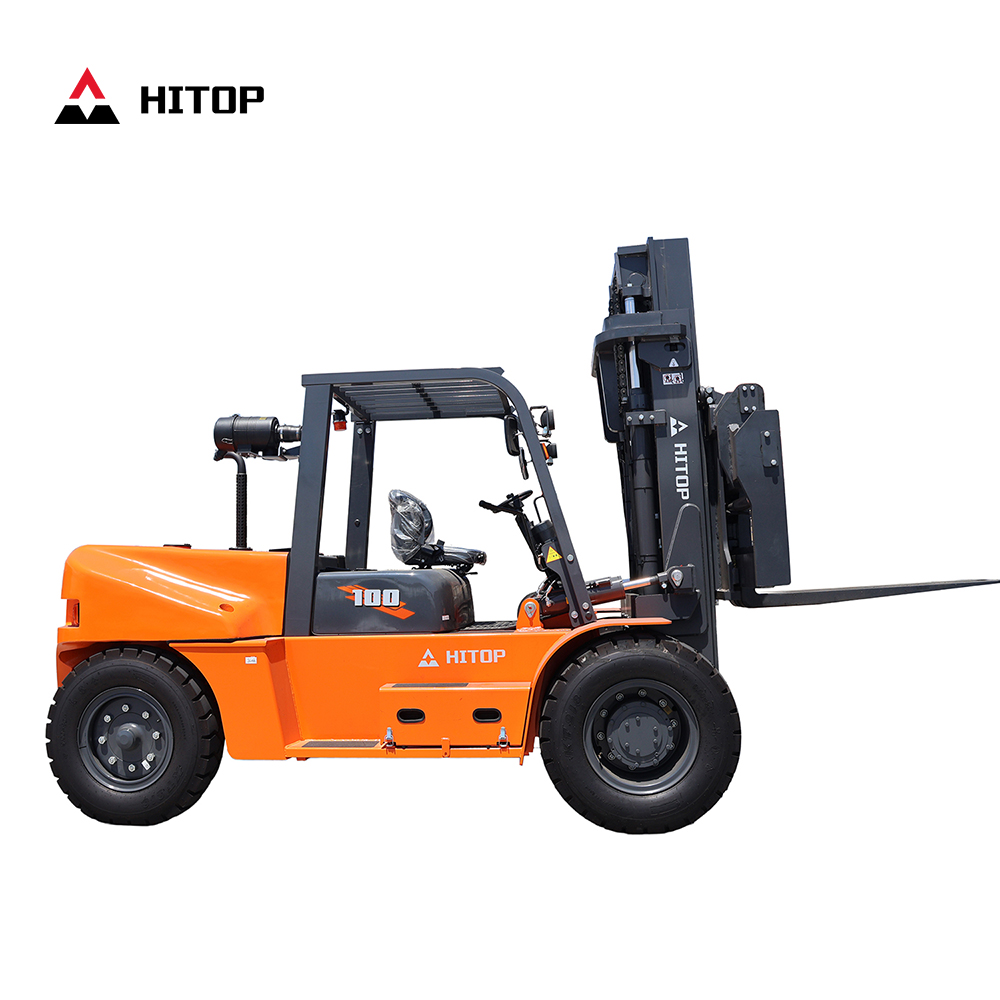

CPCD100 |
Load capacity kg |
10000 |
Load center mm |
600 |
Power type |
|
Max. lifting speeds(with load) mm/s |
310 |
Max. driving speeds(with/without load) km/h |
16/22 |
Max towing (with/without load) Kn |
58 |
Grade ability(with/without load) % |
19/20 |
H1 Lifting height (H1) mm |
3000 |
Free lift mm |
150 |
Tilting angles (forward α-backward β) ° |
6/12 |
Min. turning radius mm |
4000 |
Min. Right angle aisle width mm |
3540 |
Min. under-clearance mm |
250 |
Dimensions |
Overall length(including fork) (A) mm |
5500 |
Overall width (B) mm |
2275 |
Overall height(mast lowered) (H) mm |
2850 |
Overall height(mast extended) (H2) mm |
4300 |
Overall height to overhead guard (H3) mm |
2585 |
A1 Fork overhang (A1) mm |
720 |
A2 Wheel base (A2) mm |
2800 |
Tread |
Front tread (B1 ) mm |
1600 |
Rear tread (B2 ) mm |
1700 |
Tire |
Front tire |
9.00-20-14 |
Rear tire |
9.00-20-14 |
Total weight kg |
12510 |
B3 Fork width (B3) mm |
175 |
H4 Fork thickness (H4) mm |
80 |
Backrest height mm |
1015 |
A3 Fork length (A3) mm |
1220 |
Engine |
Engine model |
Euro II / EURO II |
Rated power Kw |
85 |
Rotate speed at rated power rpm |
2200 |
Max. Torque Nm |
450 |
Rotate speed at max. Torque rpm |
1400-1800 |
Note |
|
Transmission system |
Hydraulic |
