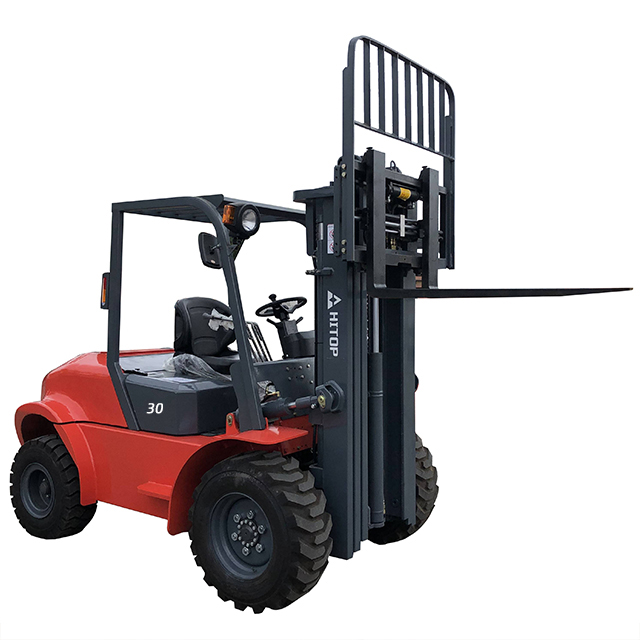

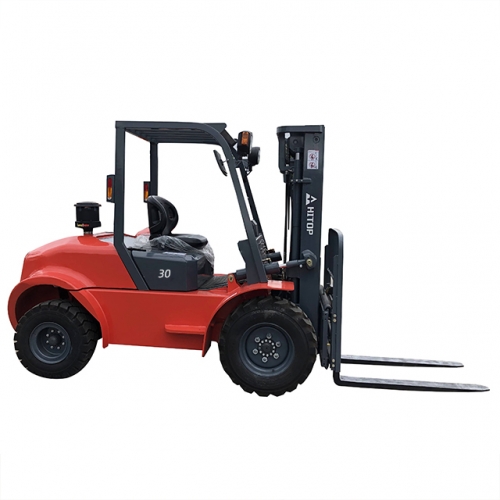

Hitop 3Ton Rough Terrain Forklift | |||||||
Model | CPCD30R | ||||||
Feature | Power | Diesel | |||||
Rated load | Kg | 3000 | |||||
Load center | mm | 500 | |||||
Standard lifting height | mm | 3000 | |||||
Mast tilt angle | Deg | 5°/15° | |||||
Front overhang | mm | 545 | |||||
Wheel base | mm | 1850 | |||||
Wheel base (front/rear) | mm | 1250/1205 | |||||
Performance | Driving brake | Hydraulic pedal | |||||
Paking brake | Mechanical manual | ||||||
Lifting speed(Full load) | mm/s | 450 | |||||
Lower speed | mm/s | full load<600,without full load>300 | |||||
Driving speed(unload) | Km/h | 23 | |||||
Max.grade ability(Full load) | % | 17 | |||||
Power and transmission | Engine | Model | 498BT1 | ||||
Manufacturer | xinchai | ||||||
Rated power | Kw/r | 42/2650 | |||||
Max. torque | Nm/r | 174/1800 | |||||
Fuel tank capacity | L | 2.98 | |||||
Battery | Voltage | V | 12 | ||||
Battery capacity | Ah | 80 | |||||
Transmission | Transmission system | Hydraulic | |||||
Gear(front/rear) | Ⅰ/Ⅰ | ||||||
Tyre | Type | Pneumatic Tyre | |||||
model | front | 12-16.5-14PR | |||||
rear | 27x10-12-12PR | ||||||
Others | Service Weight | Kg | 4600 | ||||
Fork | Installation level | ⅢB | |||||
Thickness x Width x Length | mm | 45x122x1070 | |||||
Dimension | Overall Length) | mm | 2960 | ||||
Overall Width | mm | 1550 | |||||
Overall Height | Overall Height (Mast extend) |
mm | 4730 | ||||
Overall Height (Mast lowered) |
mm | 2350 | |||||
Overall Height to overhead guard |
mm | 2210 | |||||
Min. turning radius | mm | 2910 | |||||
Min. ground clearance | Mast | mm | 220 | ||||
Midpoint of the wheelbase | mm | 310 |
